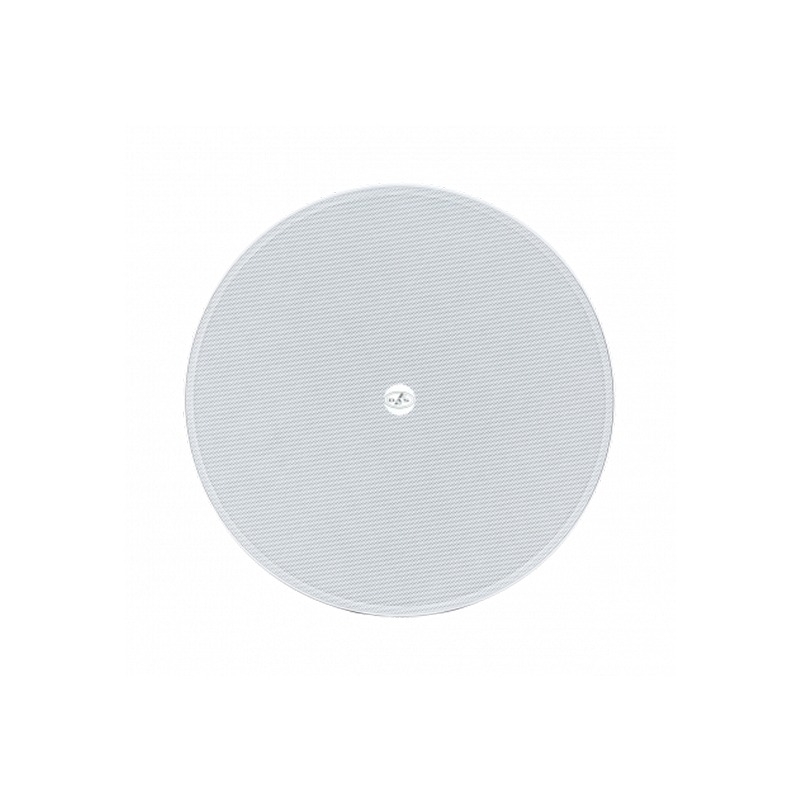

DECO-6-T - 6″ Ceiling Mount Loudspeaker

Product Description

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

Technical Specifications:

Performance

• Frequency Range (-10 dB): 60 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 95º
• Nominal Impedance: 8 ohms
• Transformer Taps 70 V: Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
• Transformer Taps 100 V: Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
• On-axis Sensitivity 1W/1 m: 90 dB SPL
• Recommended Amplifier: INTEGRAL-A402 | INTEGRAL-A404

Connectors

• Audio Input Connector: Spring Terminals
• Audio Output Connector: Spring Terminals

Enclosure

• Enclosure Geometry: Round
• Color: White
• Cut Out Diameter: 210 mm (8,3 in)
• Depth 80 mm (3,2 in)
• Dimensions ( H x W x D ): 230 x 230 x 80 mm | 9,0 x 9,0 x 3,2 in
• Net Weight: 1,4 kg ( 3,1 lb )

Shipping

• Carton Dimensions ( H x W x D ): 270 x 250 x 390 mm | 10,6 x 9,8 x 15,4 in
• Shipping Weight: 1,5 kg ( 3,3 lb )
