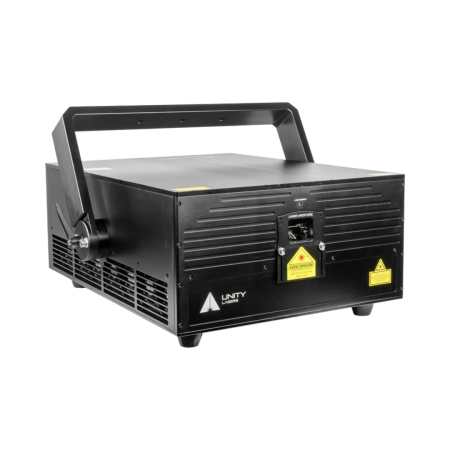

ELITE 120 PRO FB4 - 120 Watts Full Color RGB Diode-based Laser Projector

Product Description

Technical Specifications:

• Product Name: Unity ELITE 120 PRO
• Type Of Laser: Full-colour, Semiconductor diode laser system
• Guaranteed Optical Output: >120W
• Suitable For: Lighting professionals: Lighting professionals: Stadiums, arenas. Huge outdoor shows. City scape and landmark projections (visibility for kilometers away)
• System Control: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
• Scanning System: 25kpps @ 8°
• Scan Angle: 40°
• Safety: Fully complies with the latest EN 60825-1 and FDA regulations
• Weight: 58kg
• Package Includes: Laser projector w/ FB4 DMX, IP65 housing, heavy duty flight case, Estop box, Estop cable (10M), ethernet cable (10M), power cable (1.5M), interlock, keys, outdoor RJ45 connectors, manual, quickstart guide, variance card
• R | G | B [mW]: 30,000 | 40,000 | 50,000
• Beam Size [mm]: 7.5 x 7.5
• Beam Divergence: <1.2mrad [Full Angle]
• Modulation: Analog 100kHz
• Power Requirements: 100-240V/50-60Hz
• Consumption: Max. 1600W
• Operation Temperature: -10°C to 45 °C
• Ingress Rating: IP 65
• System Features: All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in, DMX in/out, Estop in/out
• Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
• Notice: *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
• Dimensions [mm]: Length: 705 | Width: 576 | Height: 273
