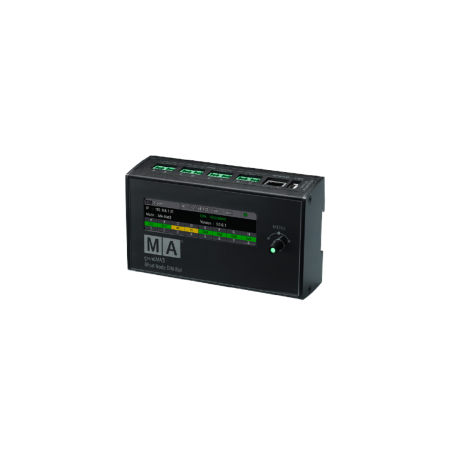

MA Lighting grandMA3 onPC 8Port Node DIN-Rail 4k

grandMA3 onPC 8Port Node DIN-Rail 4k

grandMA3 onPC 8Port Node DIN-Rail 4k

The grandMA3 onPC 8Port Node DIN-Rail 4k offers a convenient DIN-Rail mounting solution, saving time and effort during installation. It supports PoE (Power over Ethernet), eliminating the need for additional power cabling. This node provides 8 DMX outputs as 3-pin PCB connectors and enables up to 4,096 parameters, the maximum capacity for the grandMA3 onPC system.

SKU: 4023581 Categories: grandMA3, Lighting Control Brand: MA Lighting

Product Description

Technical Specifications

PARAMETERS

4096(HTP/LTP)

PARAMETERS MODE2

2048(HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

AC 100 – 240 V; 50/60 Hz | PoE (IEEE 802.3af; 48 V DC/max. 12 W

POWER

max. 15 VA

OPERATING TEMPERATURE

-10 °C up to 50 °C

DIMENSIONS

150 x 50 x 90 mm (width x depth x height)

NET WEIGHT

1 kg

CONNECTORS

1 x Power (3pin PCB connector)
1 x etherCON/RJ45
8 x DMX512-A Out (3pin PCB connector)
1 x USB 2.0 (type A)

Additional information

Weight	1.38 kg
Dimensions	0.0 × 0.0 × 0.0 cm
