MA Lighting grandMA3 onPC command wing XT

Product Description

Features

• onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC software – pre-installed on a built-in MA motherboard
• Command section same as grandMA3 onPC command wing
• 29 rotary RGB backlit encoder
• 5 dual encoders
• 10 motorized 60 mm faders
• 40 separate playbacks
• 16 assignable x-keys
• 2 motorized A/B faders 100mm
• 1 Level-Wheel
• Individually backlit and dimmable silent (clickless) keys


Technical Specifications

PARAMETERS

• 4096 (HTP/LTP)

PARAMETERS MODE2

• Not Applicable (no Mode2)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 100 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

•  620 x 427 x 112 mm (width x depth x height)

NET WEIGHT

• 12 kg

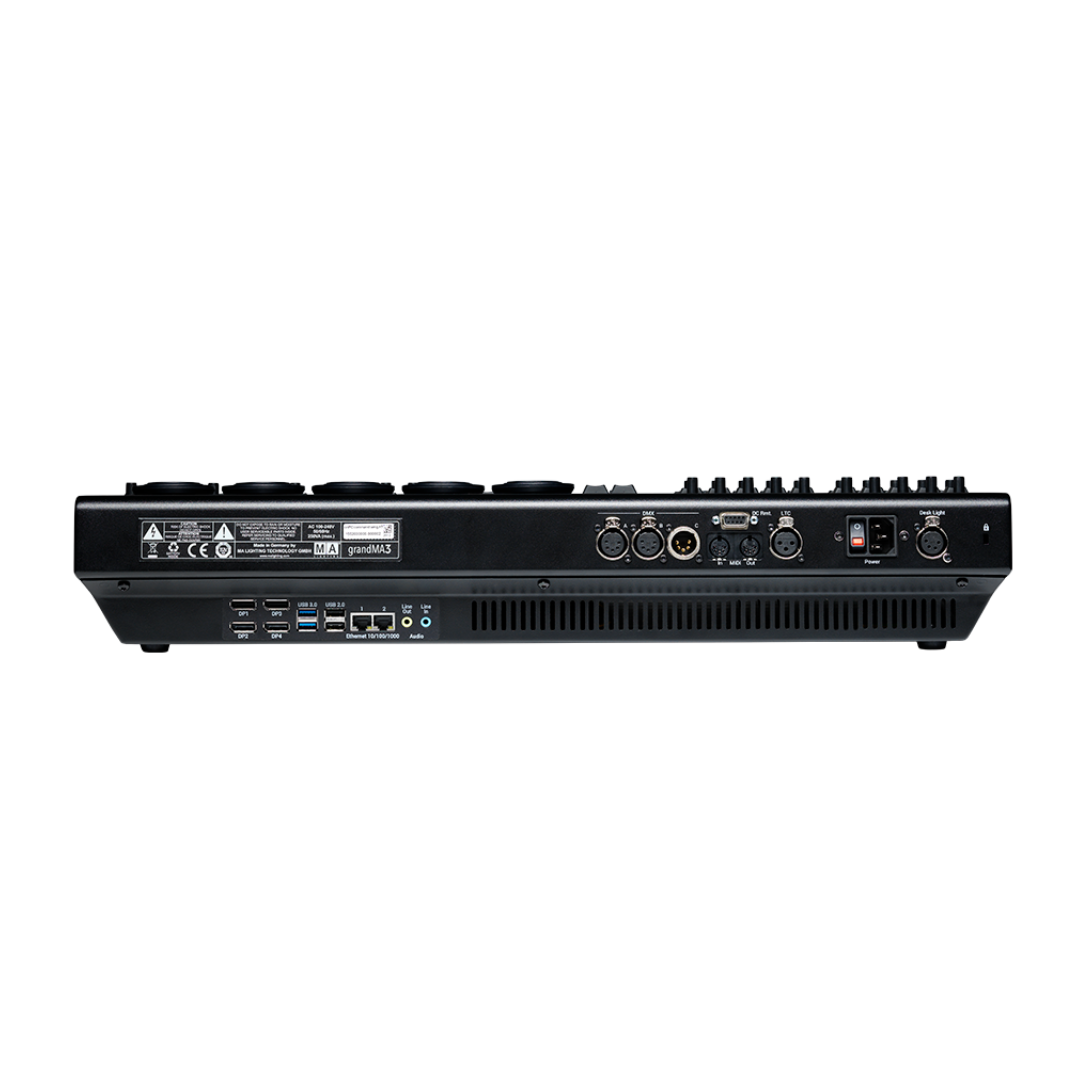

CONNECTORS

•  1 x IEC-60320 C14 cord
• 2 x RJ45
• 2 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (mini jack 3.5mm)
• 1 x Audio Out (mini jack 3.5mm)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 4 x DisplayPort 1.2 for external screens
• 2 x USB 2.0 (type A)
• 2 x USB 3.0 (type A)
• 1 x LED desk light (4pin XLR female)
