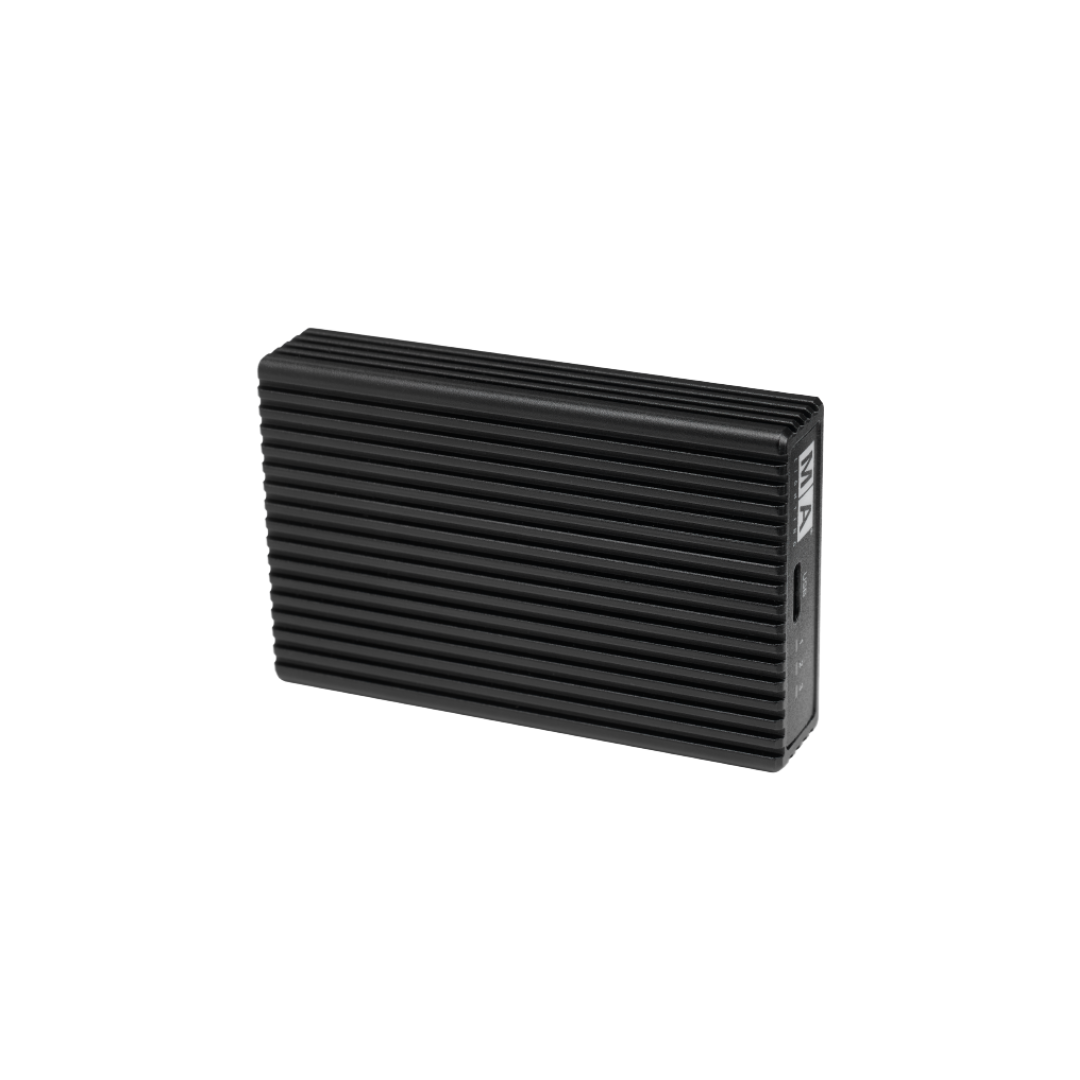

MA Lighting grandMA3 viz-key

Product Description

The grandMA3 viz-key is a versatile tool for visualization, requiring just one key per visualization computer. It supports various third-party visualization software, eliminating the need for specific dongles. Additionally, the viz-key offers 512 onboard DMX parameters over Ethernet, enabling simple real-world fixture tests.

To maintain activation, the grandMA3 viz-key requires an internet connection to the MA Worldserver every 10 days. This connection is automatically established when the grandMA3 onPC software or any other visualization software is launched. For more information on supported third-party visualization software and the grandMA3 viz-key, please refer to the provided links.

How to connect:

Make sure all devices are in the same network and have matching IP addresses (e.g. 192.168.1.x)

Start the visualization tool and enable MA-Net connectivity (see manual of the tool)

Start grandMA3 software and go to Network to see the visualization tool under “NetworkNode”

Invite the visualization tool to your grandMA3 session (both show files must match)

If the software versions are not matching, update the visualization software via grandMA3 Menu/Settings/Software Update

Technical Specifications

PARAMETERS

• 512

PARAMETERS MODE2

•  not applicable (no Mode2)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

•  USB powered (5 V DC)

POWER

•  —

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

•  80 x 51 x 17 mm (width x depth x height)

NET WEIGHT

• 0.1 kg

CONNECTORS

• 1 x USB 2.0 (type C)
