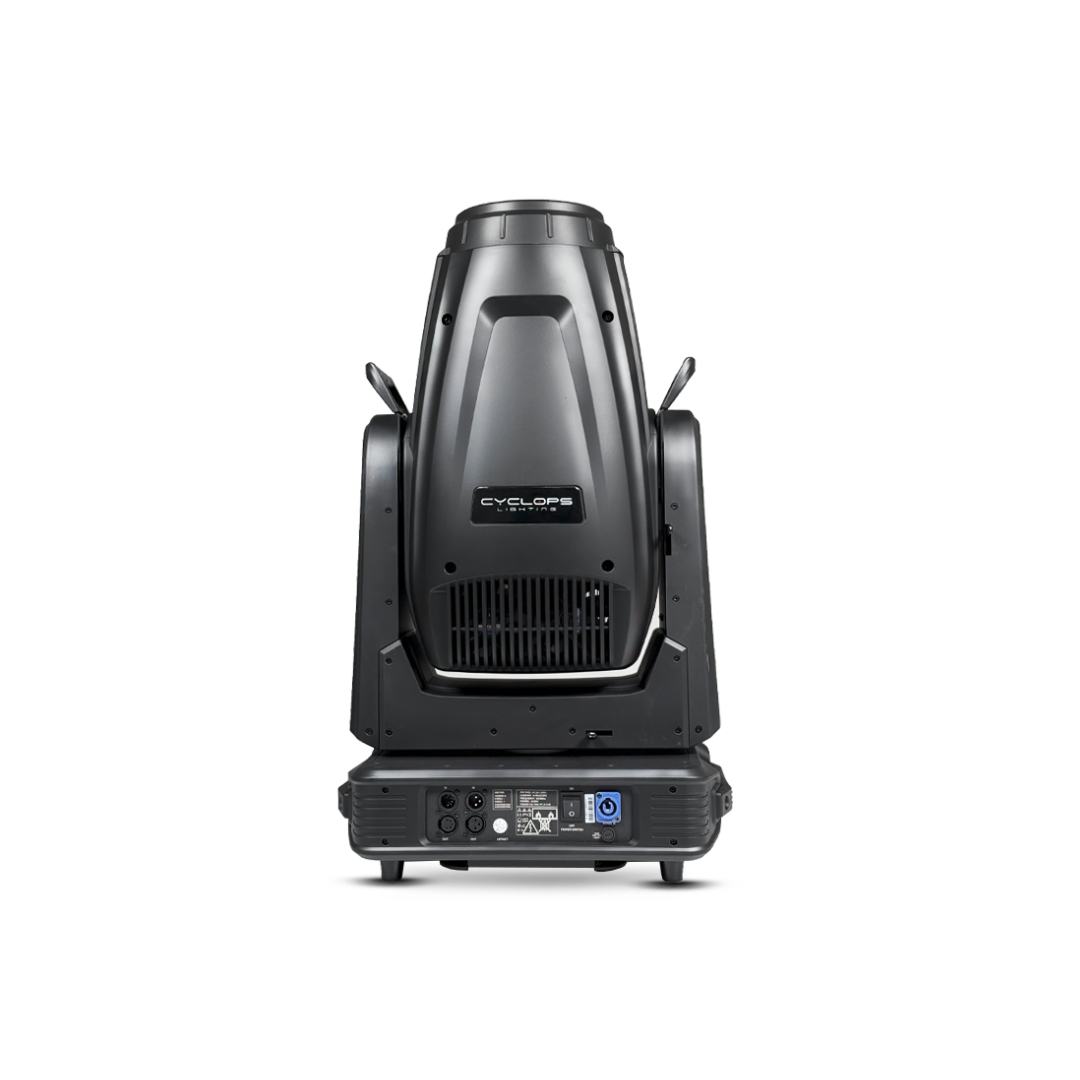

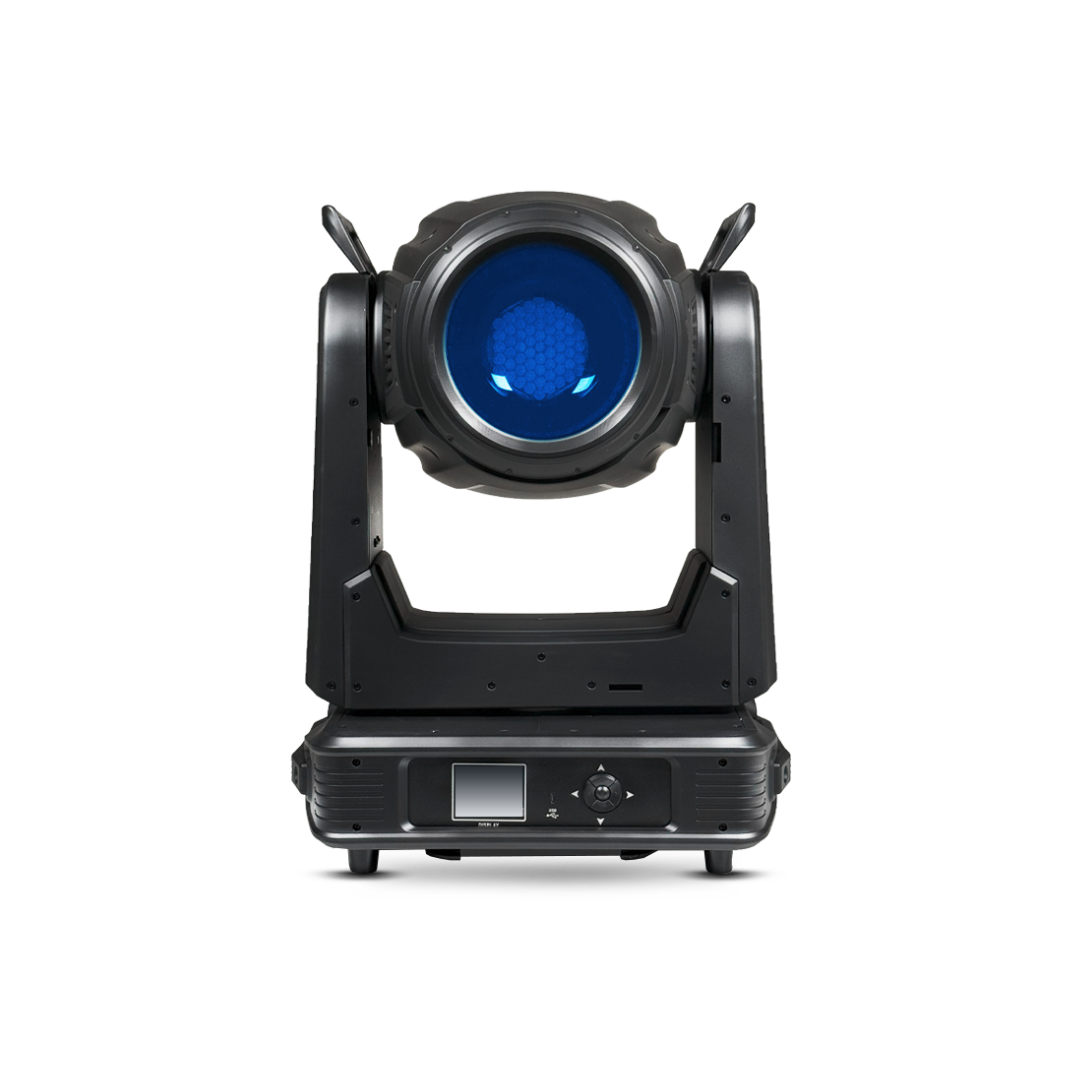

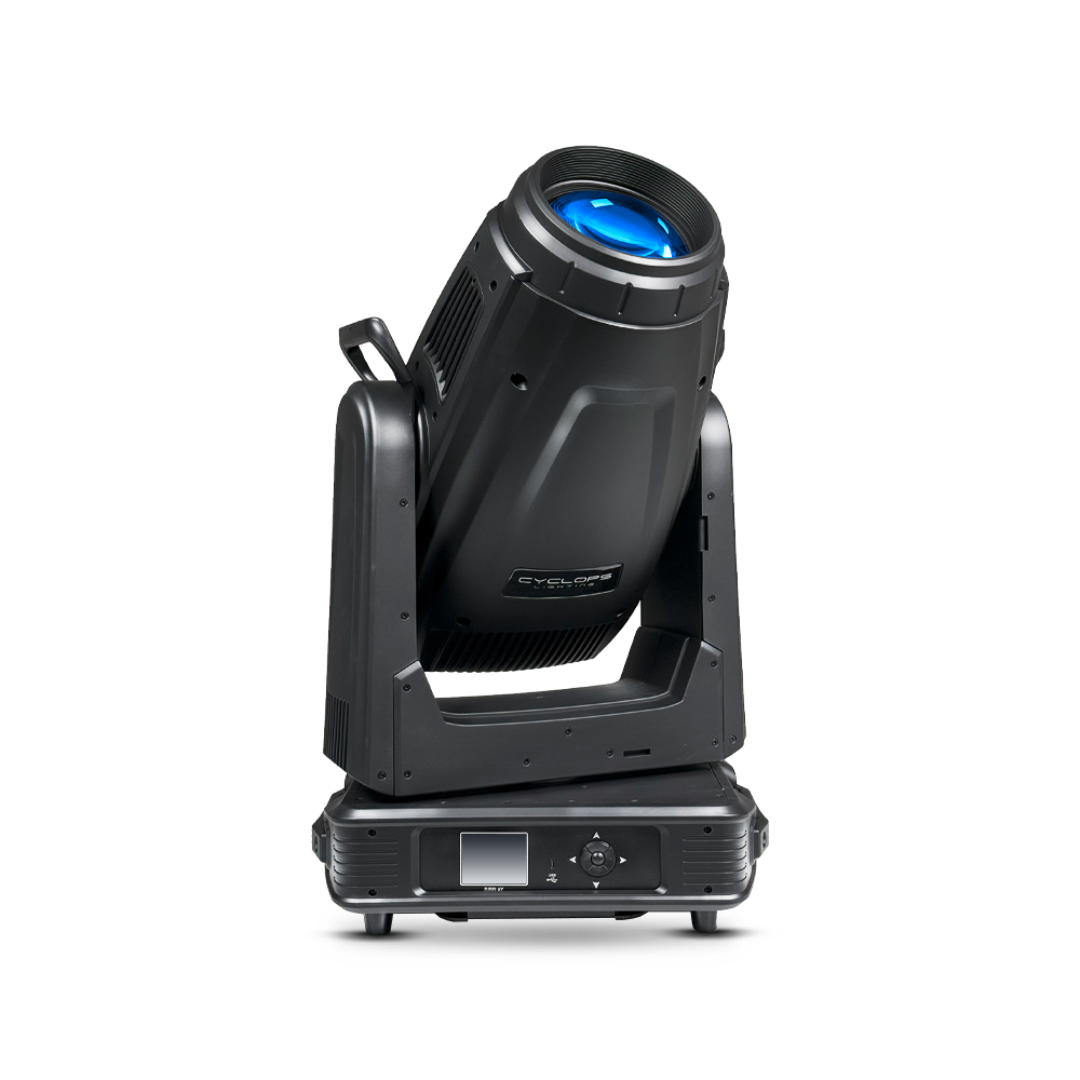

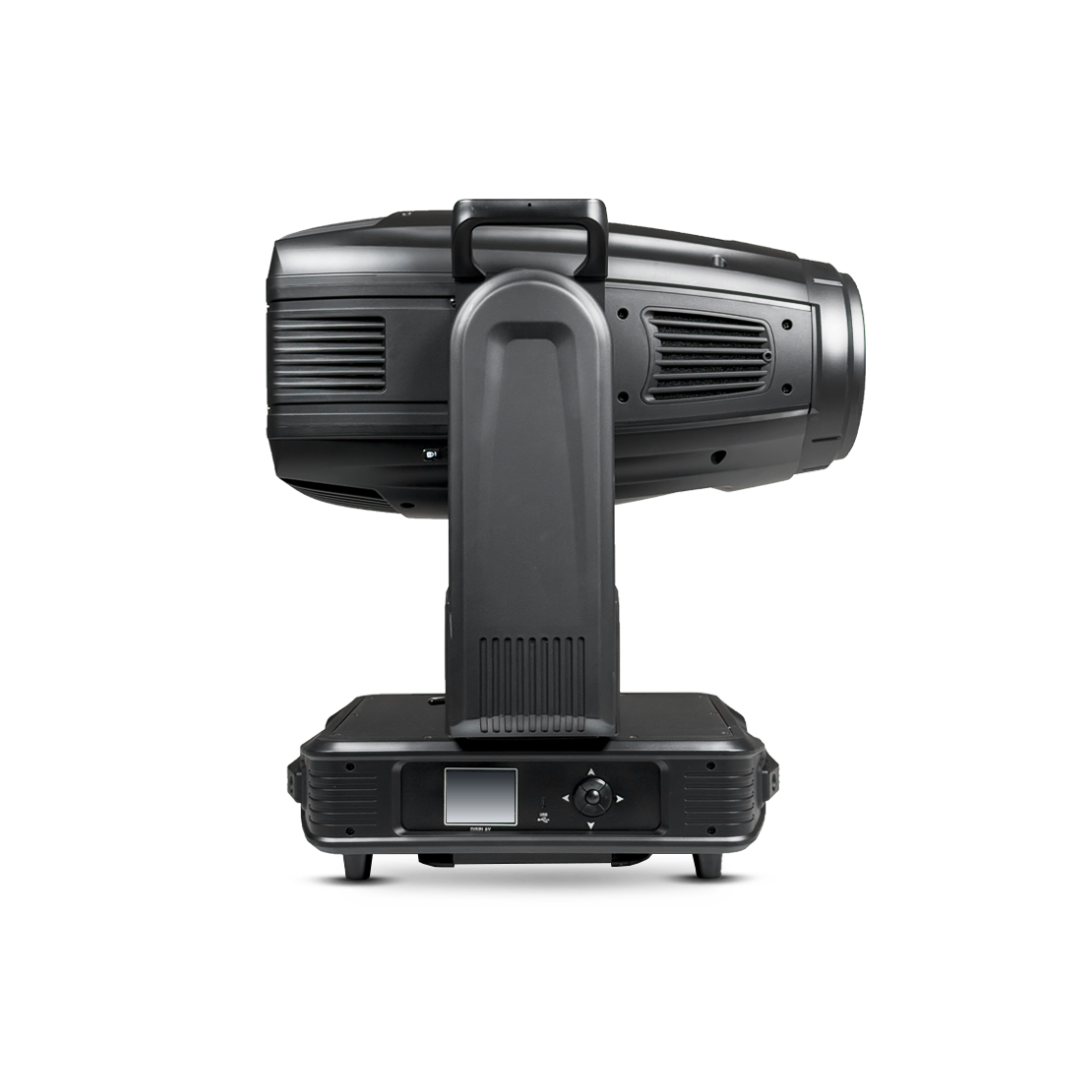

ILLUMA 1000P - 1000 Watts LED Moving Head Profile

Product Description

SOURCE

• Light source: 1000W LED white light module
• Color temperature: 8000K
• Output: 51000lm
• Illuminance at 10m: 22800 lx/spot of 1.02m, 800 lx/spot of 9.32m
• LED Life expectancy: 20,000 hours

OPTICAL SYSTEM

•  Beam angle: 7° to 53°
•  Four shutter blades, 180° rotatable
•  Electronic Focus
•  Iris
•  LED Frequency adjustment

DYNAMIC EFFECTS

• Dimmer: 0-100% linear adjustment
• Electronic Strobe
• Color mixing: CMY
• Color wheel: 6 colors + white
• CTO filter: 3200K to 6000K
• Static gobos: 9 gobos + open
• Rotating gobos: 6 gobos + open
• Rotating gobo size: OD= 29.9mm, ID=21mm
• Prism: 4 facets prism3 Frost levels

CONTROL & PROGRAMMING

• Control Protocols: DMX, RDM, Art-net, Auto
• Channel mode: 42, 49, 52 channels
• Quiet Fan Mode
• Display: 2.8-inch touch screen, can be reversed 180°

MOVEMENT

• Pan: 540°
• Tilt: 270°
• Resolution: 16Bit

ELECTRICAL

• Input voltage: AC110-240V/50-60Hz
• Power factor：PF≥0.95
• Power consumption: 1420W

PHYSICAL

• Dimensions: 435 x 300 x 785 mm
• Weight: 35 Kg
• IP Rating: 20
• Color: Black
