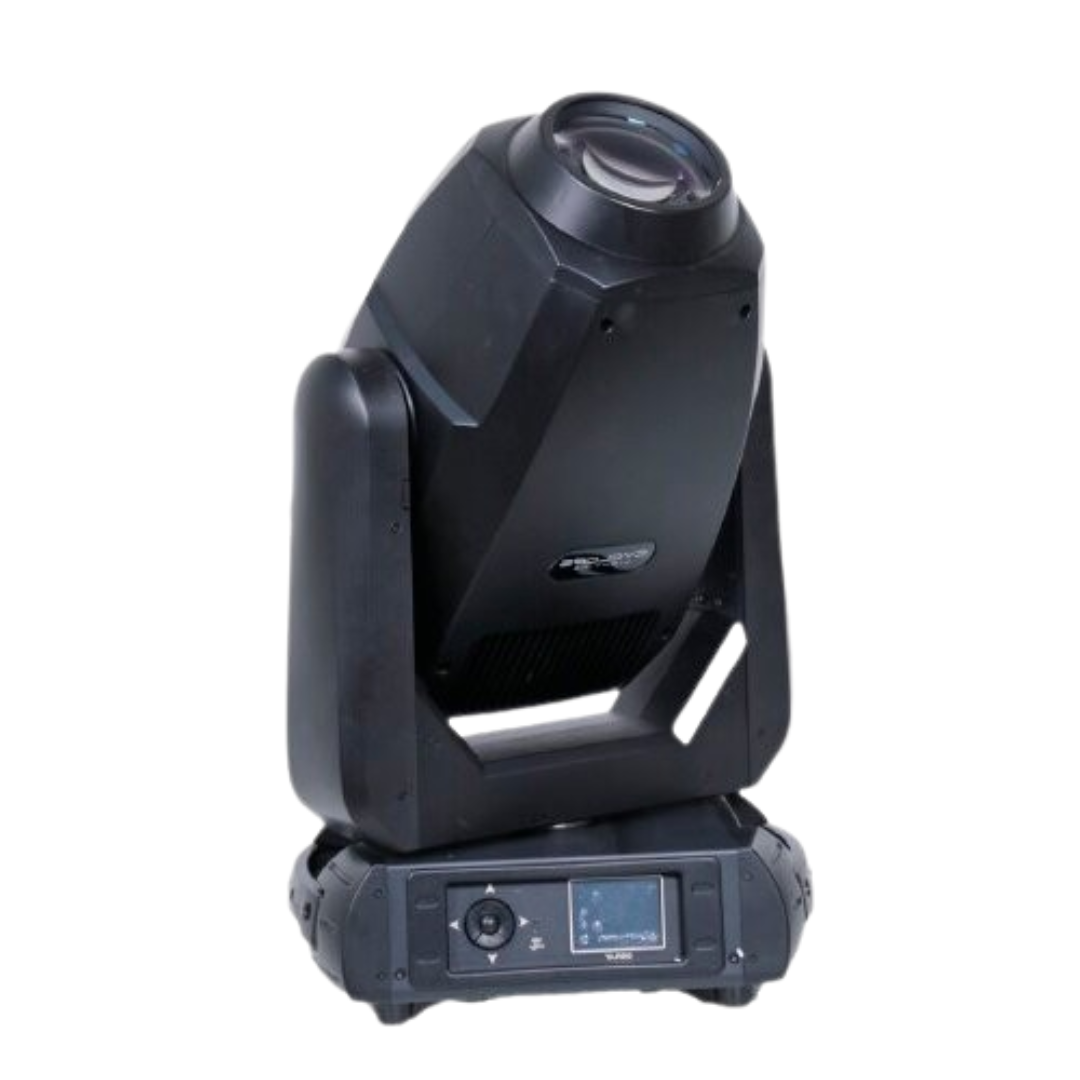

ILLUMA 500P - 500 Watts LED Moving Head Profile

Product Description

SOURCE

• Light source: 500W LED white light module
• Color temperature: 8000K
• Output: 20000 lm
• Illuminance at 10m: 14200 lx/spot of 1.03m
• LED Life expectancy: 20,000 hours

OPTICAL SYSTEM

• Beam angle: 6° to 40°
• Four shutter blades, 180° rotatable
• Electronic Focus
• Iris
• LED Frequency adjustment

DYNAMIC EFFECTS

• Dimmer: 0-100% linear adjustment
• Electronic Strobe
• Color mixing: CMY
• Color wheel: 6 colors + white
• CTO filter: 3200K to 6000K
• Static gobos: 9 gobos + open
• Rotating gobos: 7 gobos + open
• Rotating gobo size: OD= 23.9mm, ID=13mm
• Prism: 5 facets prism
• Frost
• High precision positioning system

CONTROL & PROGRAMMING

•  Control Protocols: DMX, RDM, Art-net, Auto
• Channel mode: 44, 45 channels
• Quiet Fan Mode
• Display: 2.8-inch touch screen, can be reversed 180°

MOVEMENT

• Pan: 540°
• Tilt: 270°
• Resolution: 16Bit

ELECTRICAL

• Input voltage: AC110-240V/50-60Hz
• Power factor：PF≥0.95
• Power consumption: 750W

PHYSICAL

• IP Rate: IP20
• Product size: 370 x 255 x 610mm
• Weight: 23.5 kg
