MA Lighting grandMA3 I/O Node DIN-Rail

Name: MA Lighting grandMA3 I/O Node DIN-Rail
SKU: 4023578

The grandMA3 I/O Node DIN-Rail is the multi-tool of signal distribution within a grandMA3 lighting control system, especially for fixed installations. Wherever the signal is generated or needed – just place a grandMA3 I/O Node DIN-Rail there and receive or send external signals. The display shows the status of all input and output signals. Just add the grandMA3 I/O Node DIN-Rail as a Session Member and it is ready to go.

Add to Quote

SKU: 4023578 Categories: grandMA3, Lighting Control Brand: MA Lighting

Product Description

Technical Specifications

Parameters:

None

Parameters Mode2:

None

Operating voltage/ Supply voltage:

AC 100 – 240 V; 50/60 Hz
PoE (IEEE 802.3af; 48 V DC/max. 12 W)

Power:

15 VA

Operating Temperature:

-10 °C up to 50 °C

Dimensions:

150 x 50 x 90 mm (width x depth x height)

Net weight:

1 kg

Connectors

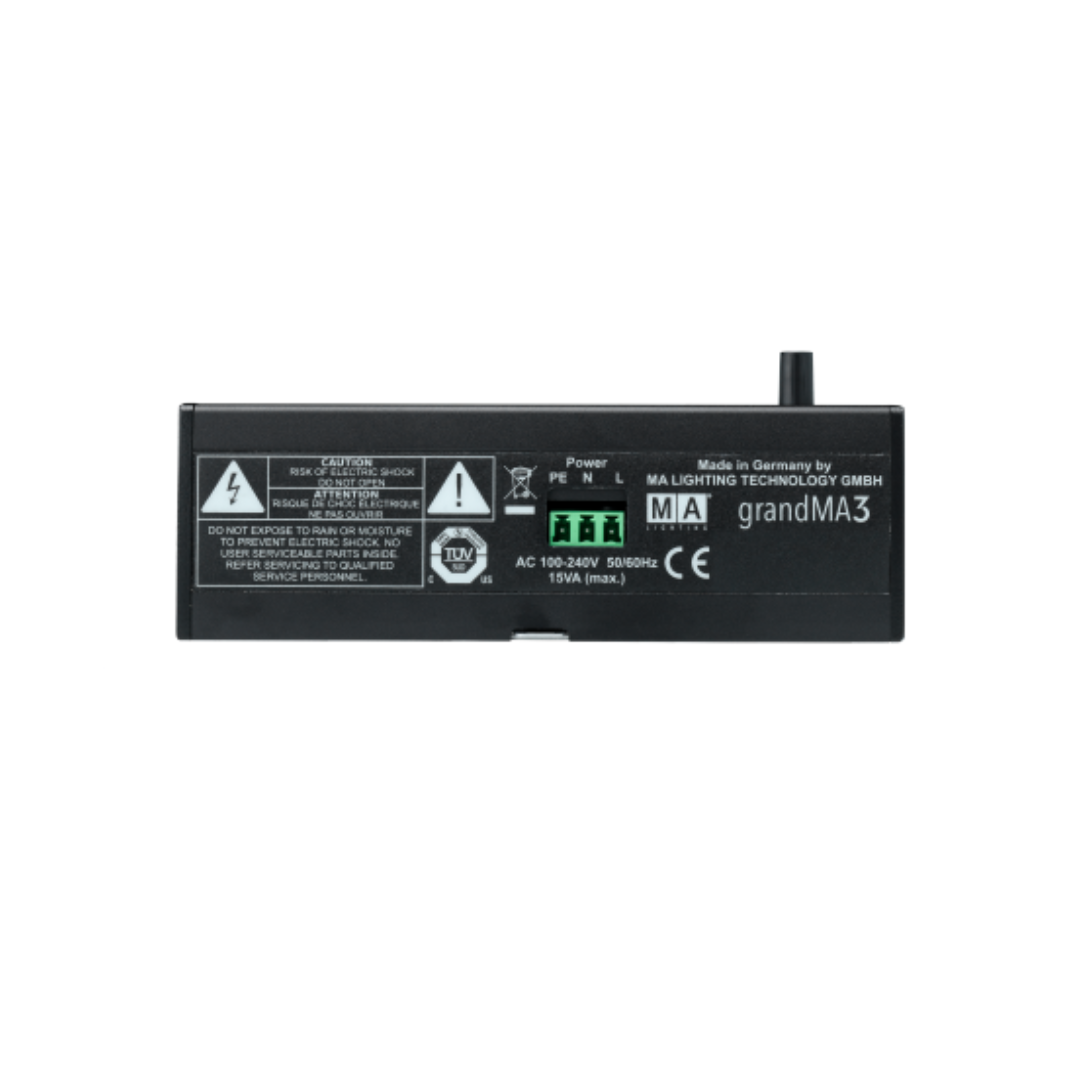

1 x Power (3pin PCB connector)
1 x Ethernet/RJ45
1 x MIDI In (3pin PCB connector)
1 x MIDI Out (3pin PCB connector)
1 x Linear Timecode (3pin PCB connector)
1 x GPI General Purpose Interface (3pin and 7pin PCB connector) for remote control
1 x USB 2.0 (type A)
