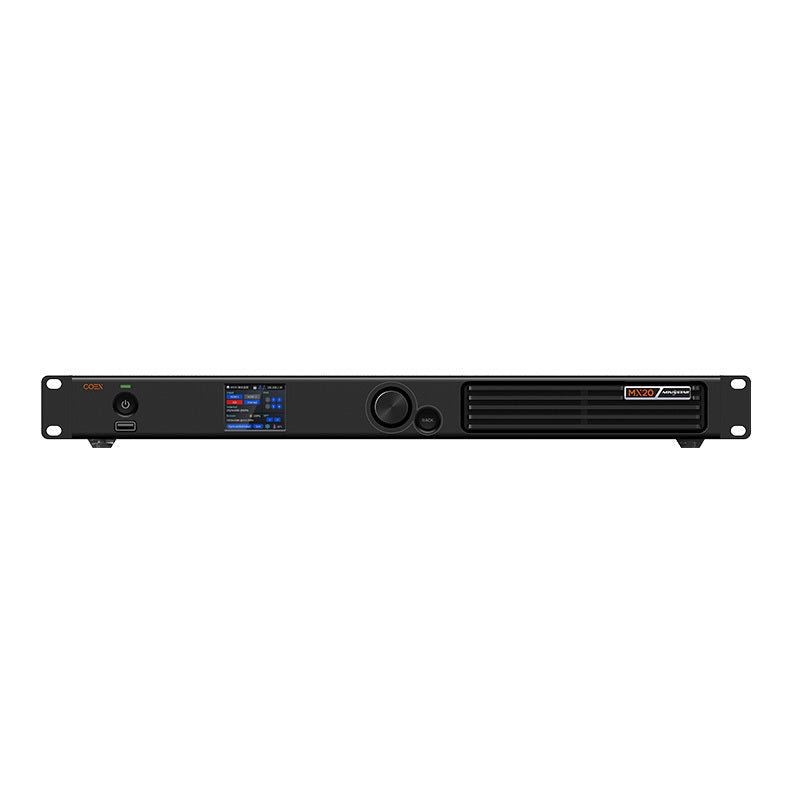

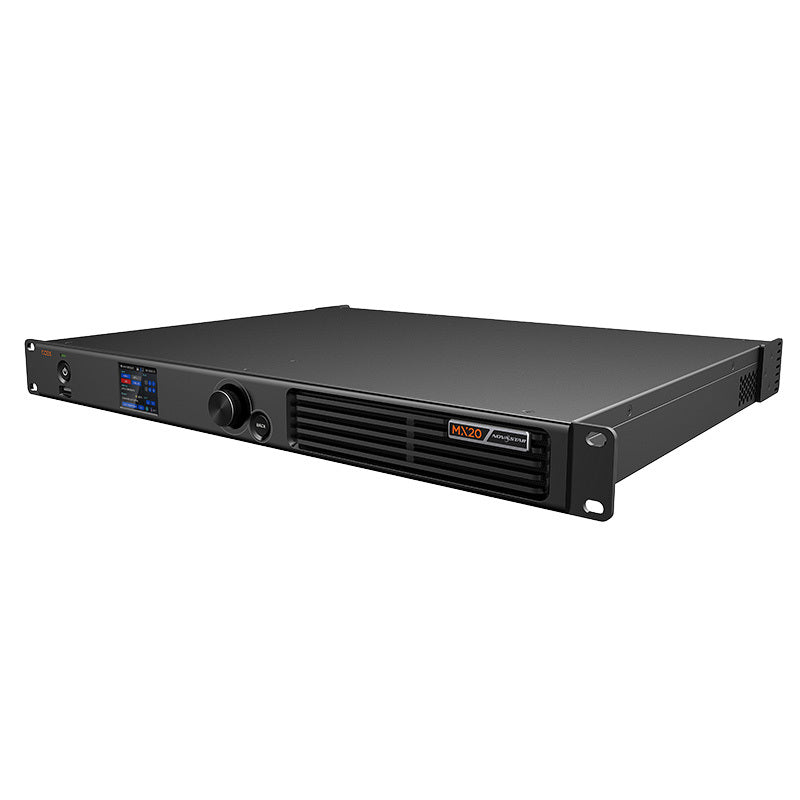

MX20 -All-in-one Controller

Product Description

Features
Inputs and Outputs

2 types of inputs:

• 2x HDMI 1.3 (with loop through)
• 1x 3G-SDI (with loop through)

10-bit and 8-bit video inputs

3 types of outputs:

• 6x Gigabit Ethernet ports, load capacity up to 3.9 million pixels
• 2x 10G optical ports
• 1x SPDIF digital audio port

3 types of controls:

• 1x Genlock signal input (with loop through)
• 2x Ethernet control ports
• 1x Auxiliary port

Specifications

Electrical Specifications

• Power input: 100-240V~, 50/60Hz, 2- 0.8A
• Maximum power consumption: 50 W

Operating Environment

• Temperature: –20ºC to +50ºC
• Humidity: 0% RH to 80% RH, non-condensing

Storage Environment

• Temperature: –30ºC to +80ºC
• Humidity: 0% RH to 95% RH, non-condensing

Physical Specifications

• Dimensions: 482.6 mm × 49.9 mm × 384.0 mm
• Net weight: 4.5 kg
• Gross weight: 8.1 kg (Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications).

Packing Information

• Packing box:  612.0 mm × 220.0 mm × 600.0 mm, kraft paper box
• Accessory box:  408.0 mm × 294.0 mm × 51.0 mm, white cardboard box Accessories

                -1x Power cord

                -1x Ethernet cable

                -1x HDMI cable

                -1x Certificate of Approval

IP Rating

• IP20 (Please prevent the product from water intrusion and do not wet or wash the product).
