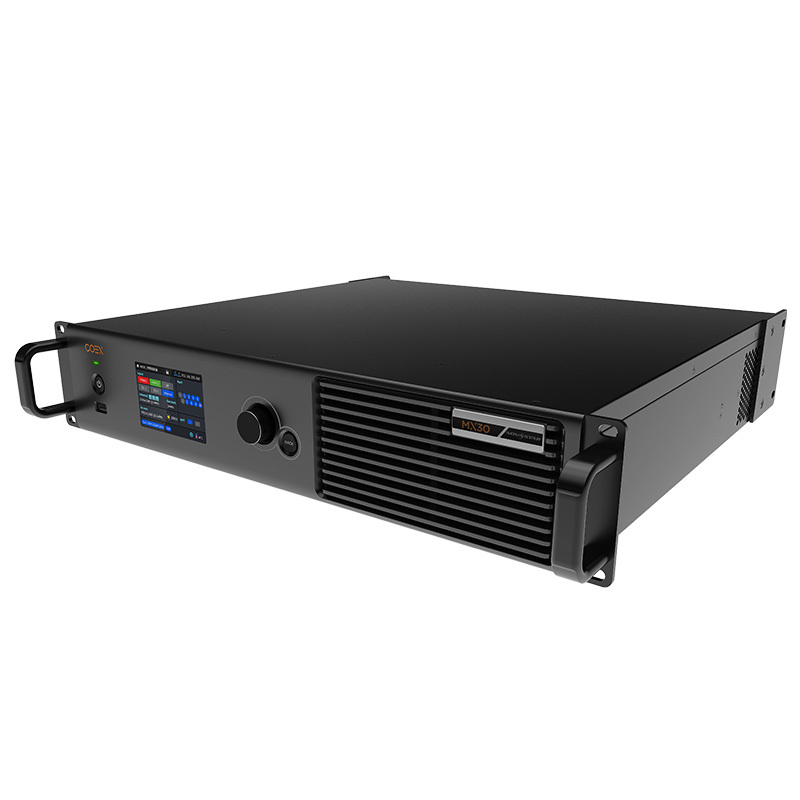

MX30 All-in-one Controller

Product Description

Features
Inputs and Outputs

Multiple types of inputs

• 1x HDMI 2.0 (with loop through)
• 1x HDMI 1.4 (with loop through)
• 1x DP 1.1 − 2x 3G-SDI (with loop through)

10-bit and 8-bit video inputs

 3 types of outputs

• 10x Gigabit Ethernet ports, load capacity up to 6.5 million pixels
• 2x 10G optical ports
• 1x SPDIF digital audio port

3 types of controls

• 1x Genlock signal input (with loop through)
• 2x Ethernet control ports
• 1x Auxiliary port

Specifications

Electrical Specifications

• Power input: 100-240V~, 50/60Hz, 2-0.8A
• Max power: consumption 55 W

Operating Environment

• Temperature:  –20ºC to +50ºC
• Humidity: 0% RH to 80% RH, non-condensing

Storage Environment

• Temperature: –30ºC to +80ºC
• Humidity: 0% RH to 95% RH, non-condensing

Physical Specifications

• Dimensions: 482.6 mm × 94.2 mm × 466.7 mm
• Net weight: 7.2 kg
• Gross weight: 10.2 kg (Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications).

Packing Information

• Packing box: 660.0 mm × 570.0 mm × 210.0 mm, kraft paper box
• Accessory box: 408.0 mm × 290.0 mm × 50.0 mm, white cardboard box Accessories

                -1x Power cord

                -1x Ethernet cable

                -1x HDMI cable

                 -1x DP cable

                -1x Certificate of Approval

IP Rating

• IP20 (Please prevent the product from water intrusion and do not wet or wash the product).
