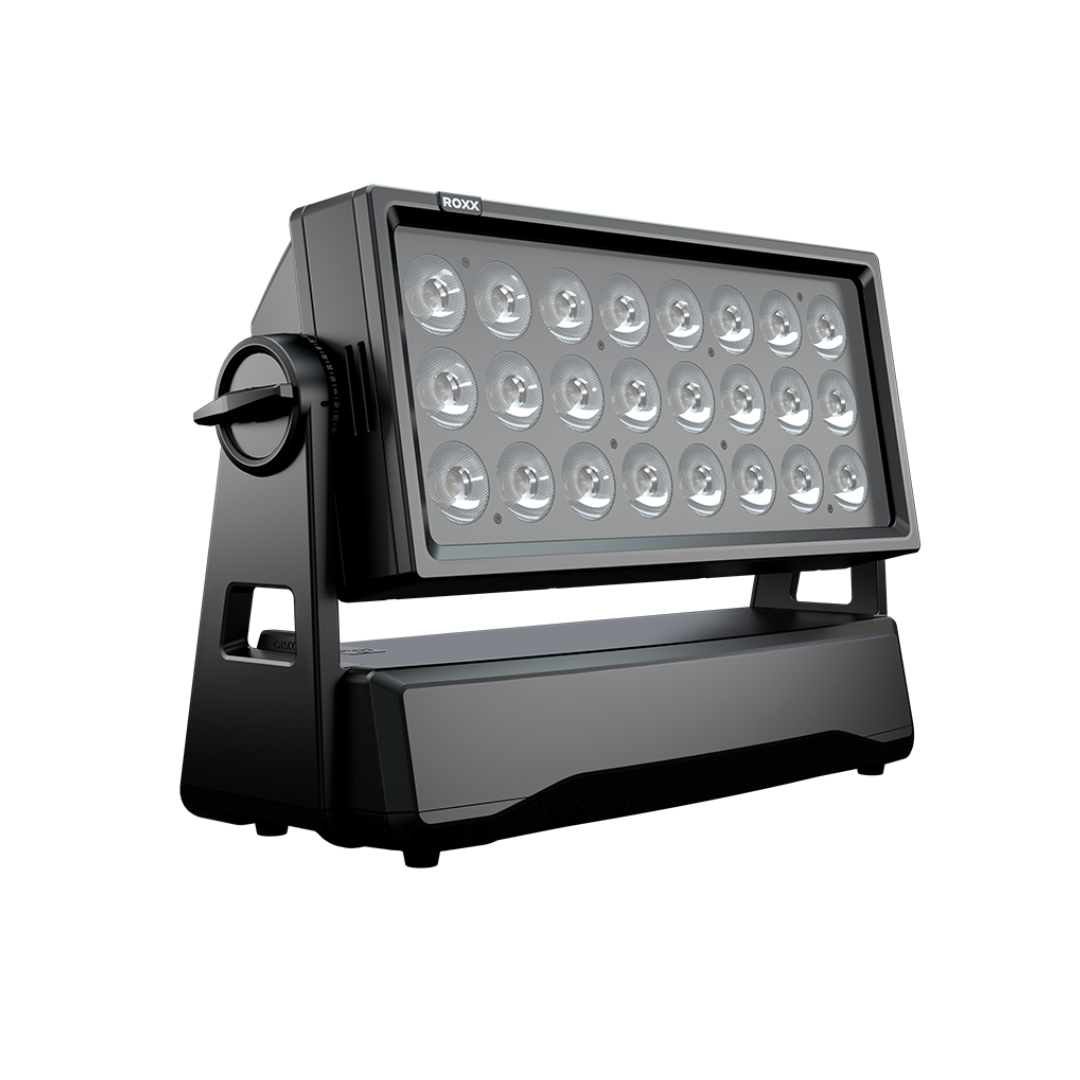

NEO High Power LED WashLight

Product Description

Product Specifications

Photometrics

• LED expected lifetime: 50,000 hours
• Light source: 24x 40W RGBL
• Type of optical system: TIR lens
• LED PWM Frequency: selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz
• Beam angles @ Full (50%): 8° (native)
• Maximum Field angles @ Full (10%): 15° (native)
• Color temperature range: 2000-10.000K
• CRI/Ra @ 5600K: 85
• TLCI @ 5600K: 85
• Luminous flux @ Full (RAW): 27.225 lm (918W)
• Luminous flux @ 5600K (Normal CRI): 26.183 lm (721,5W)
• Luminous flux @ 5600K (High CRI): 16.627 lm (389,4W)
• Illuminance Lux @ 5m / 16,4ft (@ Full): 38.525 lx / 3579 fcd
• Illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI): 36.865 lx/ 3425 fcd
• Illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI): 23.124 lx / 2148 fcd
• Efficancy @ Full (max): 29.7 lm/W

Dimensions & Weight

• IP class: IP65
• IK class: IK08
• Body material: Aluminum, Nylon
• Lens material: Tempered glass front
• Net dimensions (w x h x d): 545 x 340 x 210 mm
• Net dimensions inches: 21,46 x 13,39 x 8,27 inches
• Net weight (incl. Yoke): 15.4kg
• Tilt: 220°
• Tilt Locking System: Locking system including angle indicator

Thermal Characteristics

• Cooling: Active, Forced Air, Temperature-regulated
• Humidity (max.): 95%
• Temperature range, Operating: -40°C to 45°C
• Temperature range, Start-Up: -20° to 45°C
• Temperature range, Storage: -40°C to 80°C
• Thermal Protection: Automatic overtemperature protection

Electrical Data

• AC Power, max: 90 – 285V 50/60Hz
• AC Power, nominal: 100 – 240V 50/60Hz
• Electrical protection: Overload protection with automatic recover
• Max. power consumption: 988W
• Standby Power: 11.2W
• Power Thru max. @ 100V: 2A (ETL) / 5A
• Power Thru max. @ 230V: 7A (ETL) / 10A
• Power Linking 1 unit @ 230V / 0 units @ 100V
• Power Factor PF 0.993@ 100V / PF 0.977@ 230V
• Power Supply Unit Inbuilt auto-ranging electronic switch-mode
• DC Power In 24-34V

Operator & Controller

• DMX channels: 3CH CCT, 3CH RGB, 6CH RGB, 8CH RGB, 19CH RGB, 23CH RGB, 4CH DIRECT, 8CH DIRECT, 9CH DIRECT, 21CH DIRECT, 26CH DIRECT, 17CH HSI, 16CH PURE, 29CH PURE, 28CH FULL ACCESS, 44CH FULL ACCESS
• DMX modes: 16
• Protocol: USITT DMX512A RDM ANSI E1.20 CRMX, W-DMX™ G2, W-DMX™ G3, WDMX™ G4, W-DMX™ G4S Bluetooth (Low Energy)
• Setting and addressing: 2.0″ TFT display / 10 controls RDM ANSI E1.20 Near Field Control (NFC)
• Standalone mode: Auto Program, Color Macro, Quick Color, Tunable White, User Color
• Wireless DMX: Lumen Radio transmit & receive function (CRMX)
• Indicator: 2.0″ TFT display
• Controls: 10 backlighted controls
• Strobe: 0-30Hz
• DMX I/O: IP65 XLR 5-pin male/female
• Power In: TRUE1 compatible input & link-thru sockets
• USB Firmware Update: IP65 USB socket

Included / Optional

• Included items: 2m Power Cable
• Optional Accessories: Multiple magnetic filters (circular / elliptical, smoked-clear), 8-Way Barndoor, Omega Bracket ST

Installation

• Mounting point on fixture bottom side: 3x 1/4 turn Omega Bracket
• Mounting point on fixture Yoke side: 1x 1/4 turn Omega Bracket
• Orientation: Any
• Rigging possibilities: hanging direct
• Safety features: 1x bottom mount for fixtures safety wire / 2x Yoke mount for accessory safety wires
•  Minimum distance from flammable materials: 0.3 meters
