P10 Presentation Switcher

Name: P10 Presentation Switcher
SKU: P10

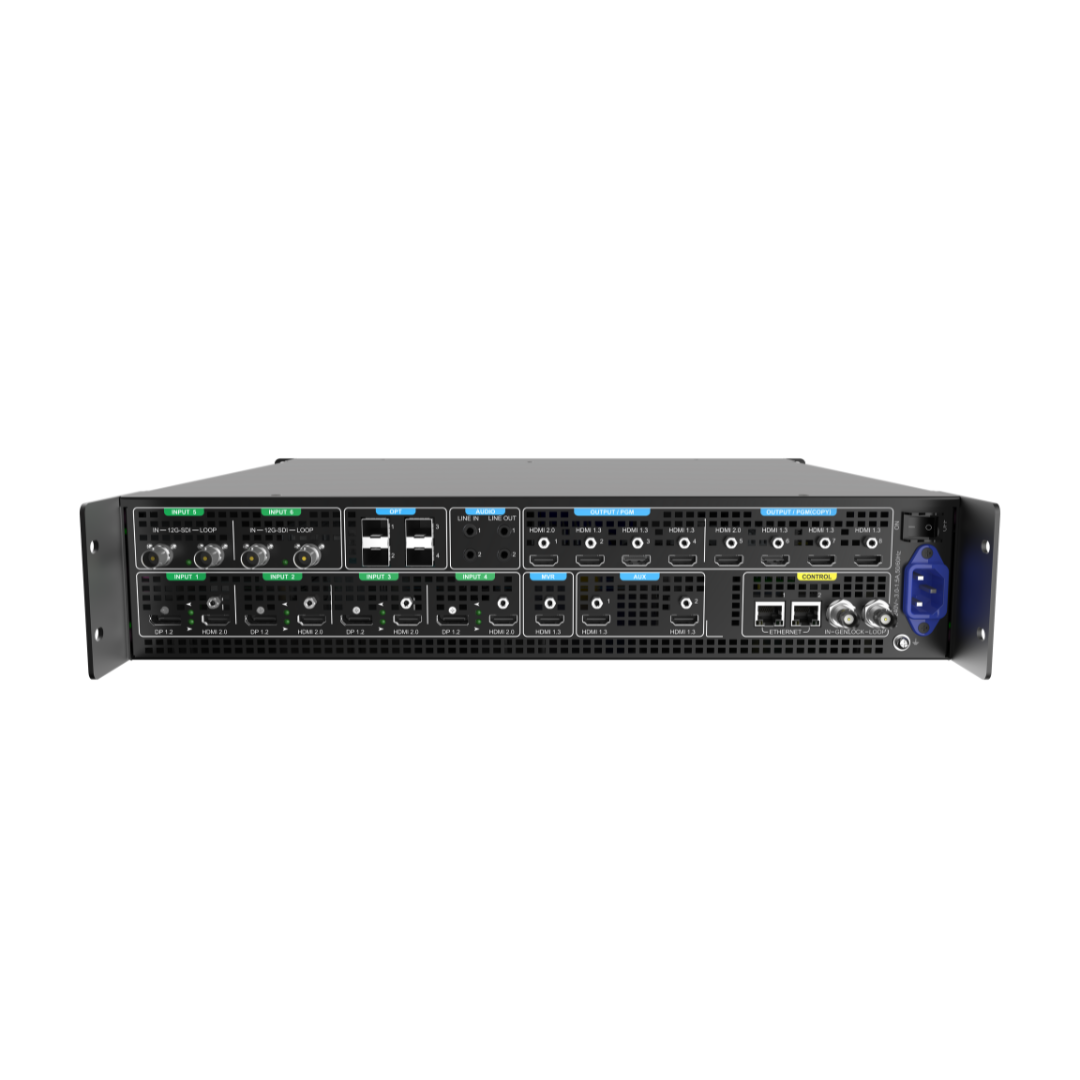

The Pixelhue P10 is one of the new, compact 4K video switchers from PIXELHUE. The device processes 4K video signals with ease and is equipped with a variety of different inputs and outputs.

Add to Quote

SKU: P10 Category: Pixelhue Video Processing Solutions Brand: Pixelhue

Product Description

HARDWARE FEATURES

Inputs

4x DP 1.2 / HDMI 2.0
2x 12G-SDI

Outputs

2x HDMI 2.0
6x HDMI 1.3

Layers

2x 4K@60Hz & 4x 2K@60Hz or 3x 4K@60Hz

Controlling

Event controller U5 / U5 Pro
PixelFlow Software
Stream Deck support

Other features

1x HDMI 1.3 Multiviewer
4x OPT Out
2x HDMI 1.3 AUX
5″ LCD display
2x Gigabit Ethernet port
2x Line-In & 2x Line-Out (3.5mm)

General specifications

2U
Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz
Power consumption: 82 W
Dimensions: 482.6 × 493 × 94.6 mm (L × W × H)
Weight: 7.9 kg | 20.6 kg (with flight case)

Additional information

Weight	22.0 kg
Dimensions	0.0 × 0.0 × 0.0 cm

Downloads

Data Sheet
