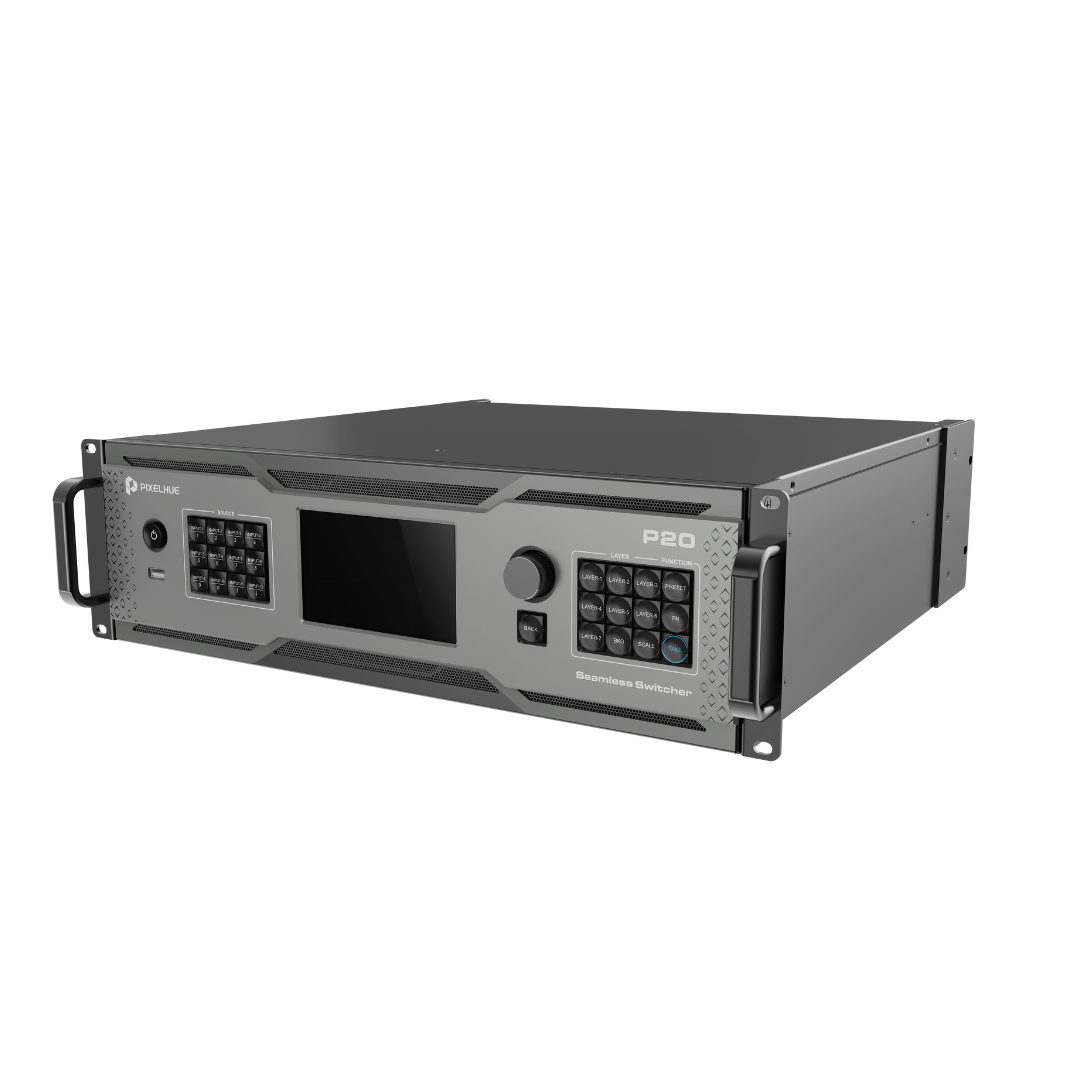

P20 Presentation Switcher

Product Description

HARDWARE FEATURES

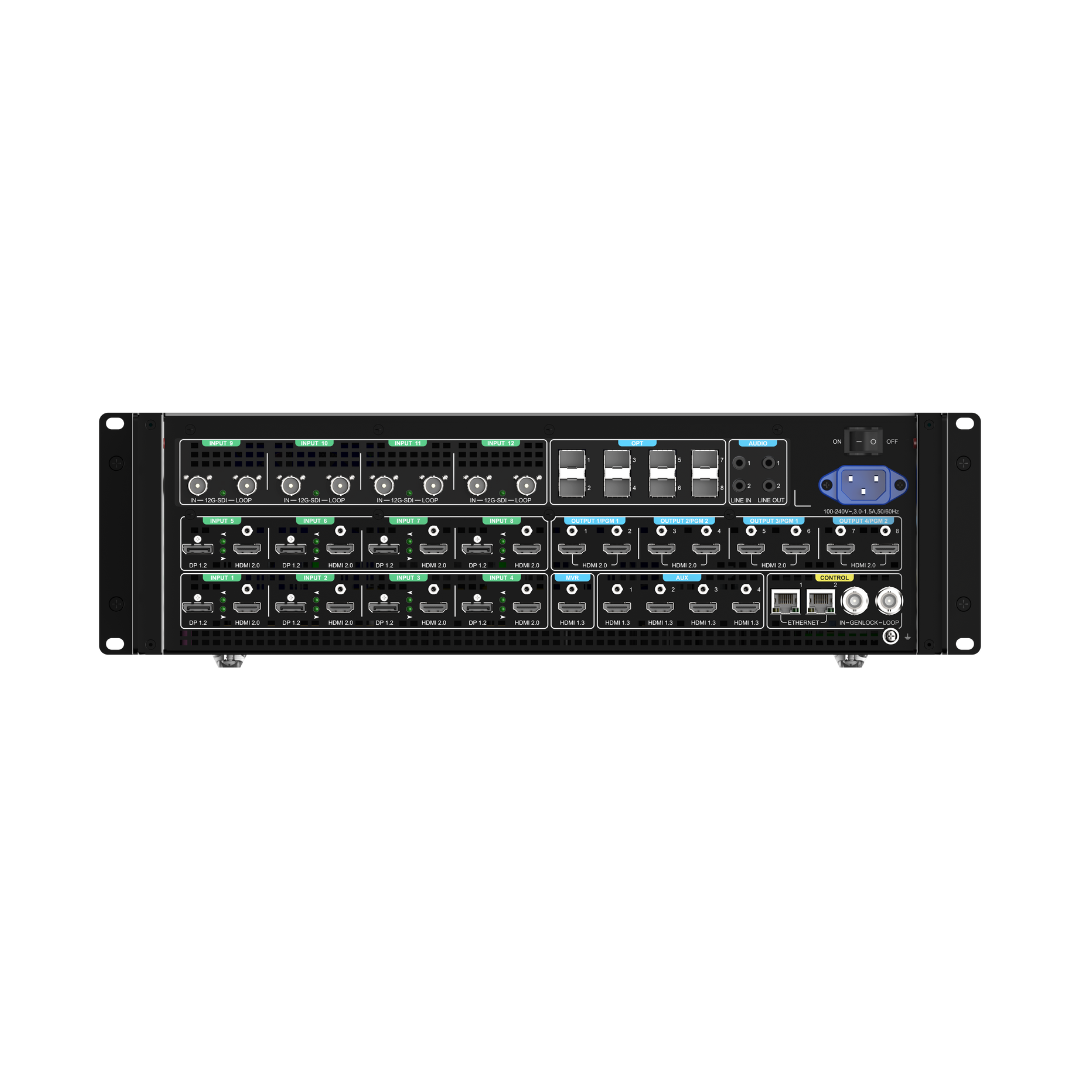

Inputs

• 8x DP 1.2 / HDMI 2.0

• 4x 12G-SDI

Outputs

• 8x HDMI 2.0

Layers

• 3x 4K@60Hz & 4x 2K@60Hz or 4x 4K@60Hz

Controlling

• Event controller U5 / U5 Pro

• PixelFlow Software

• Stream Deck support

Other features

• 1x HDMI 1.3 Multiviewer

• 8x OPT Out

• 4x HDMI 1.3 AUX

• Downstream Keying: Luma Key & Chroma Key

• 5″ LCD display

• 2x Gigabit Ethernet port

• 2x Line-In & 2x Line-Out (3.5mm)

General specifications

• 3U

• Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz

• Power consumption: 140 W

• Dimensions: 482.6 × 501 × 139 mm (L × W ×H)

• Weight: 10.2 kg | 25.2 kg (with flight case)
