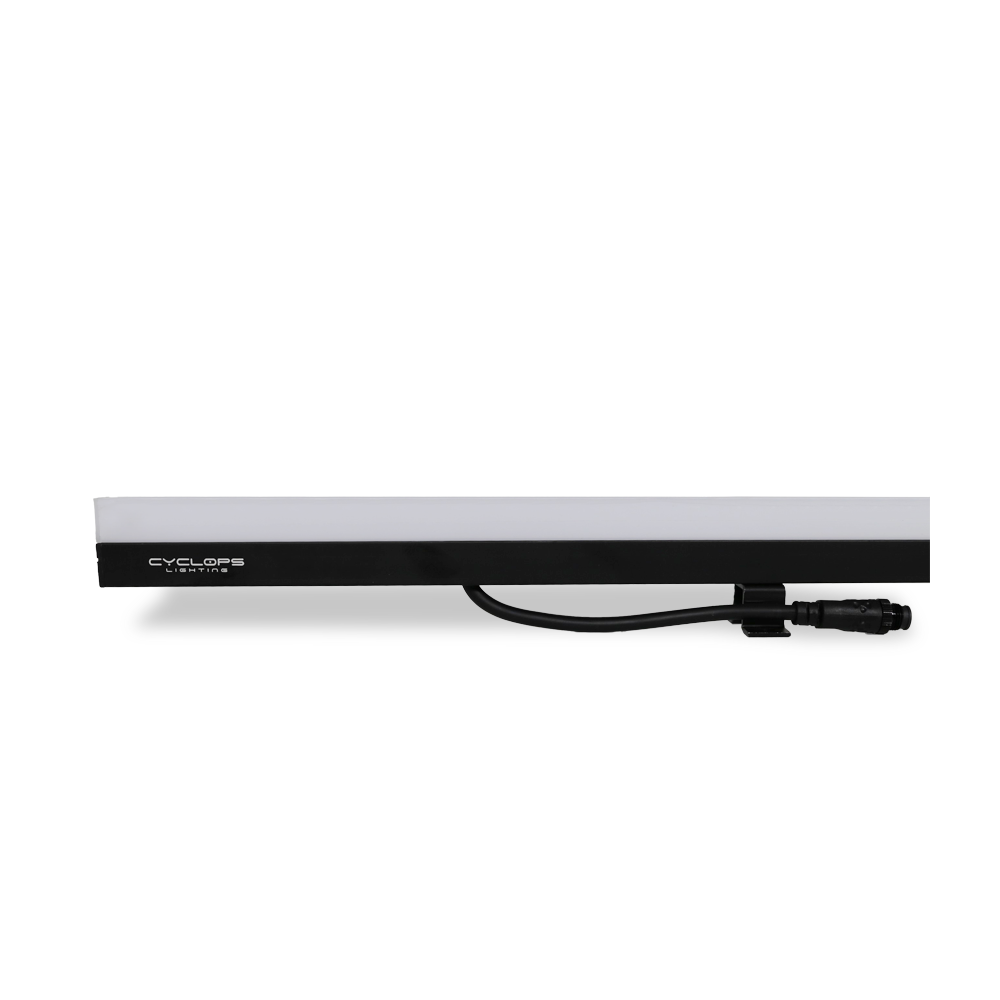

PixiBarPro - Outdoor RGB Digital LED Bar Series

Name: PixiBarPro - Outdoor RGB Digital LED Bar Series
Brand: Cyclops Lighting
SKU: PBPRO5OS24RGB4816100028

The PIXIBARPRO 48-OS is a high-performance RDM Outdoor IP66-rated LED Pixel Bar, featuring 48 RGB LEDs with 16 independent pixel controls. Designed for exceptional color mixing and smooth pixel effects, it incorporates a square opal diffuser for even light distribution.

The bar includes an alignment tool for precise, seamless edge-to-edge installation and supports M10 bolts for secure clamp attachment, making it perfect for both permanent architectural installations and temporary setups for rental stages and events.

Add to Quote

SKU: PBPRO5OS24RGB4816100028 Categories: LED Pixels, Lighting, Outdoor LED Pixels Brand: Cyclops LightingSeries: Pixi Series

Product Description

SOURCE

Light source: SMD3535 RGB LEDs
LED quantity: 48 LEDs

OPTICAL SYSTEM

Cover: Square opal diffuser
View angle: 165°

CONTROL & PROGRAMMING

Pixels control: 16
Color mixing: RGB
Control protocols: RDM, DMX
Control channels: 48 CHs
Address setting: RDM, Manual

ELECTRICAL

Input voltage: 24V
Power consumption: 10 watts / per meter

CONNECTIONS

Power and data connection: 15cm 5 pin male/female cable
Cable entry: Bottom

PHYSICAL

Dimensions: 1000 x 28 x 46 mm (without bracket)
Color: Silver
Material: Aluminum 6063 with UV Protection
Operating temperature: -30°C/50°C
Humidity: 0-90%
IP rating: 66

Additional information

Weight	1.7 kg
Dimensions	0.0 × 0.0 × 0.0 cm

Download

Data Sheet
