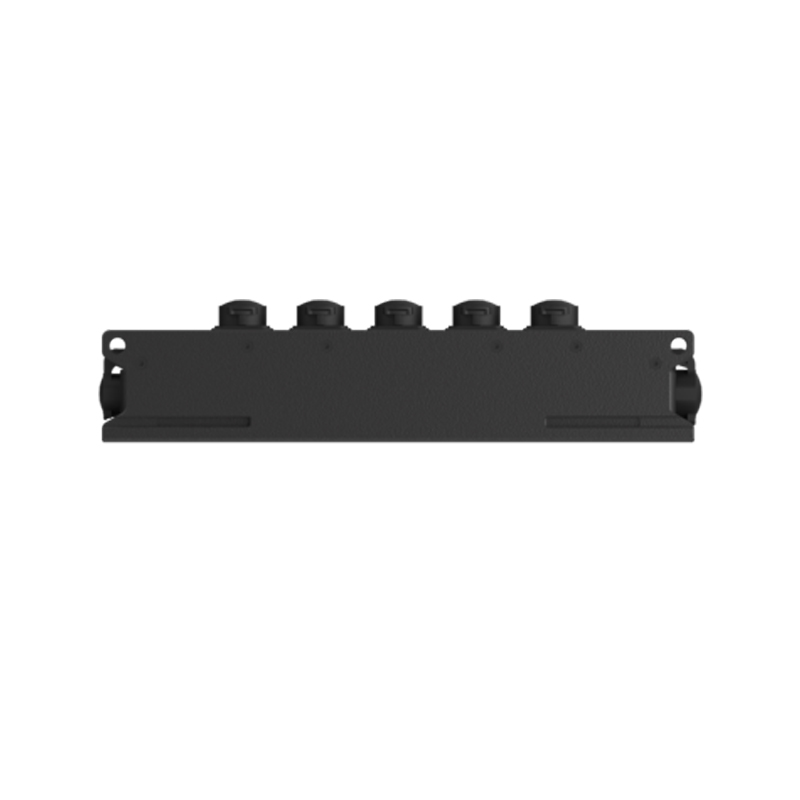

Power Strip XO - 1x powerCON TRUE1 IN – 6x powerCON® TRUE1® TOP - OUT: 6x powerCON® TRUE1® TOP, IP65

Product Description

Key features:

• Extreme robust and safe EASYLEN® housing with leather grain texture
• Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
• Flame retardant (UL94-V2) and non-conductive housing material
• High outdoor protection (IP65, IK, ..)
• Light weight, compact and stackable housing design
• Versatile mounting options

Applications:

• Markets: Professional video wall / lighting / audio
• Mobile application: Festivals, live events
• Semi-permanent applications: Theaters, studios

Technical Specifications:

Product

• Input device: 1x powerCON® TRUE1® TOP with self-closing caps
• Output device: 6x powerCON® TRUE1® TOP with self-closing caps
• Daisy chaining: 1x powerCON® TRUE1® TOP with self-closing caps

Electrical

• Contact resistance / protection class: Protection class II
• Dielectric strength: 0,5 kV / mm
• Rated voltage: 250V AC
• Rated Current: 16A (USA: 20A)
• Number of electrical contacts: 2 + PE
• Phases: single-phase

Mechanical

• Lifetime: > 5000 Mating cycles per connector
• Dimensions: 380 x 91.2 x 77 mm
• Conductor cross section: 2.08 mm²
• Weight: 1.15 kg
• Mounting options: Truss clip, mounting wholes for pegging or suspension

Material

• Housing: Easylen
• Color: black

Environmental

• Standards compatibility: UL94-V2
• Protection class: IP65
• Temperature range: -25 °C bis +70°C
