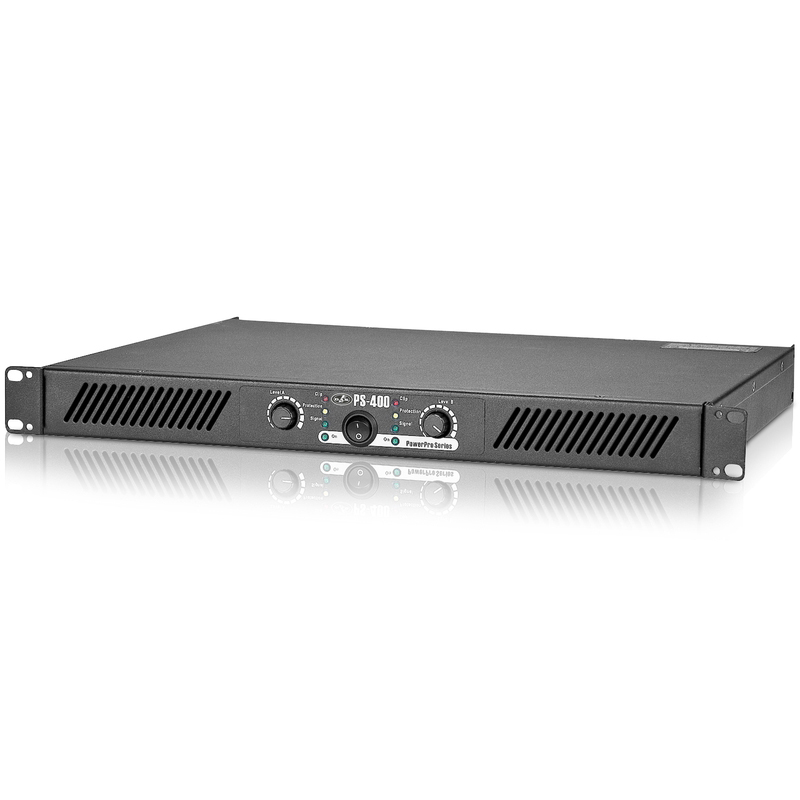

PS 400 Stereo Amplifier

SKU: PS-400 Categories: , Tag: Brand:

Product Description

The PS-400 is a stereo amplifier which incorporates a rugged 1 unit all-steel chassis ensuring structural rigidity and protecting components. The low-noise fans offer both quiet and cool operation while the high energy toroidal transformer saves weight. The amplifier incorporates rear located switches which permit ground lift, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Technical Data

Stereo Mode (both channels driven)
8 ohms EIA 1 kHz 1% THD		 140 W
4 ohms EIA 1 kHz 1% THD 200 W
Bridge Mono Mode
8 ohms EIA 1 kHz 1% THD		 400 W
Frequency Response 20 Hz-20 kHz +/- 1 dB
Signal to Noise Ratio (20 Hz-20 kHz) -90 dB
Distortion (SMPTE-IM) Less than 0.5%
Bridge Mono Mode
140V or 240V		 Less than 0.5%
Damping Factor @ 8 ohms Greater than 100
Input Sensitivity @ 4 ohms 0.775 V/1.0 V/1.44 V
Voltage Gain (input 0.775 V) 31.2 dB
AC Requirements 230 V AC 50 Hz
Current Draw (1/3 power @ 230 V) 1 A
Dimensions (H x W x D) 4.4 x 48.2 x 38.6 cm
1.75 x 19 x 15.2 in
Weight 10 kg (22.2 lb)
