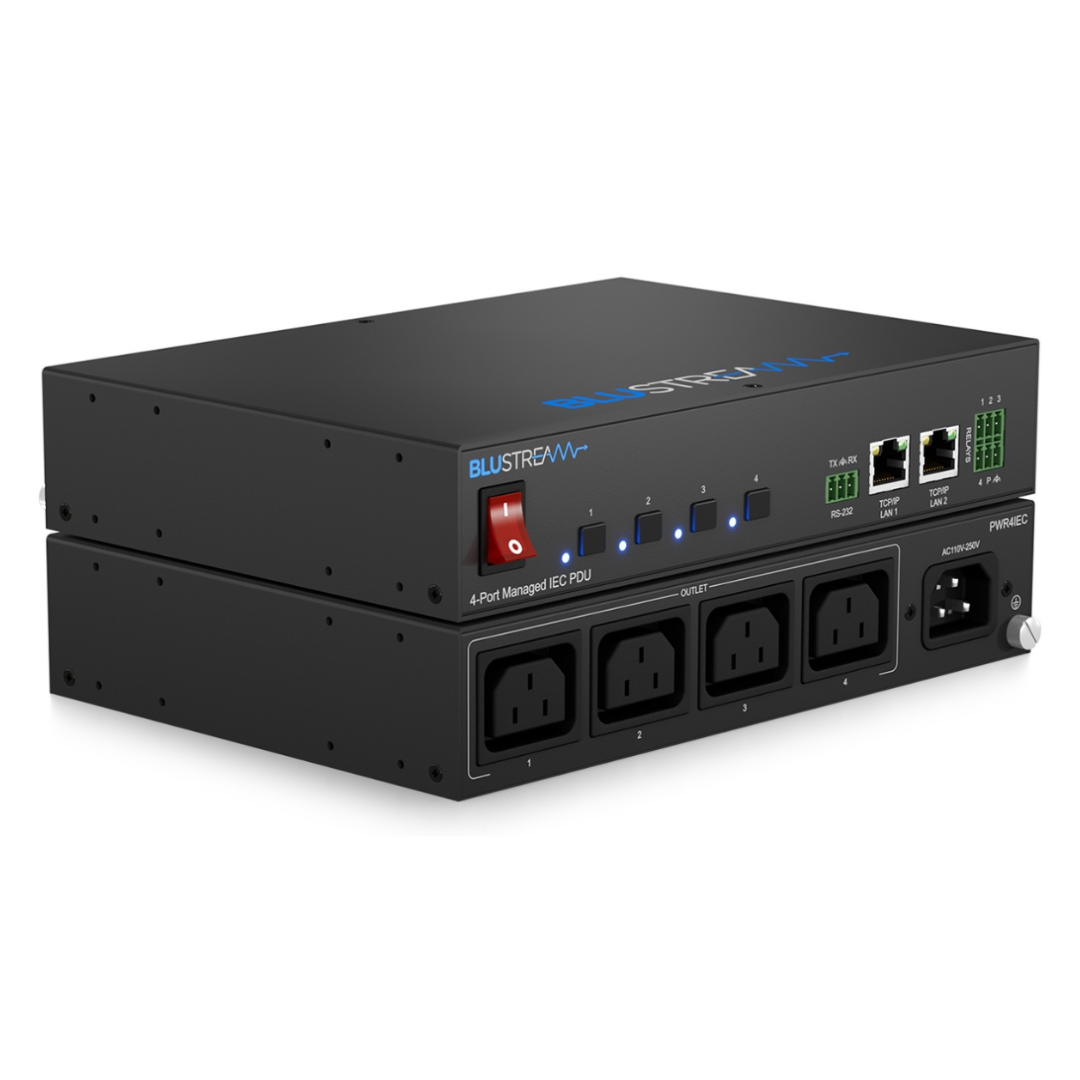

PWR4IEC- 4 Port Managed IEC PDU

Product Description

Key Features

• Single C14 IEC inlet with 4x C10 IEC outlets
• Products supports 110-250V AC power input (up to 10A)
• Monitoring and metering of: voltage, current, power, and energy consumption
• Overload protection and interference filtering
• Advanced power management features including scheduling and power on/off sequencing
• Control via TCP/IP, RS-232, front panel buttons, or relays
• Dual TCP/IP network ports providing uninterrupted network service / access with SSL connectivity
• Relays for automated switching of inlet, and individual power outlets
• Provides remote monitoring with password authentication through web-GUI
• Support multiple network and IoT protocols
• 1U design for 19″ rack mount integration – rack mounting kit included

Specifications

• Power Input Ports: 1 x C14 IEC 10A
• Power Output Ports: 4 x C10 IEC 10A (total)
• Relay Control: 2 x 3-Pin Phoenix connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• TCP/IP Control: 2 x RJ45, female
• Rack-Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x D x H): 218mm x 153mm x 42mm
• Casing Dimensions (including connections) (W x D x H): 218mm x 170mm x 42mm
• Shipping Weight: 1.2kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Input: 110-250V AC

Box Contents

• 1 x PWR4IEC
• 1 x Serial cable – DB9 to 3 pin Phoenix connector
• 2 x 3 pin 3.5mm Phoenix connector
• 1 x 19″ Rack Mounting kit
• 1 x Shelf / wall mounting brackets
• 1 x Quick Reference Card
• Input power IEC Cables (outlet cabling not supplied)
