RAW20- FB4 (IP65) Full-Color Semiconductor Diode-based Laser System

Product Description

This RAW laser projector is suitable for semi-professionals and hobbyists and can be used in large venues and outdoors. With the Unity RAW FB4 lasers, you get more than just a laser projector. Our FB4 hardware integration allows for versatile control options, whether from a lighting console, PC, or in stand-alone “auto” mode. Moreover, these lasers support all major lighting protocols, making them a seamless fit into any advanced multimedia show workflow.

Key Features

• Guaranteed Optical Output: 20W
• Suitable For: Arena sized venues (up to 20,000 people), outdoor shows. Beam show, text, graphic, and mapping capable
• Control Signal: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
• Scanning System: 35,000 points per second @ 8°
• Scan Angle: 50°
• Safety: Fully complies with the latest EN 60825-1 and FDA regulations
• Weight: 30kg
• R | G | B [mW]: 6,000 | 6,000 | 8,000
• Beam Size [mm]: 5 x 5.6
• Beam Divergence: 1.1mrad [Full Angle]
• Modulation: Analog 100kHz
• Power Requirements: 100-230V/50Hz
• Consumption: Max. 600W
• Operation Temperature: (-10°C) – 45°C
• Ingress Rating: IP65

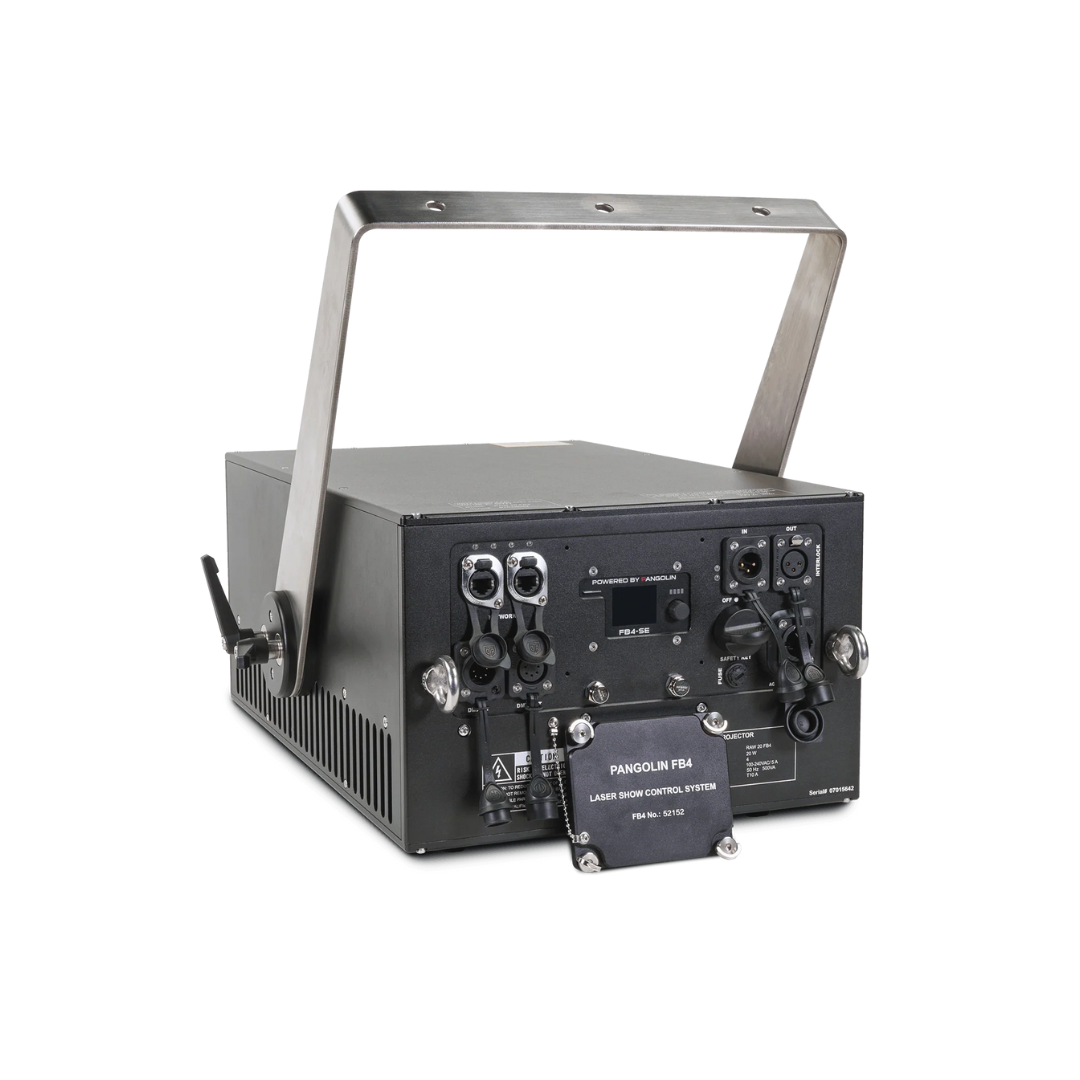

• System Features: All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in, DMX in/out, Estop in/out
• Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
• Notice: Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:

• Depth: 468
• Width: 308
• Height: 218

Packaging

• Laser projector w/ FB4 DMX
• IP65 housing
• Heavy duty flight case
• Estop box
• Estop cable (10M/30ft)
• Ethernet cable (10M/30ft)
• Power cable (3M/9ft)
• Interlock (* service dongle if outside US)
• Keys
• Manual
• Quickstart
• Guide
• Variance card
