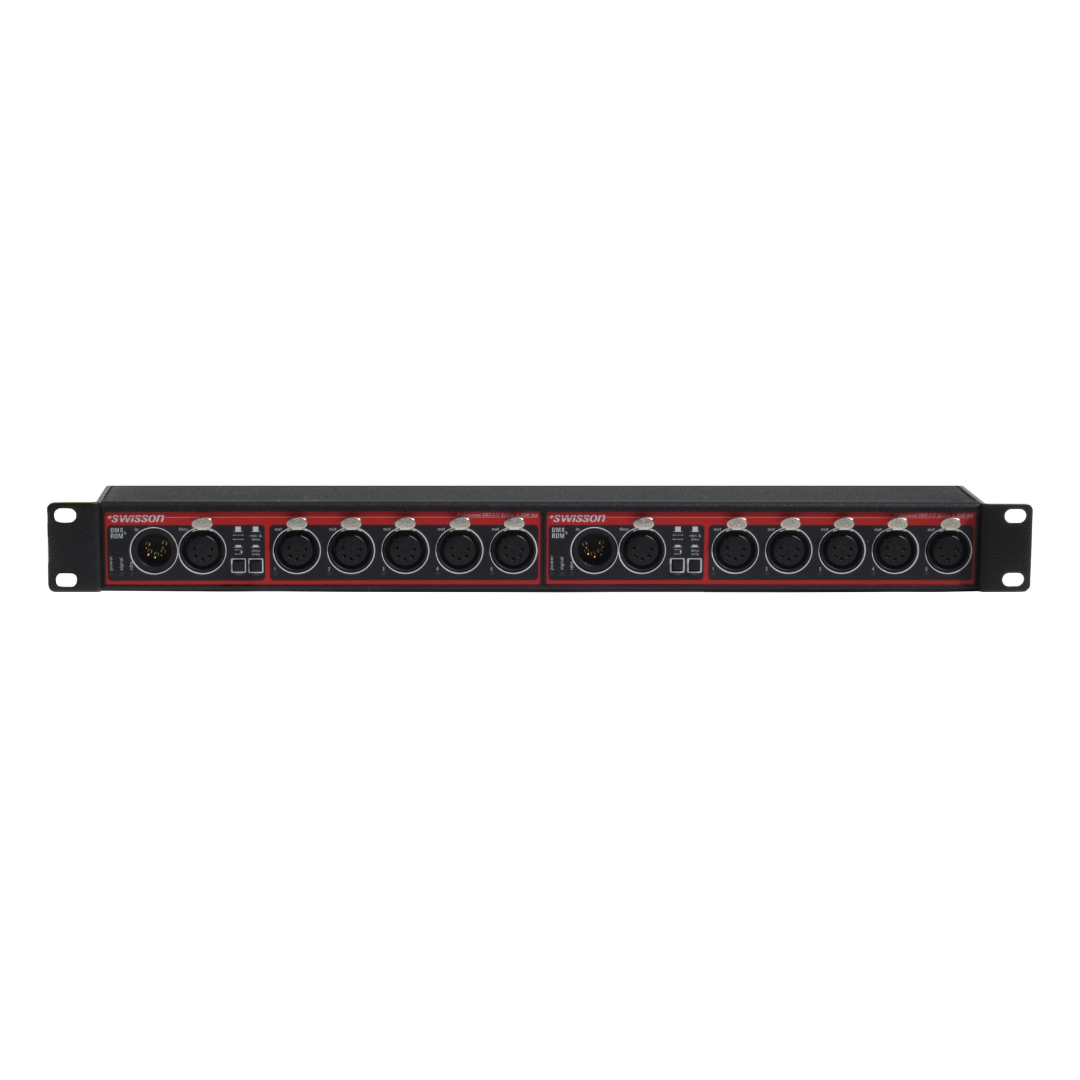

Swisson - XSR-5R-5R- DMX &RDM Splitter Double-Rack- 10 outputs- 5pin XLR

Product Description

The XSR splitters are visible to RDM controllers. This gives the user an better overview of the installation and may help with troubleshooting.

• High level of reliability
• Boosts DMX & RDM
• Regenerates DMX & RDM
• Reduces reflection problems
• Distributes DMX & RDM
• Optical isolation on each individual port
• Connection types: 5-pin and 3-pin XLR models
• RJ-45 and pluggable screw terminals models
• Housing types: Installation, box, rack and double rack models
• 5 DMX outputs per universe (10 outputs on double rack models)
• Built-in line termination

Product Features

• Weight Box: 0.4 kg (0.9 lb.)
• Weight Single-Rack: 1.5 kg (3.3 lb.)
• Weight Double-Rack: 1.8 kg (3.9 lb.)
• Dimensions box (L x W x H): 217.5 x 112 x 44.5 mm (8.56″ x 4.41″ x 1.75″)
• Dimensions rack (L x W x H): 482.6 (19″) x 112 x 44.5 mm (19″ x 4.41″ x 1.75″)
• Ambient temperature: -17 to +55°C (0 to +131°F)
• Typical power consumption: 4 W / 8 W (Double-Rack)
• AC power input: 100-240 V AC
• M10 for clamp / safety eye: Yes (box version only) / Yes (box version only)
• DMX / RDM: ANSI E1.11 / ANSI E1.20
