S-Rack - Rack for Loudspeakers

Name: S-Rack - Rack for Loudspeakers
Brand: Adamson
SKU: 925-0008
Price: 19426.55 AED
Availability: InStock

Brand: Adamson

SKU: 925-0008

Adamson has developed a rack solution, configured to interface seamlessly with the S Series loudspeaker products. All S-Racks are equipped with two or three Lab.gruppen PLM+ series amplifiers, featuring Lake processing and Dante™ audio networking functionality.

Product variants

Low stock, only 1 item left.

Need Help:

Pairs well with

S-Rack - Rack for Loudspeakers

Dhs.19,426.55

Dhs.19,455.01

Technical Specifications

Description

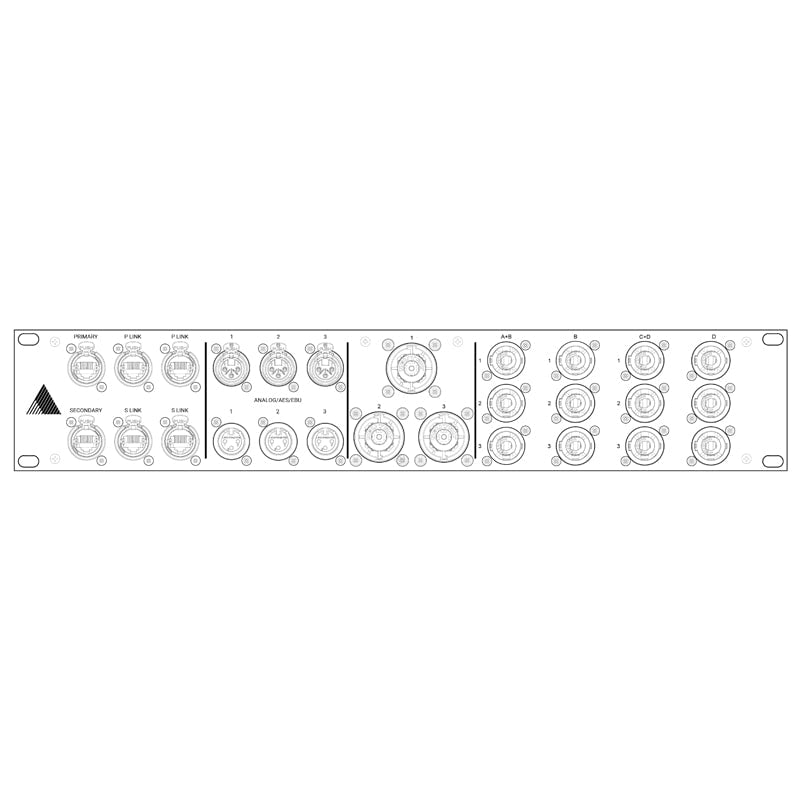

Audio Panel

The 19”, 2U Adamson S-Rack Audio Panel is comprised of XLR in and thru connections (analog or AES/EBU), etherCON RJ45 connections (Dante™ and control). Jumping signals from rack to rack is simple, for both analog and digital signals. The S-Rack Audio Panel offers 3x Speakon™ NL8 and 12x NL4 (Amplifier Channels A+B, B, C+D, D available per amplifier) output connections. This allows for cabling efficiency and flexibility matching the needs of small to medium sized Adamson systems.

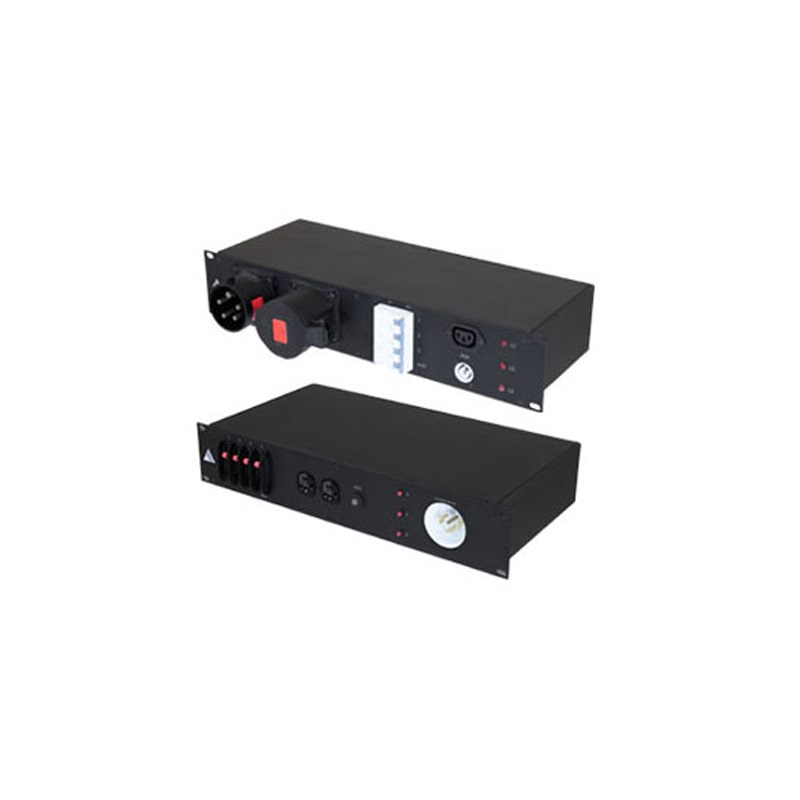

AC Panel

The 19”, 2U Adamson AC Panel is available in two versions - 120 V and 230 V. The 120 V version comes with a single 3-phase L21-30 input socket, and the 230 V version comes with CEE 32 A 3-phase input and link connections. Each version comes with three hard-wired 32 A Powercon™ connections, as well as auxillary power plugs.

Cisco SG350-20

The SG350-20 exceeds the performance benchmark set by Audinate. Adamson has adopted its use along with specific configuratons designed to optimize transmission of Dante™ signals and Lake control data.
