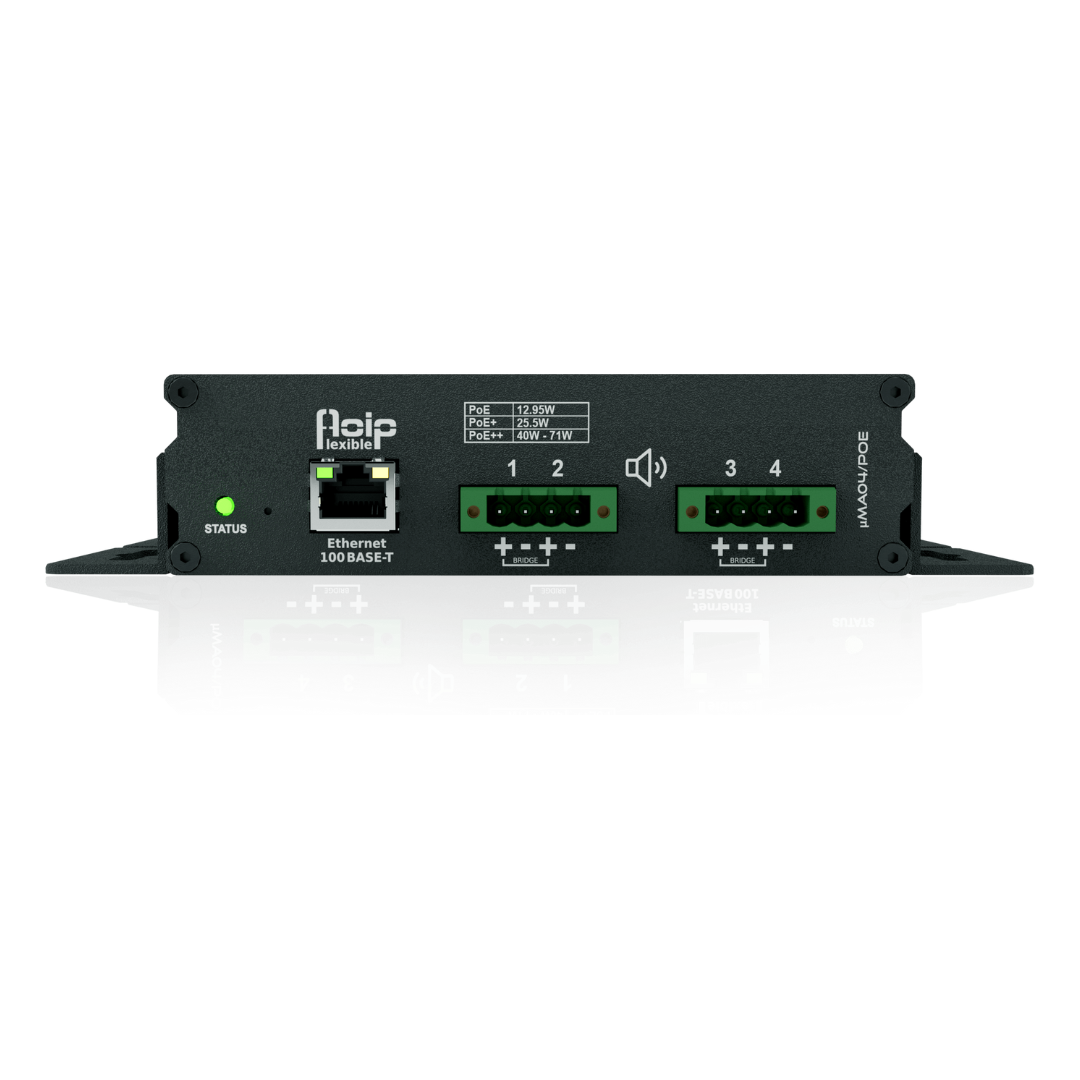

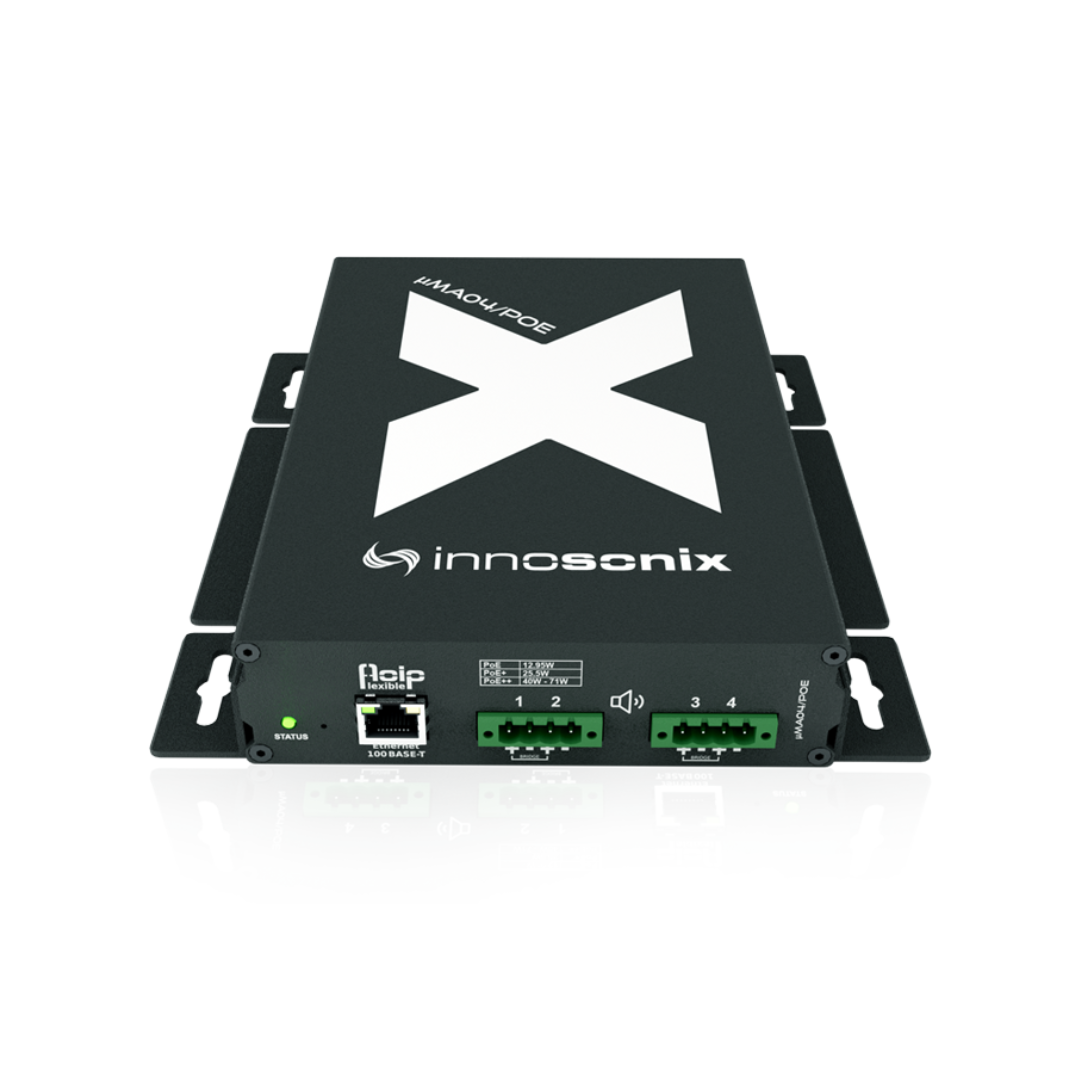

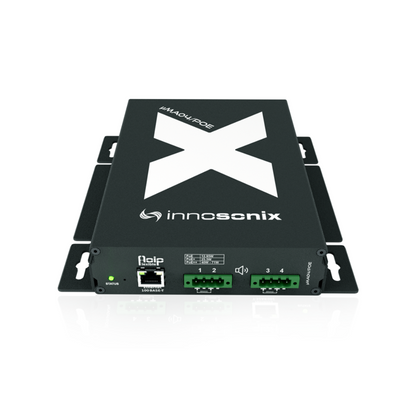

Innosonix Micro Maxx

Name: Innosonix Micro Maxx
Brand: Innosonix
SKU: 1103
Price: 4197.77 AED
Availability: OutOfStock

Brand: Innosonix

Categories: Amplifiers

SKU: 1103

The μMA04/POE redefines the performance of a conventional PoE solution and opens up huge creative possibilities. The μMA04/POE is the most powerful PoE amplifier on the market, offering 4 channels of 120 watts at 4Ω, with the option to bridge 2 channels for 240 watts at 8Ω, delivering exceptional sound from a single compact platform. Thanks to Innosonix DSP processing, there’s no need for external loudspeaker processors. The μMA04/POE comes with DANTE and AES67 connectivity as standard.

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

Power Stage:

Half-Bridge GaN amplifier (Gallium nitride)

Output Power (EIAJ Test Standard 1kHz 1% THD)

4Ω 8Ω 8Ω Bridge-Mode
120W 120W 240W

Max output Voltage:

50 Vpeak
100 Vpeak

Max output Current Limited:

10 Apeak

Emergency Shutdown Current:

15 Apeak

DC Offset:

<25mV

Frequency response:

10Hz-20kHz / 4-8Ω: +0.0 -1dB

S/N typ:

108dBA

Analog Gain:

Software Adjustable, 0dBFS on any Input Interface: 20Vp - 60Vp(default: 50Vp)

THD+N @ 4Ω:

1W 10W
< 0.05% < 0.1%

SMPTE IMD:

< 0.1%

CCIF IMD:

< 0.1%

Output impedance:

typ 40 mΩ

Crosstalk:

channel enabled channel disabled
typ < 70dB typ 90dB (distant channels) typ < 120dB

Protection:

Overtemperature, DC and Overcurrent

Downloads

umaxx_poe_datasheet_1.pdf
