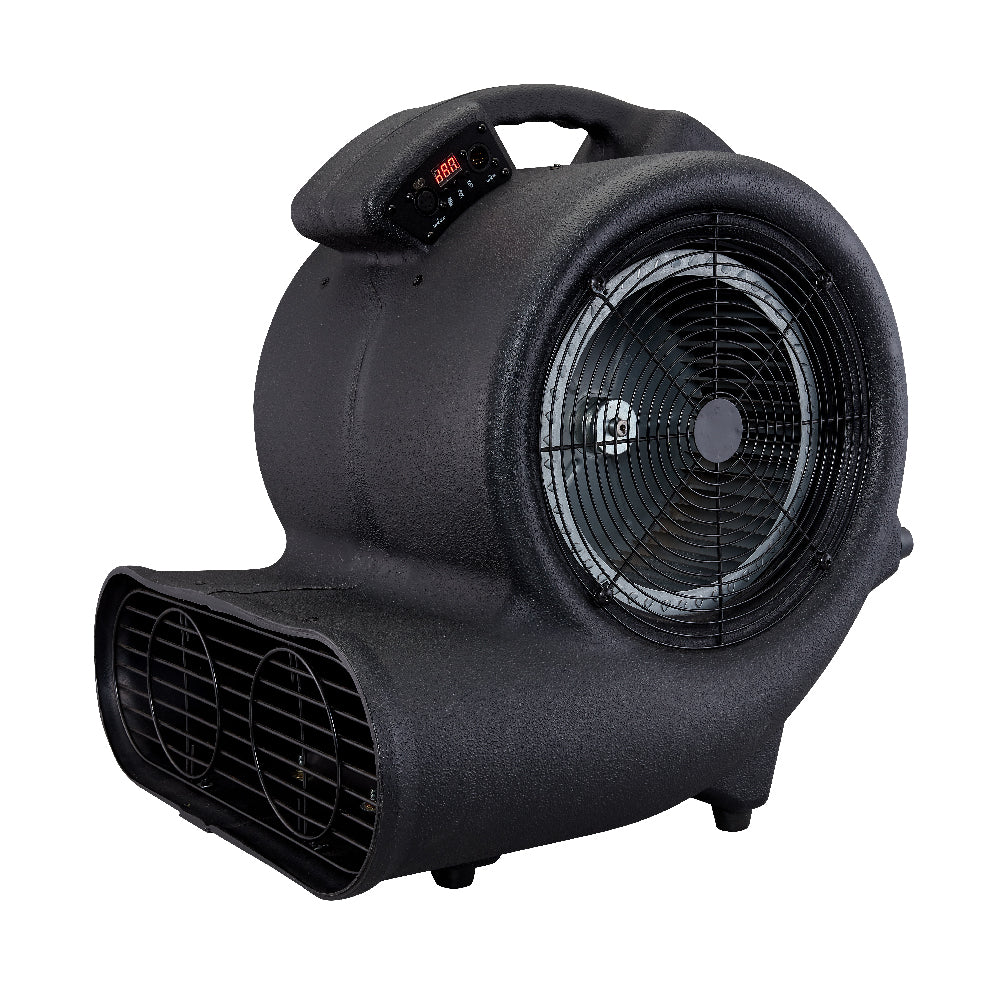

AF-5X is a special effect fan with 3 speed setting to fulfill different wind effect requirement. It provides wind effects when using by itself, it also can work with other effect machine such as fog, haze, snow and bubble to increase the coverage.

Extra foot stand design allows the wind to blow in two directions when placing on the floor. With optional hanging bracket offers other possibilities for installation requirements.

Stand-alone, On-board DMX and optional wireless control satisfy different control requirements.

Technical Specifications:

• Input voltage: US model : AC 100-120V, 50/60Hz 13A | EU model : AC 220-240V, 50/60Hz 7.25A
• Rated power: 1600W
• Ambient temp/ range: 0°C – 40°C (32°F – 104°F)
• Air flow: 1743 CFM (High) | 1567 CFM (Medium) | 1351 CFM (Low)
• Fan speed: 1242 – 1480 rpm (AC 110V / 60Hz) | 1175 – 1289 rpm (AC 220V / 60Hz)
• Housing Material: Flame Retardant Plastic (PE 9731)
• Control: Manual, Timer, DMX 512 | Wireless (Optional)
• DMX channels: 1 channel
• Connection: XLR 5-pin (DMX)
• Optional accessories: WTR-10 Wireless Remote (For AF-5XR Only) | AF-5-HB Hanging Bracket
• Dimension: L 558 W 465 H 578 mm (L 21.97 W 18.31 H 22.76 inch)
• Weight: 17.5 kg (38.58 lbs)
