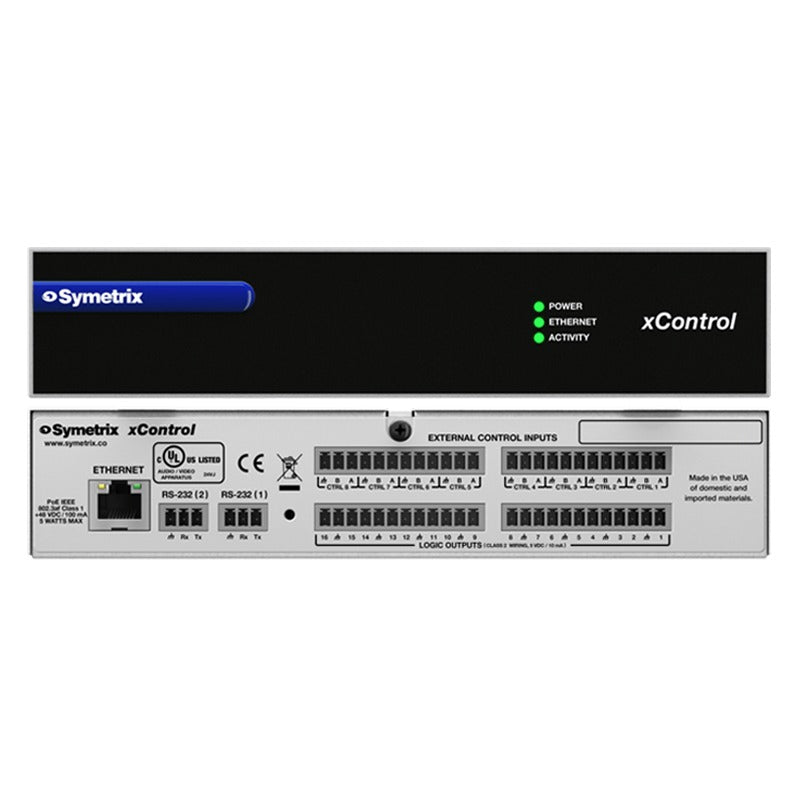

xControl - External Control Expander

Name: xControl - External Control Expander
Brand: Symetrix
SKU: 80-0089
Price: 5405.00 AED
Availability: InStock

Brand: Symetrix

Categories: Processors

SKU: 80-0089

The Symetrix xControl provides external control expansion for use with Symetrix Radius, Edge, Prism, and Solus NX DSPs. Each of the 8 flexible analog control inputs may be configured for 1 potentiometer or 2 switches. The 16 logic outputs may be used to drive LEDs, trigger external relays, or control contact closure ports. Either of the 2 RS-232 ports may be configured to receive commands from third-party control systems, or, issue commands to third-party control systems. Utilizing PoE, one or more xControl devices may be mounted where convenient and connected to the control network, each with a single cable. A half-rack form factor conserves rack space, or, if preferred, the xControl may be surface mounted.

Product variants

Available

Need Help:

Pairs well with

xControl - External Control Expander

Dhs.5,405.00

Technical Specifications

Description

Key Features:

External control expansion device for use with Symetrix Radius, Prism, Edge, and Solus DSP systems for cost-effective additional push-to-talkcapability and LED activity indication in conferencing and paging applications.
8 analog control inputs may each be configured for 1 potentiometer or 2 switches. 16 logic outputs drive LEDs or trigger external relays. 2RS-232 ports interface with peripherals such as projectors, camera controls and lighting. Multiple xControls combine for unlimited flexibility.
xControl utilizes Power over Ethernet (PoE) for a single cable connection to a PoE switch, or, a direct connection to the DSP (PoE injectorincluded).
Simple set-up and management using Composer open-architecture design software.
Versatile half-rack design. Mount 1 or 2 units in an optional 1U rack tray or surface mount with optional bracket.
