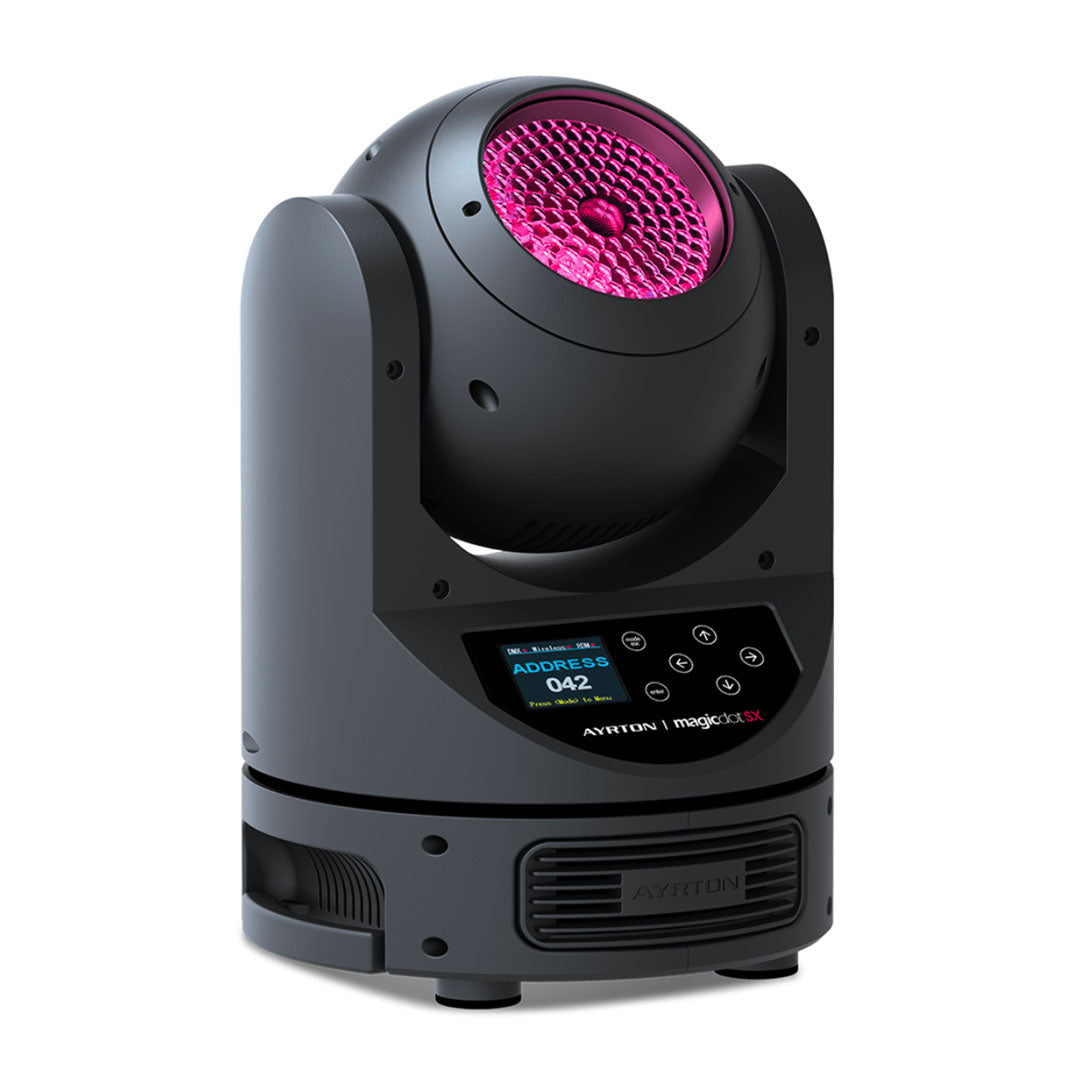

MAGICDOT SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm diameter collimator is positioned close to the transmitting lens.This ensures great compatibility and graphical interactivity with MAGICDOT R units. In addition to DMX-RDM control, MAGICDOT SX can be controlled via wireless CRMX TiMo RDM from LumenRadio™. MAGICDOT SX is a versatile tool that meets a vast array of needs both in stage and architectural applications.

Performance:Light Source: 60 W - RGBWLumens: 1,500Luminous Intensity: 136,000 cdBeam Aperture: 5° to 40°Collimator Lens: 94 mm

Technical specifications:

Optics

• 2-elements 8:1 zoom high-resolution optic system
• Beam aperture: 5° to 40°
• Fast motorised linear zoom
• 75% optic efficiency
• 94mm PMMA collimator optic

Light source

• 2,000 lumens RGBW High-Power LED source
• Total luminaire output: up to 1,500 lumens
• Luminous intensity: 136,000 cd (narrow beam)
• Rated life (L70): up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

Movement

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

Colours

• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

Dimmer / strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

Hardware features

• Graphic LCD display for addressing and special functions settings, with flip function
• 6 menu buttons to set the functions
• Excess temperature protection

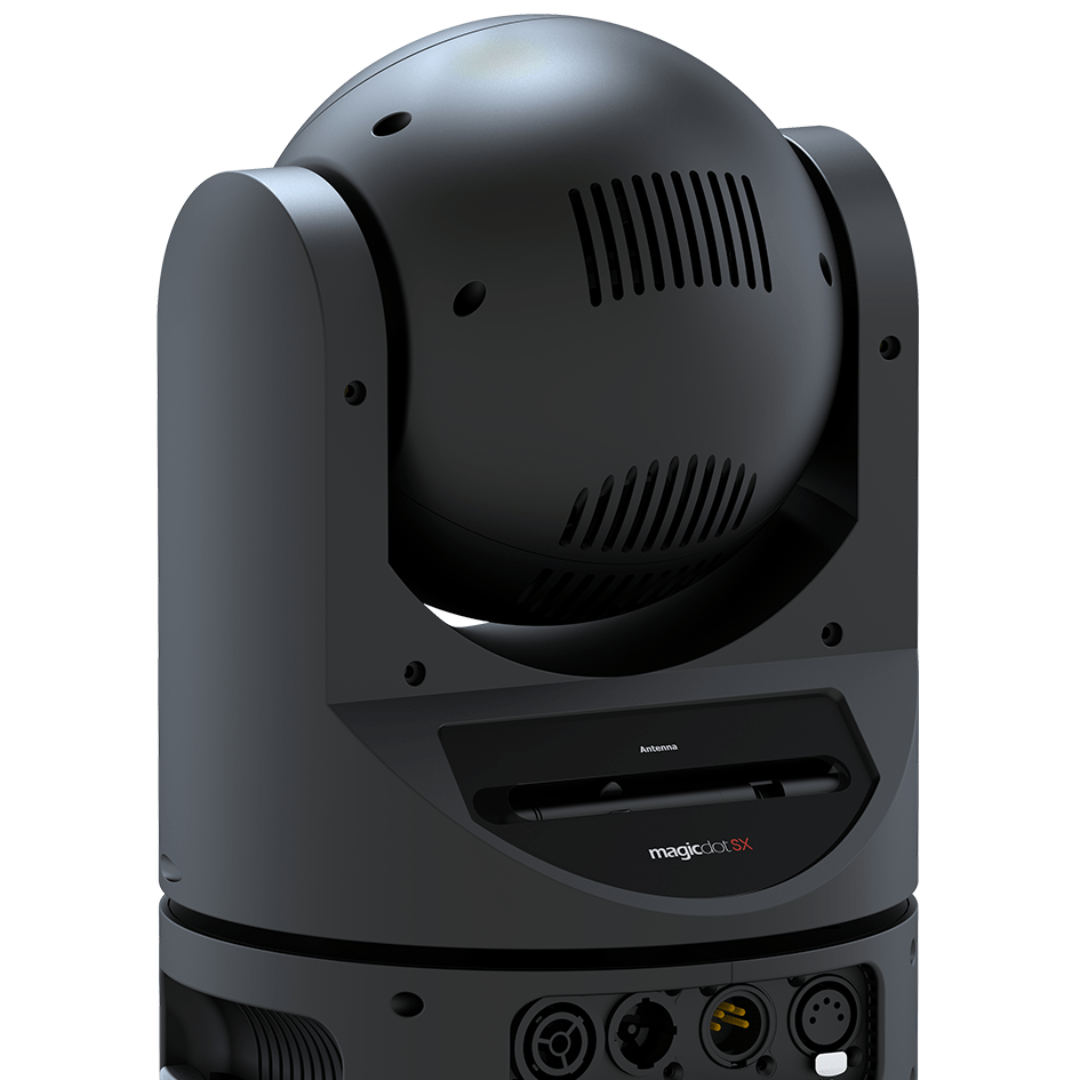

• Integrated wireless CRMX RDM receiver from LumenRadio™
• XLR 5 pin male and female connectors for DMX connection
• powerCON TRUE1 male and female connectors for power connection

Control

• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• Local control panel, with LCD display
• Choice of 2 DMX modes (from 16 to 19 DMX channels)

Power supply

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power 130 W maximum

Cooling system

• Advanced cooling system
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses

Housing

• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

Installation

• Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps
• Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

Operating parameters

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 1.0 m (3.28 ft)

Compliance:

EU (EMC):

• EMC Directive 2014/30/EU

EU (LVD):

• LVD Directive 2014/35/EU

US Safety:

• UL 1573

Size

• Product: 210 x 318 x 210 mm (l x h x d)Flight-case foam: 251 x 330 x 251 mm (l x h x d)

Weight

• Product: 5.7 kg

Product codes

• 015160: MAGICDOT SX – CREATIVE SOLUTION
