Key Features:

• Digital to Analogue audio Converter) converts either optical or coaxial digital to analogue stereo left / right audio output
• Converts optical digital audio input to coaxial digital audio output
• Auto-detects digital connection in use
• Optical digital input has priority over coaxial digital input
• Outputs coaxial digital and analogue L/R audio concurrently*
• Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
• Plug-and-play

* DAC12AU does not down mix Dolby / DTS / multi-channel audio signals

Specifications:

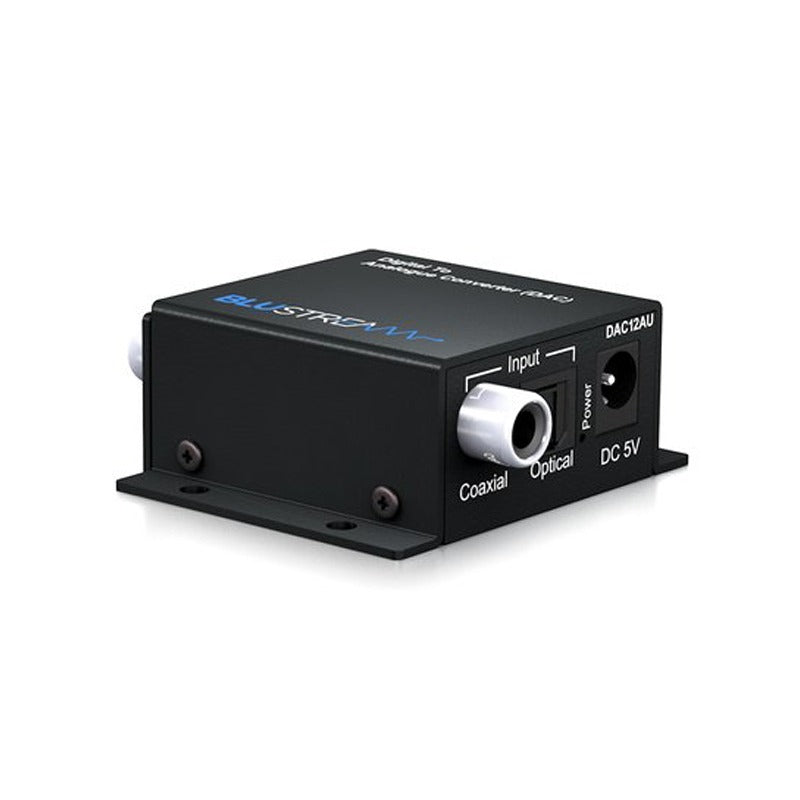

• Audio Input Connectors: 1 x optical digital & 1 x coaxial RCA (S/PDIF)

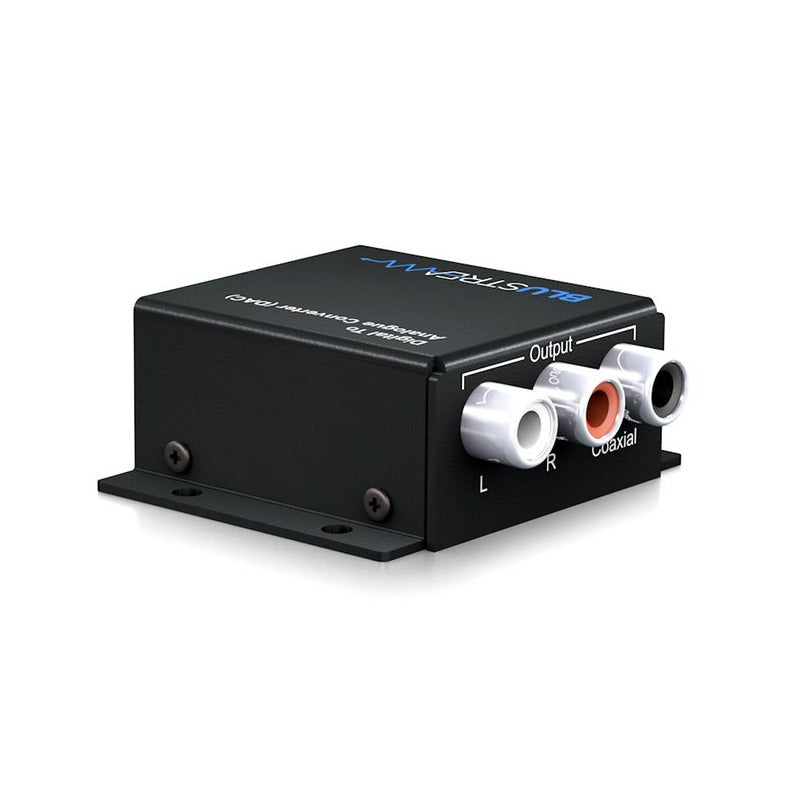

• Audio Output Connectors: 2 x Analogue stereo left / right & 1 x Coaxial RCA (S/PDIF)
• Dimensions (W x H x D): 50mm x 26mm x 42mm
• Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
• Shipping Weight: 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC

Box Contents:

• 1 x DAC12AU
• 1 x 5V/1A DC Power Supply
• 1 x Mounting Kit
• 1 x User Manual
