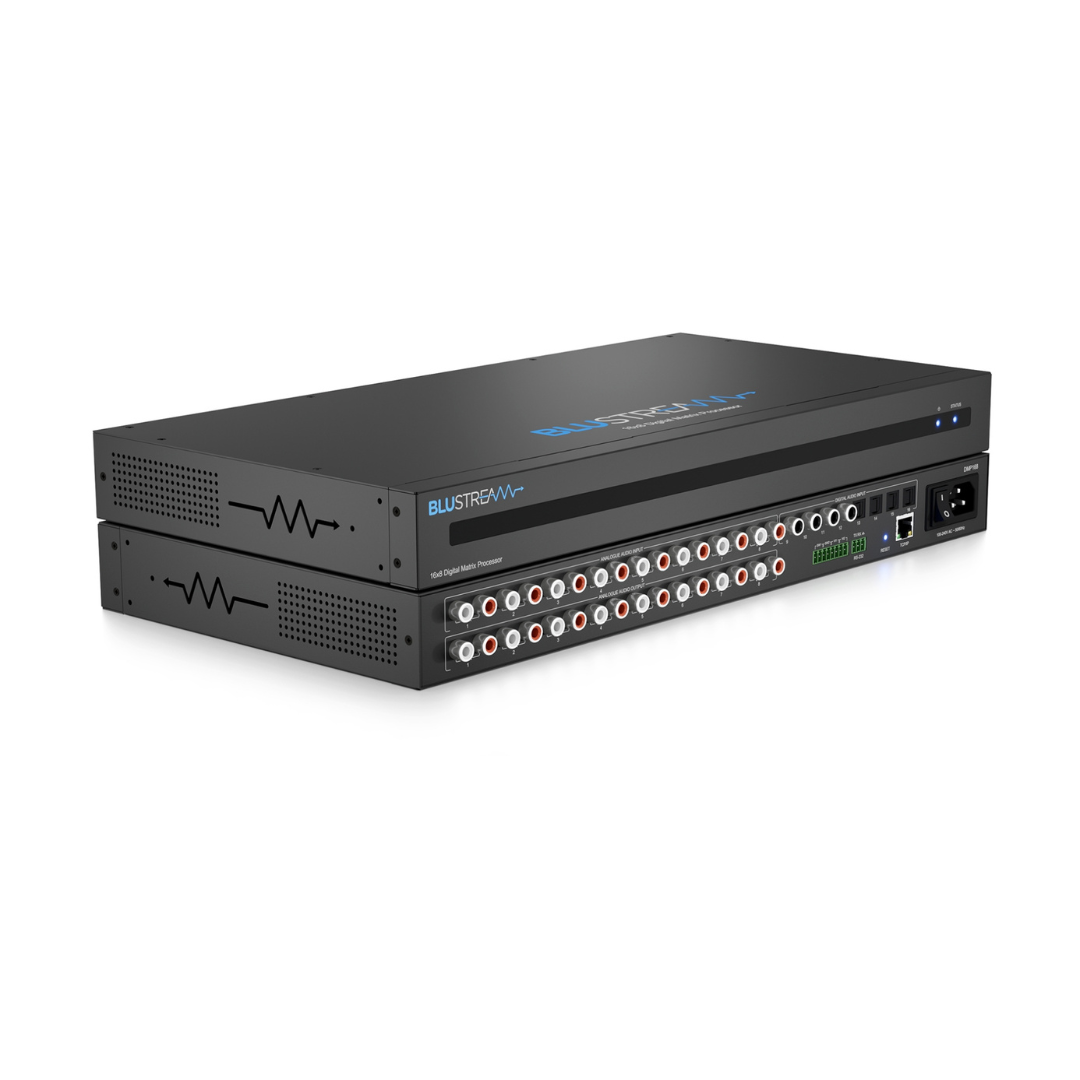

DMP168 - 16x8 Digital Matrix Processor with 8x analogue, 4x optical, and 4x coaxial inputs to 8x analogue audio outputs, DSP and EQ

Name: DMP168 - 16x8 Digital Matrix Processor with 8x analogue, 4x optical, and 4x coaxial inputs to 8x analogue audio outputs, DSP and EQ
Brand: Blustream
SKU: DMP168
Price: 6264.54 AED
Availability: OutOfStock

Brand: Blustream

Categories: Video Signal Distribution

SKU: DMP168

The Blustream DMP168 is an advanced 16x8 digital audio matrix, perfect for the distribution of multiple audio sources in a multi-zone installation.

The DMP168 features advanced audio processing including volume, balance, high/low shelf, high/low pass filter and 4 band parametic equalizer control per input and output, independent lip-sync delay per input, stereo to mono separation, or combining of mono audio inputs, configurable output grouping, and assignable audio ducking.

The DMP168 provides an advanced, but cost effective solution for ensuring that 2ch audio can be distributed around a multiroom system where there are a mixture of digital and analogue audio sources.

Product variants

Need Help:

Pairs well with

Technical Specifications

Description

Key Features

Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32x16 audio feeds
Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametic equalizer control per input and output
Supports independent gain adjustment for all analogue and digital inputs
Features 8 x assignable bus inputs allowing mixing of source inputs
Features output grouping to combine audio outputs for a single group control.
Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
Features assignable audio ducking with independent level and ramp up/down rate adjustment
Features 8x configurable presets
Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
Digital audio inputs support resolutions up to 192kHz 24-bit
Supports independent lip-sync delay (0-500ms) per output
Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
Supports control via web-GUI, RS-232, TCP/IP and IR
1U design for 19" rack mount integration - rack mounting kit included

Specifications

Audio Input Connectors: 8 x Analogue RCA (Left / Right), 4 x Optical (S/PDIF), 4 x Digital RCA (S/PDIF)
Audio Output Connectors: 8 x Analogue RCA (Left / Right)
RS-232 serial port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
Control port: 4 x 2-Pin Phoenix connector
Rack-Mountable: 1U rack height, rack ears included
Casing Dimensions (W x D x H): 440mm x 226mm x 44mm
Dimensions Including Connections & Feet (W x D x H): 440mm x 235mm x 51mm
Shipping Weight: 4.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: Internal 100-240V AC
