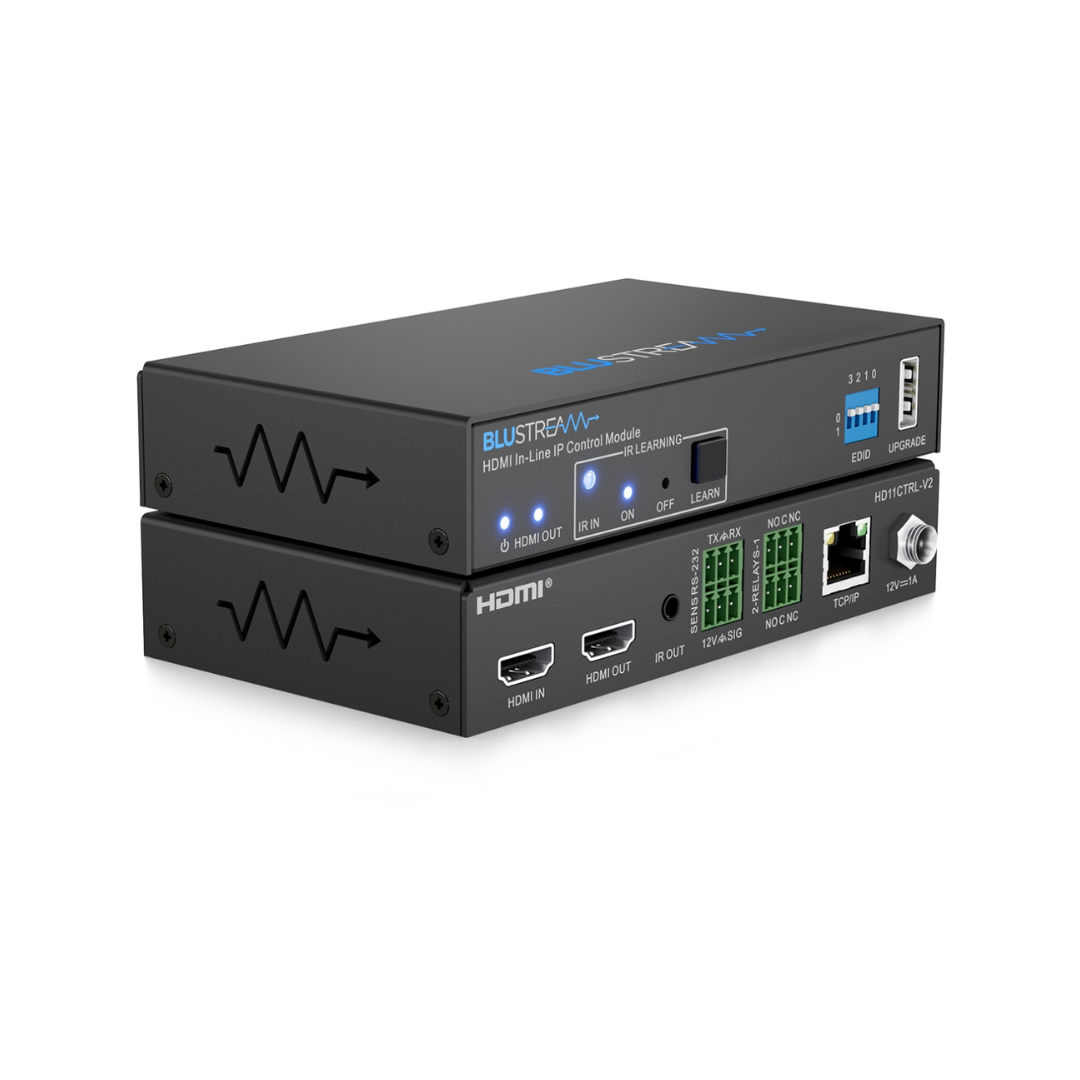

HD11CTRL-V2 - HDMI In-line IP Control Module

Name: HD11CTRL-V2 - HDMI In-line IP Control Module
Brand: Blustream
SKU: HD11CTRL-V2
Price: 1289.76 AED
Availability: InStock

Brand: Blustream

Categories: Video Signal Distribution

SKU: HD11CTRL-V2

Our HD11CTRL-V2 HDMI in-line controller is a innovative single zone automated control solution. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes.

The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K.

The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4.

Product variants

Need Help:

Pairs well with

HD11CTRL-V2 - HDMI In-line IP Control Module

Dhs.1,289.76

Technical Specifications

Description

Key Features

Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
Supports HDMI 2.0 18Gbps specification including HDR
Supports resolutions up to 4K UHD 60Hz 4:4:4
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
Automatic display control via CEC, RS-232, IR or IP
IR learning up to 30 IR commands
Relay control for interface to third party devices such as projector screens
Signal sense input for connection from third party devices such as sensors or switches
HDCP 2.2 compliant with advanced EDID management
In-built web-GUI for configuration and control

Specifications

Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
RS-232 Serial Port: 1 x 3-pin Phoenix connector
TCP/IP Control Port: 1 x RJ45, female
IR Output Port: 1 x 3.5mm mono jack
Relay Control: 2 x 3-pin Phoenix connector
Sensor Input: 1 x 3-pin Phoenix connector
EDID Selection: 4-pin DIP Switch
Product Upgrade: 1 x USB Type A, female
Dimensions (W x H x D): 145mm x 28mm x 84mm
Shipping Weight: 1.0kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: 12V/1A DC
