Technical Specifications

Description

The HD12DB features a HDMI loop out to pass the original video and multi-channel embedded audio signal to compatible equipment, with a second HDMI output featuring video scaling of resolutions up to 4K 60Hz 4:4:4 video to various lower video formats.This provides the perfect cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a multi-room system where there are a mixture of 2ch and 5.1ch zones with multiple output resolution requirements.

Key Features:

  • Features an in-built DAC (Digital to Analogue audio Converter) that converts 5.1ch Dolby Audio or DTS Audio to a stereo 2ch signal available on HDMI, optical and analogue audio outputs concurrently
  • Supports the following audio input formats: Dolby 5.1, DTS-ES 6.1, DD+5.1, DD+2.0, PCM 5.1, PCM 2.0 *
  • Features 1 x HDMI input supporting 4K UHD video (4K 60Hz 4:4:4) that is replicated to 2x HDMI outputs
  • HDMI loop out will replicate the HDMI input signal up to 4K 60Hz 4:4:4 and 5.1ch Dolby Audio & DTS Audio
  • HDMI output 2 features a video scaler allowing the output resolution to be set to the following formats:- 3840x2160@60Hz- 3840x2160@50Hz- 3840x2160@30Hz- 3840x2160@25Hz- 4K DCI@25Hz 4:4:4- 4K DCI@30Hz 4:4:4- 4K DCI@50Hz 4:4:4- 4K DCI@60Hz 4:4:4- 1920x1080@60Hz- 1920x1080@50Hz- 1280x720@60Hz- 1280x720@50Hz- 1920x1200@60Hz- 1680x1050@60Hz- 1024x768@60Hz
  • HDMI audio breakout to downmixed analogue L/R audio and downmixed optical digital outputs concurrently
  • HDCP 2.2 compliant with advanced EDID management*NOTE: This product does not support decoding of DTS CD bitstreams. Playback of this format may produce undesirable noise.

Specifications:

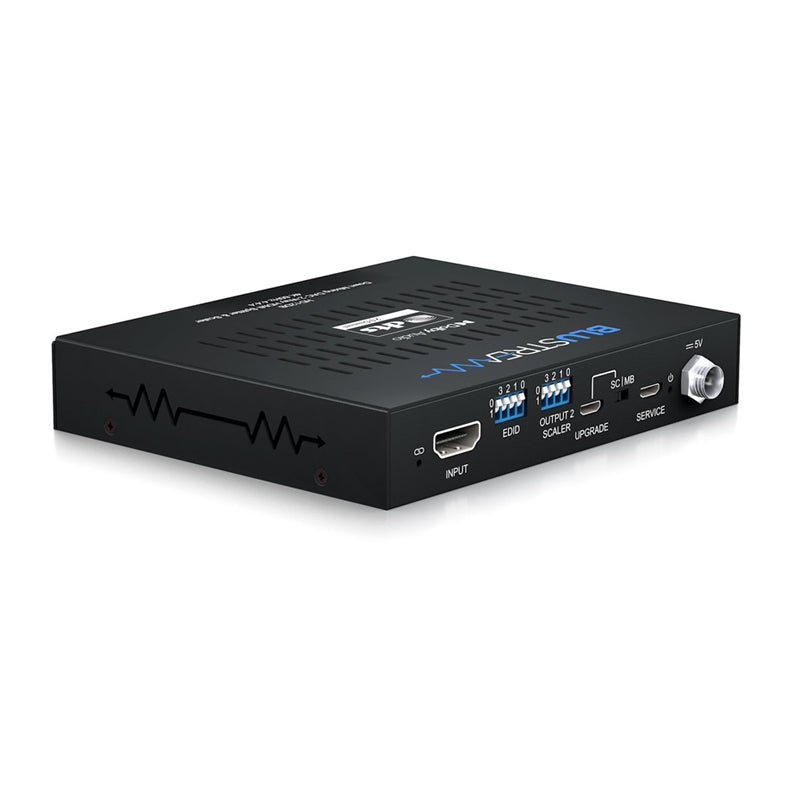

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

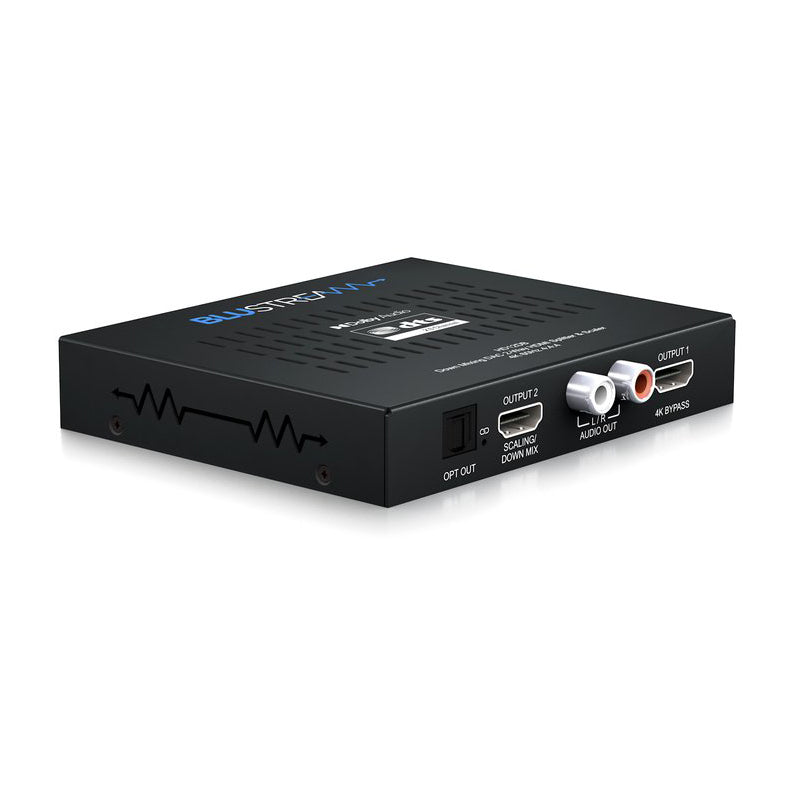

  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Optical (Toslink), 2x RCA analogue left / right
  • EDID: 4-pin DIP switch
  • Resolution: 4-pin DIP switch
  • Product Upgrade: 2 x Micro USB female
  • Dimensions (W x H x D): 127mm x 23mm x 104mm, without feet
  • Shipping Weight: 1.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/3A DC

Box Contents

  • 1 x HD12DB
  • 1 x 5V/3A DC Power Supply
  • 1 x Mounting Kit
  • 4 x Rubber Feet
  • 1 x Quick Reference Guide
