Key Features

• Features 3 operational modes:- 4x4 Seamless Switching Matrix (HDMI or VGA inputs)- Video Wall (2x2, 4x1 or 1x4 configuration)- Multi-Viewer mode with preset layouts
• Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)
• Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
• HDMI output resolution fixed to 1080p @60Hz
• Supports HDMI 2ch PCM audio only
• Discreet IR routing
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232, TCP/IP and the Blustream matrix App
• 3rd party control drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant

Specifications

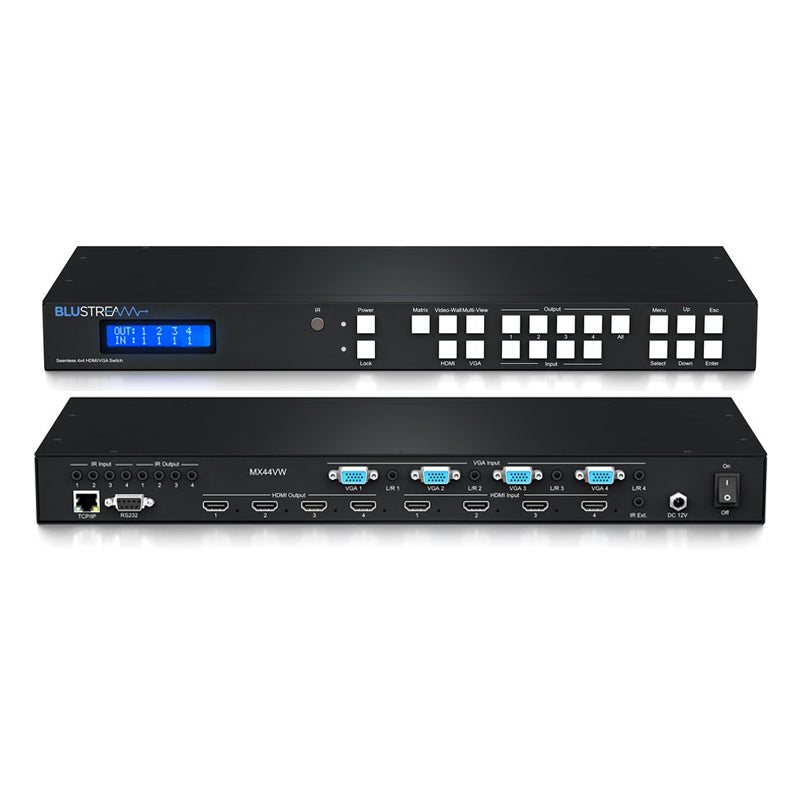

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking & 4 x VGA
• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking
• Audio Input Connectors: 4 x Analogue audio 3.5mm stereo Jack
• RS-232 Serial Port: DB-9, female
• TCP/IP Control: RJ45, female
• IR Input Ports: 5 x 3.5mm stereo jack
• IR Output Ports: 4 x 3.5mm mono jack
• Mounting kit included
• Casing Dimensions (W x H x D): 440mm x 45mm x 180mm
• Dimensions including connections (W x H x D): 440mm x 44mm x 187mm
• Shipping Weight: 4.0kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/3A DC

Box Contents

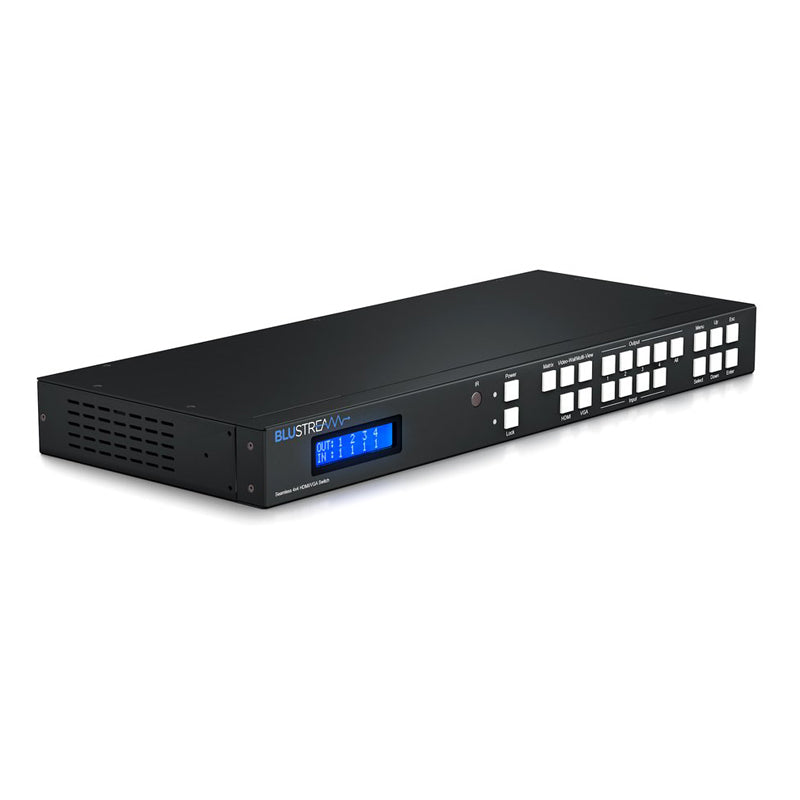

• 1 x MX44VW
• 1 x 12V/3A DC Power Supply
• 1 x Remote Control
• 1 x IR Control Cable - 3.5mm-3.5mm Cable
• 4 x IR Emitter
• 5 x IR Receiver
• 1 x Mounting Kit
• 1 x User Manual
