Technical Specifications

Description

Key Features:

  • Features 1x HDMI input that is replicated to 8x HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
  • CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
  • Advanced EDID management
  • HDCP 2.2 Support

Technical Specifications:

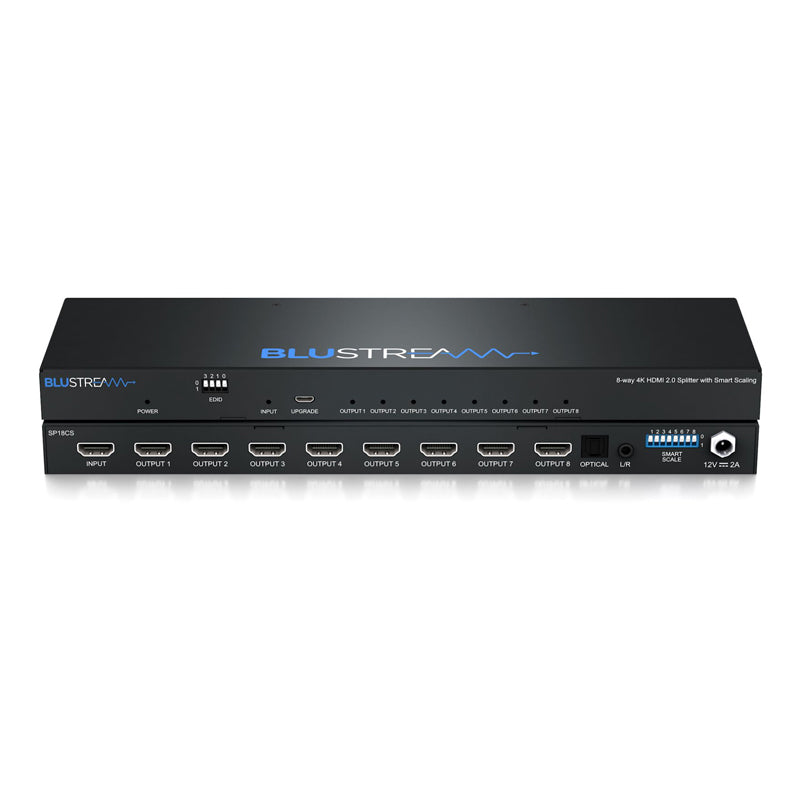

  • Video Input Connectors: 1x HDMI Type A
  • Video Output Connectors: 8x HDMI Type A
  • EDID: 4-PIN DIP switch
  • Smart Scale: 8-PIN DIP switch
  • Audio Output Connectors: 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
  • Dimensions (W x D x H): 300mm x 92mm x 23mm
  • Shipping Weight: 1.3kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC

Box Contents:

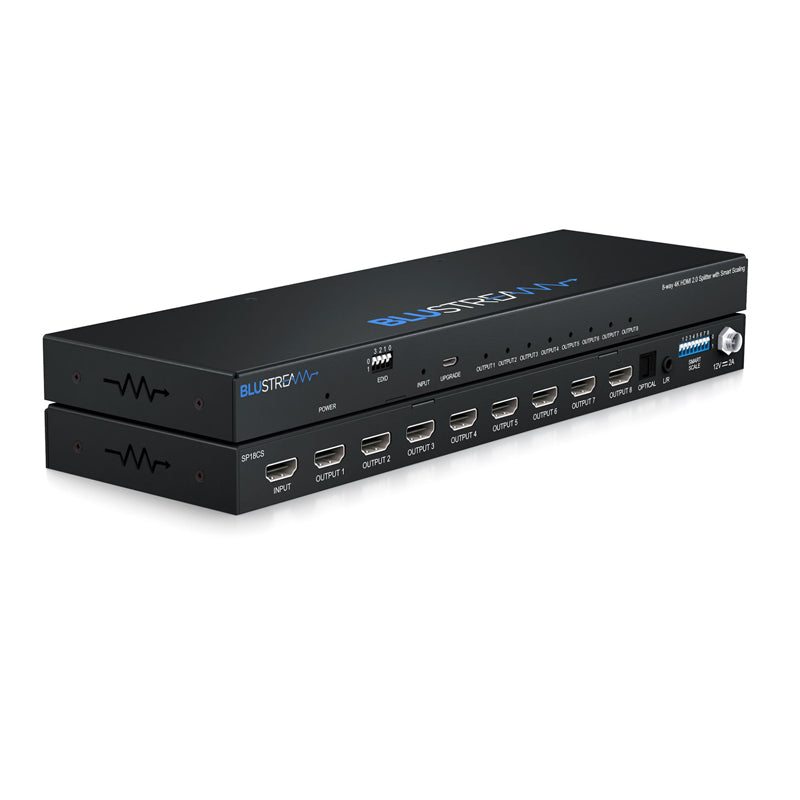

  • 1x SP18CS
  • 1x 12V/2A DC power supply
  • 1x Mounting Kit
  • 1x Quick Reference Guide
