Product Details

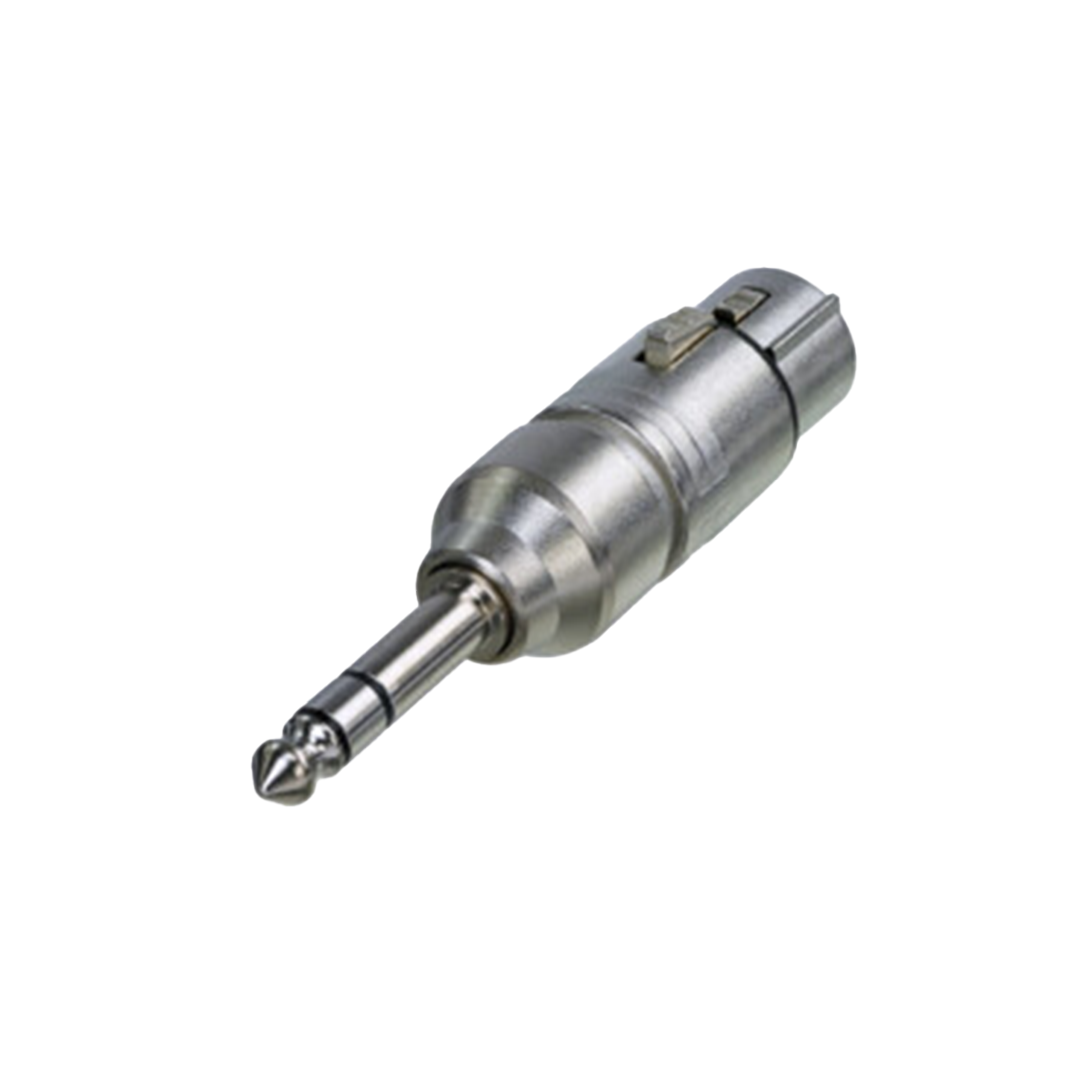

• Title: NA3FP
• Connection Type: Adapter

Electrical

• Contact resistance: ≤ 3 mΩ (XLR)
• Contact resistance: ≤ 6 mΩ
• Dielectric strength: 1.5 kV dc / > 1 kV dc (XLR/Plug)
• Insulation resistance: > 2 GΩ

Mechanical

• Wire size: –
• Locking device: Latch lock

Material

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn39Pb3) (plug)
• Insert: Polyamide (PA 6.6, 30% GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Galvanized Cu/Ni

Environmental

• Temperature range: -20 °C to +65 °C
