NC3MD-LX-B

Name: NC3MD-LX-B
Brand: Neutrik
SKU: NC3MD-LX-B
Price: 17.24 AED
Availability: InStock

Brand: Neutrik

Categories: Chassis Connectors

SKU: NC3MD-LX-B

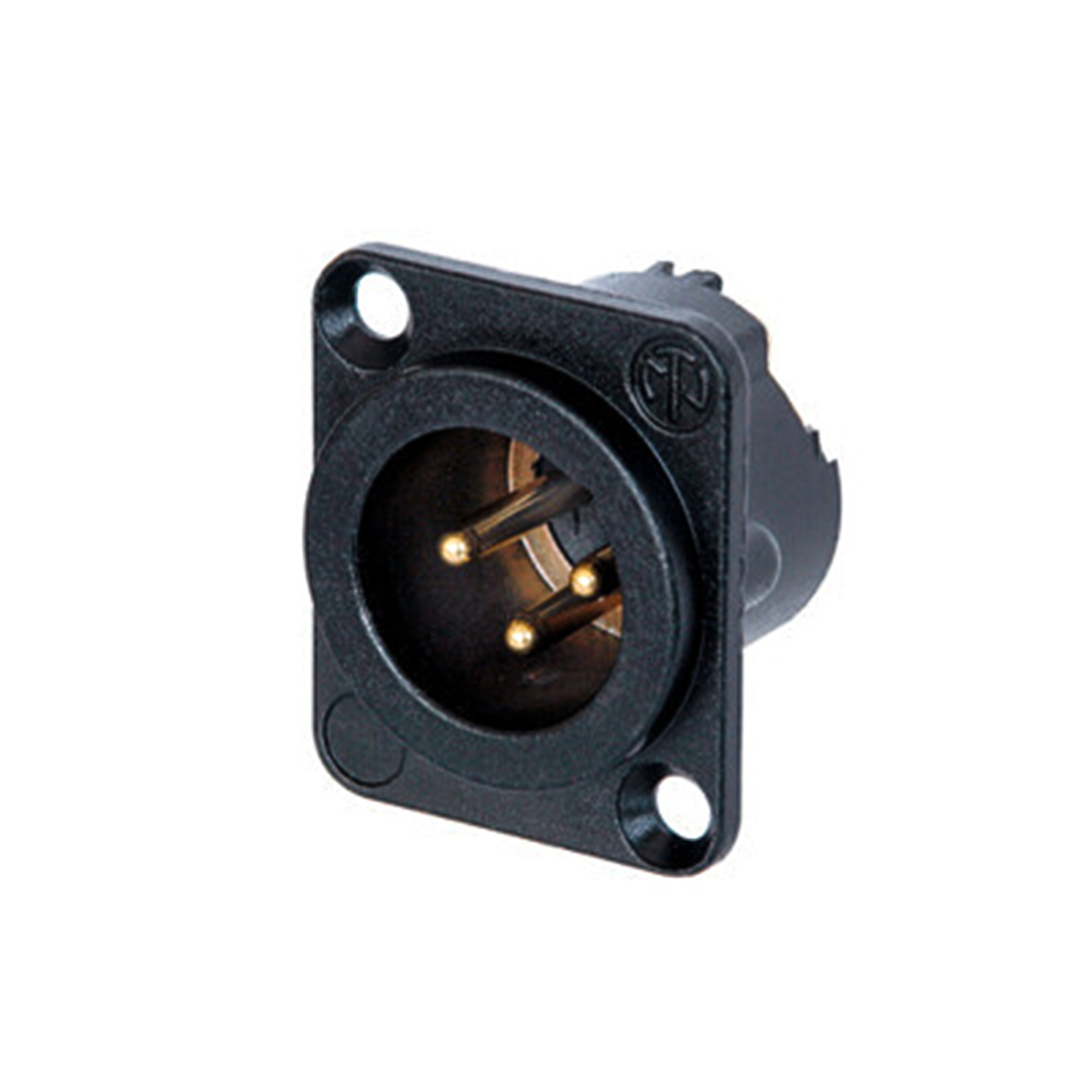

3 pole male receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Product variants

Need Help:

Pairs well with

NC3MD-LX-B

Dhs.17.24

Technical Specifications

Description

Product

Title: NC3MD-LX-BConnection Type: XLRGender: Male

Electrical

Capacitance between contacts: ≤ 4 pFContact resistance: ≤ 5 mΩDielectric strength: 1.5 kV DCInsulation resistance: > 10 GΩ (initial)Rated current per contact: 16 ARated voltage: < 50 V

Mechanical

Insertion force: ≤ 20 NWithdrawal force: ≤ 20 NLifetime: > 1000 mating cyclesWire size: max. 2.5 mm²Wire size: max. 14 AWGWiring: Solder contactsLocking device: Latch lockChassis shape: D

Material

Contact plating: 2 µm Au over 2 µm NiContacts: Brass (CuZn35Pb2)Insert: Polyamide (PA66)Locking element: Steel Ck67Shell: Zinc diecast (ZnAl4Cu1)Shell plating: Black KTL

Environmental

Flammability: UL 94 V-0Standard compliance: IEC 61076-2-103Protection class: IP40Solderability: Complies with IEC 68-2-20Temperature range: -30 °C to +80 °C
