Product Details

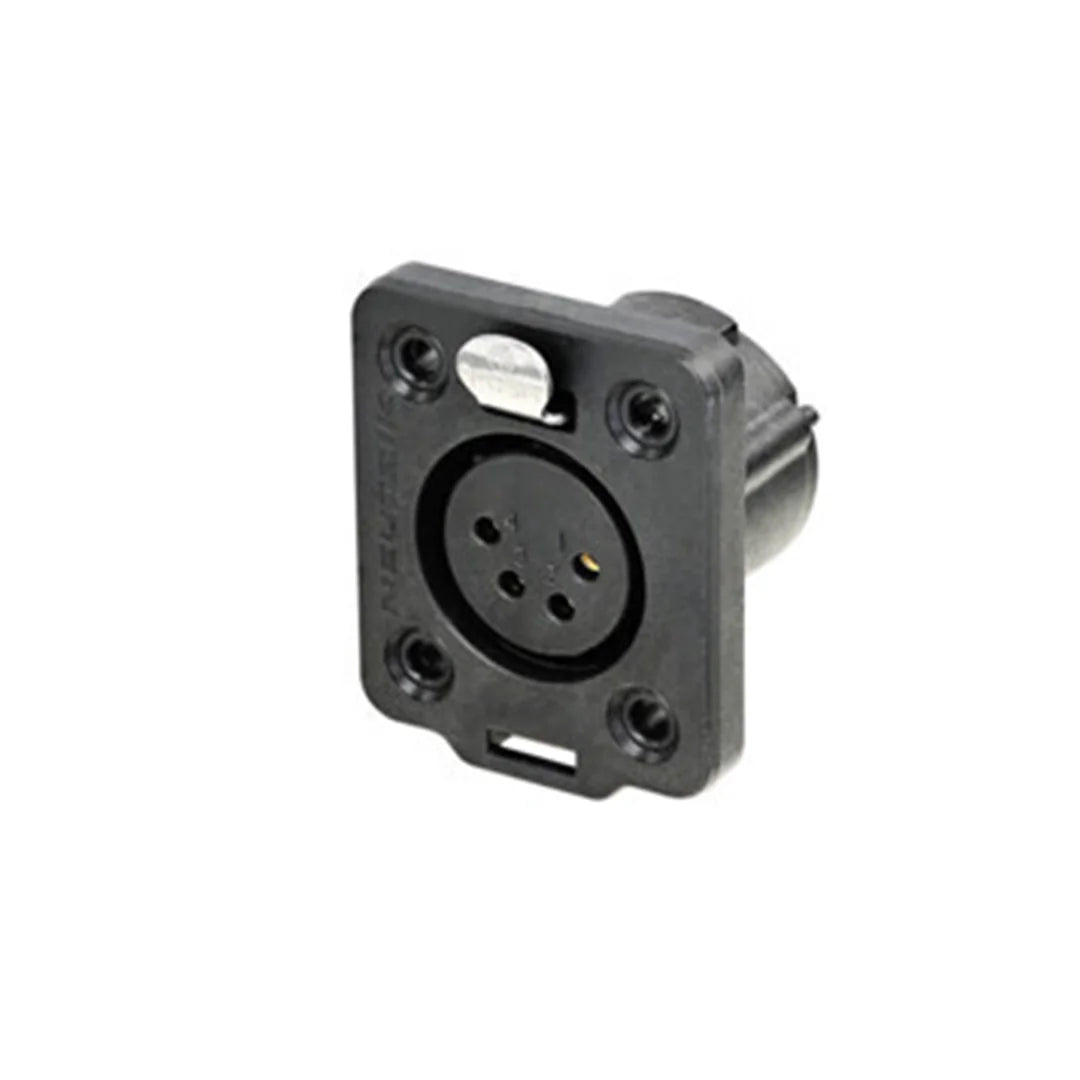

• Title: NC4FDX-TOP
• Connection Type: XLR
• Gender: Female

Electrical

• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 10 A
• Rated voltage: 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: Front mounting
• Chassis shape: D

Material

• Contact plating: Gold (Au) over Nickel (Ni)
• Contacts: Brass
• Insert: Polyamide
• Locking element: Stainless steel
• Gasket: TPE
• Shell: Polyamide

Environmental

• Flammability: UL94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP65 (IEC 60529)
• Solderability: IEC 60068-2-20
• Temperature range: -30 °C to +80 °C
• Pollution degree: II (IEC 60664-1)
