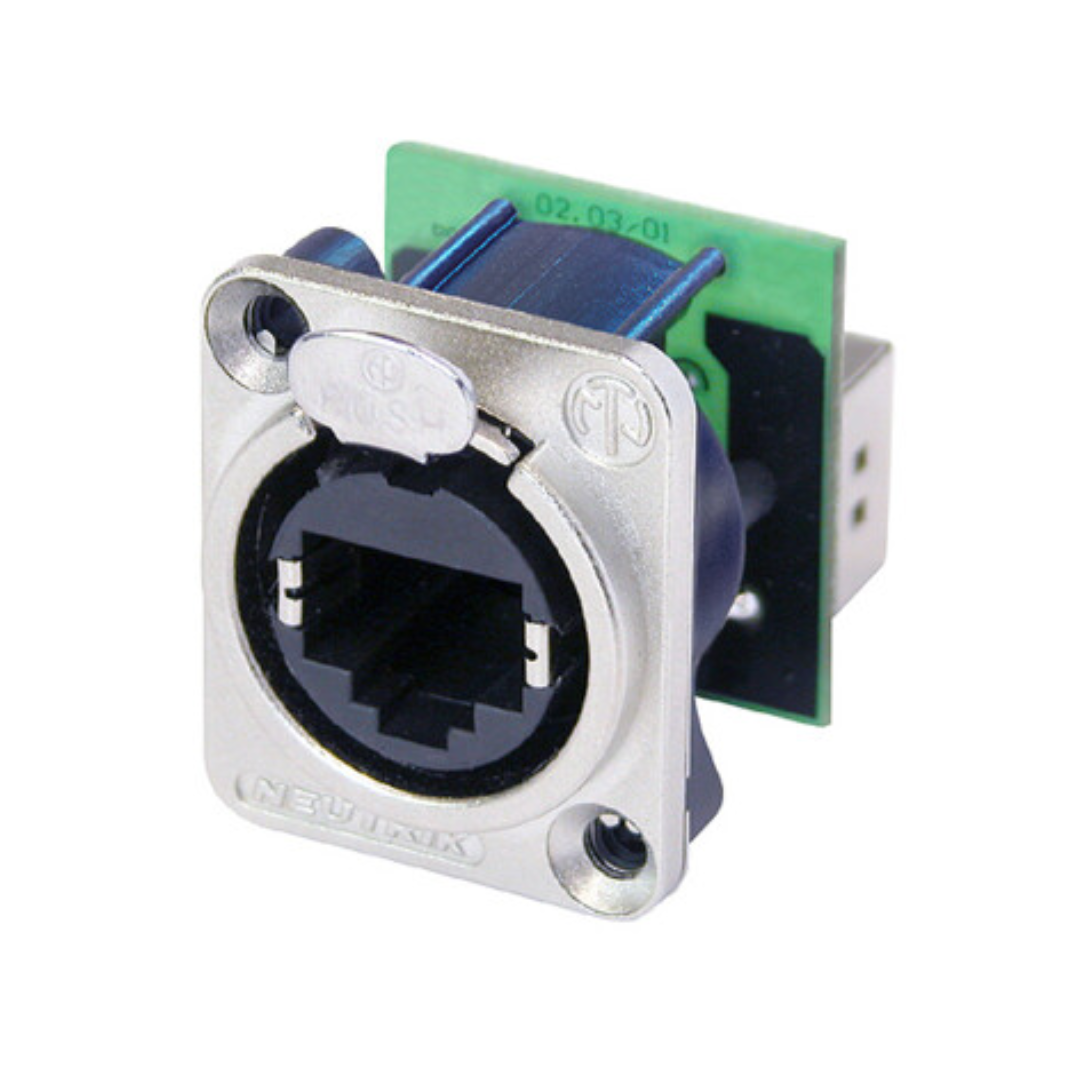

Key Features

• Accommodates NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Mountable from the front or rear of the panel
• CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Technical Information

Product

• Gender: Female

Electrical

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequency range: 1 - 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT5e acc. to TIA/EIA 568A/B component specifications, CAT5e acc. to ISO/IEC 11801 component specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical

• Insertion force:  ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: Max. 4 mm 0.16'
• Wiring:  Feedthrough
• Locking device:  Latch lock
• Chassis shape: D

Material

• Contact plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Locking element plating: Nickel

Environmental

• Flammability: UL 94 V-0
• Temperature range: -30 °C to +80 °C
• Standard compliance:   -ISO/IEC 11801-1 Ed. 1.0 (2017-11)- IEC 60603-7-3 Ed.2.0 (2010-04) -IEC 60512-99-002 Ed.2.0 (2022-01)- IEC 60512-9-3 (2011-06)
