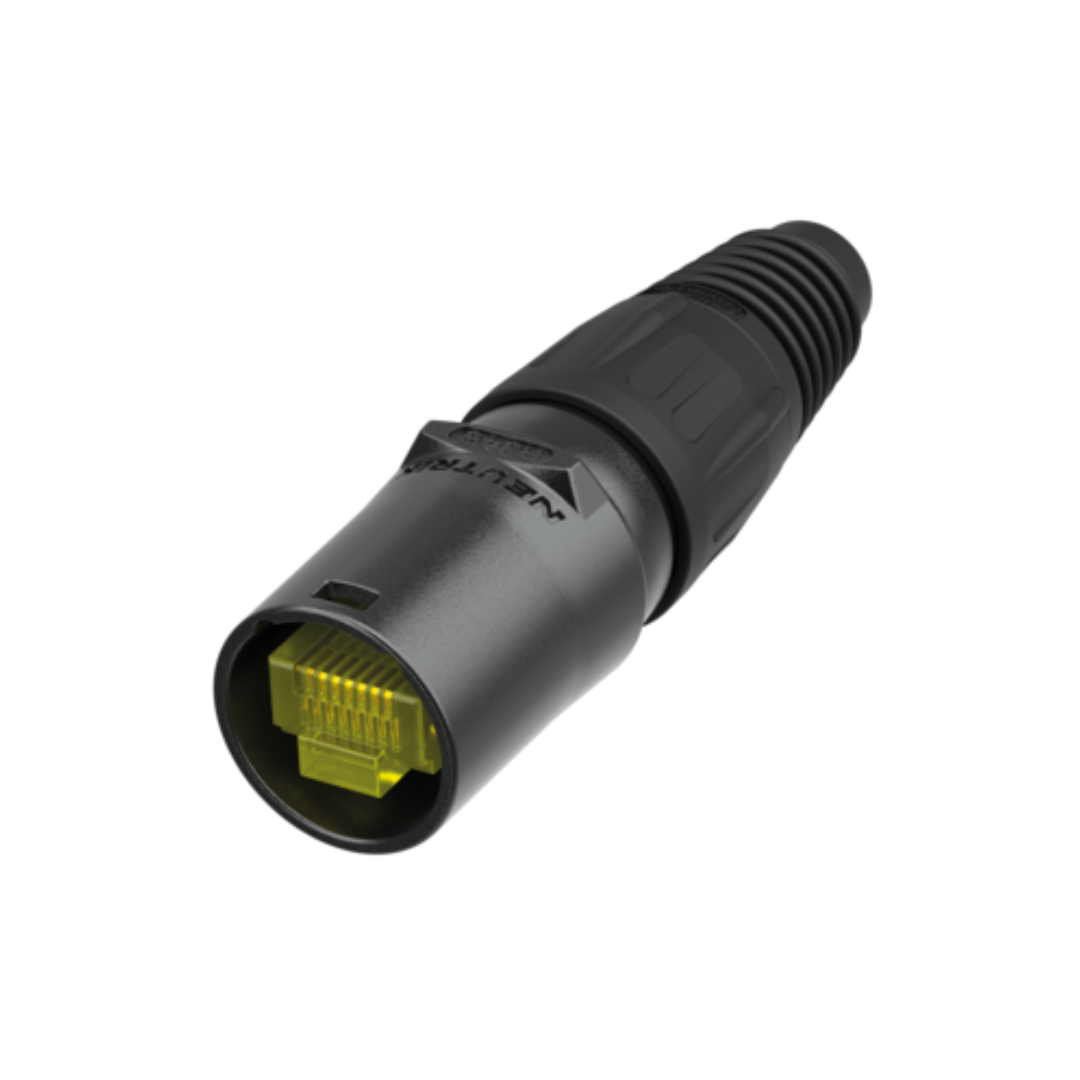

NE8MX-B-1 - ETHERCON CABLE HOUSING BLACK

Name: NE8MX-B-1 - ETHERCON CABLE HOUSING BLACK
Brand: Neutrik
SKU: NE8MX-B-1
Price: 9.76 AED
Availability: InStock

Brand: Neutrik

Categories: Ethernet

SKU: NE8MX-B-1

Cable connector carrier consists of a black chromium shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non-pre-assembled cables only. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Product variants

Need Help:

Pairs well with

NE8MX-B-1 - ETHERCON CABLE HOUSING BLACK

Dhs.9.76

Technical Specifications

Description

Key Features

The RJ45 system for harsh and demanding environment
Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
Rugged diecast shell and unique chuck type strain relief
Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
Flat spot on the housing for better orientation.
Allows assembly of non-pre-assembled conventional RJ45 cables
Accessories include color coded boots in 9 standard colors

Technical Information

Product

Gender: Male

IMPORTANT: Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical

Cable O.D.: 3.5 - 8 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles

Material

Boot: Polyamide (PA 6)
Shell: Zinc diecast (ZnAl4Cu1)
Shell coating: Black KTL
Strain relief: Polyacetal (POM)

Environmental

Temperature range: -30 °C to +80 °C
