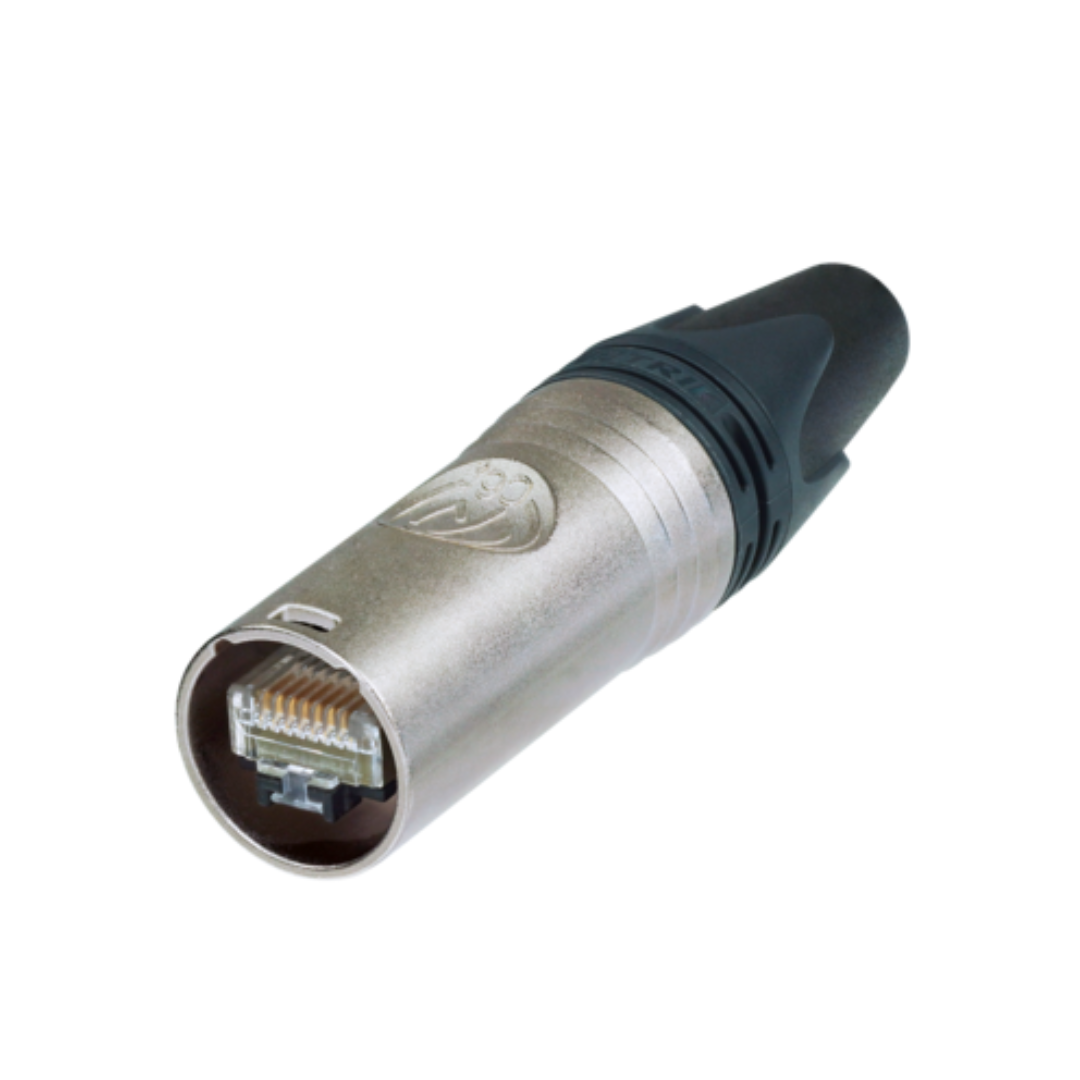

NE8MX6 - ETHERCON CABLE CON CAT6A

Name: NE8MX6 - ETHERCON CABLE CON CAT6A
Brand: Neutrik
SKU: NE8MX6
Price: 64.37 AED
Availability: InStock

Brand: Neutrik

Categories: Ethernet

SKU: NE8MX6

etherCON CAT6_A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating. The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6_A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded). Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B. If the insulation diameter is ≤ 1.1 mm, please refer to NE8MX6-T.

Product variants

Need Help:

Pairs well with

NE8MX6 - ETHERCON CABLE CON CAT6A

Dhs.64.37

Technical Specifications

Description

Key Features

Ruggedized connector with CAT6 component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
PoE++ compliant according to 802.3bt Type4
IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Unique Neutrik chuck-type strain relief

Technical Information

Product

Gender: Male

Electrical

Dielectric strength: 1 kVdc
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1.5 A
Transmission performance: CAT6A, acc. TIA/EIA rating- CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet: PoE++ acc. IEEE 802.3bt

Mechanical

Cable O.D.: 7.0 - 9.5 mm
Lifetime: > 1000 mating cycles
Wiresize: AWG 24/1 - AWG 22/1 (solid)- AWG 24/7 - AWG 22/7 (stranded)
Locking device: Latch lock
Insulation diameter: 1.1 - 1.6 mm

Material

Bushing: PA / PU
Contact plating: Au
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: POM

Environmental

Protection class: IP 65 (in combination with NE8FDX-*6-W)
Temperature range: -40 °C to +70 °C
