• IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Extremely robust and reliable cable retention
• Lockable, single-phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
• Superior NEUTRIK quality standard

Technical Information

Product

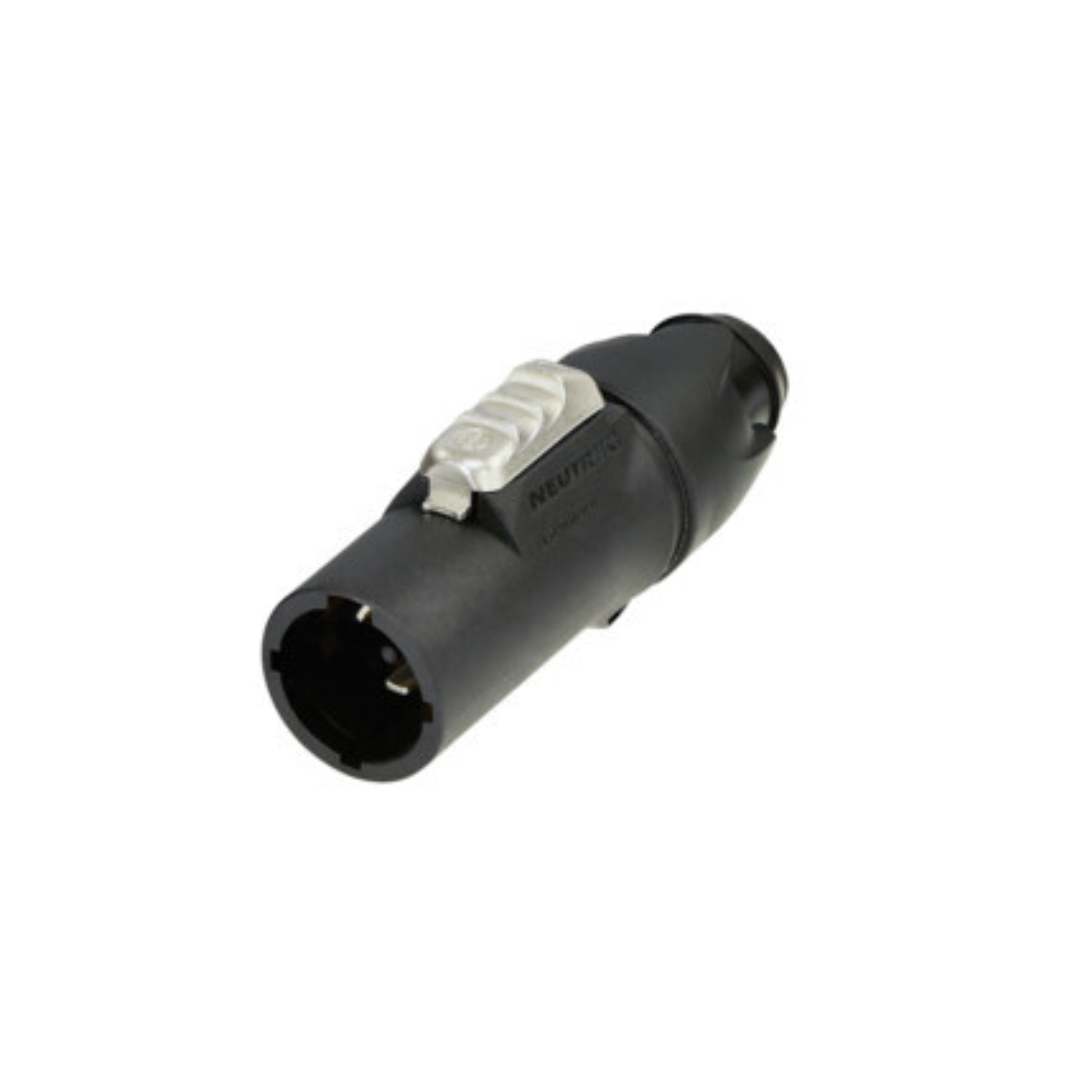

• Connector series: powerCON TRUE1TOP

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: 0.1 GΩ (after damp heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC

Mechanical

• Cable O.D.: 6 - 12 mm (0.23 – 0.47 inches)
• Lifetime: > 5000 mating cycles
• Wiresize: 1.0 - 2.5 mm²
• Wiresize: 12 AWG

Material

• Contact plating: 2 µm Ag
• Contacts: CuNi1Si0.2
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: ZuAl4Cu1
• Shell: Polyamide (PA 6.6 30 % GR)
• Strain relief: Polyacetal (POM)

Environmental

• Flammability: UL 94 V-0
• Temperature range: -30 °C - +80 °C
