Technical Specifications

Description

General Information

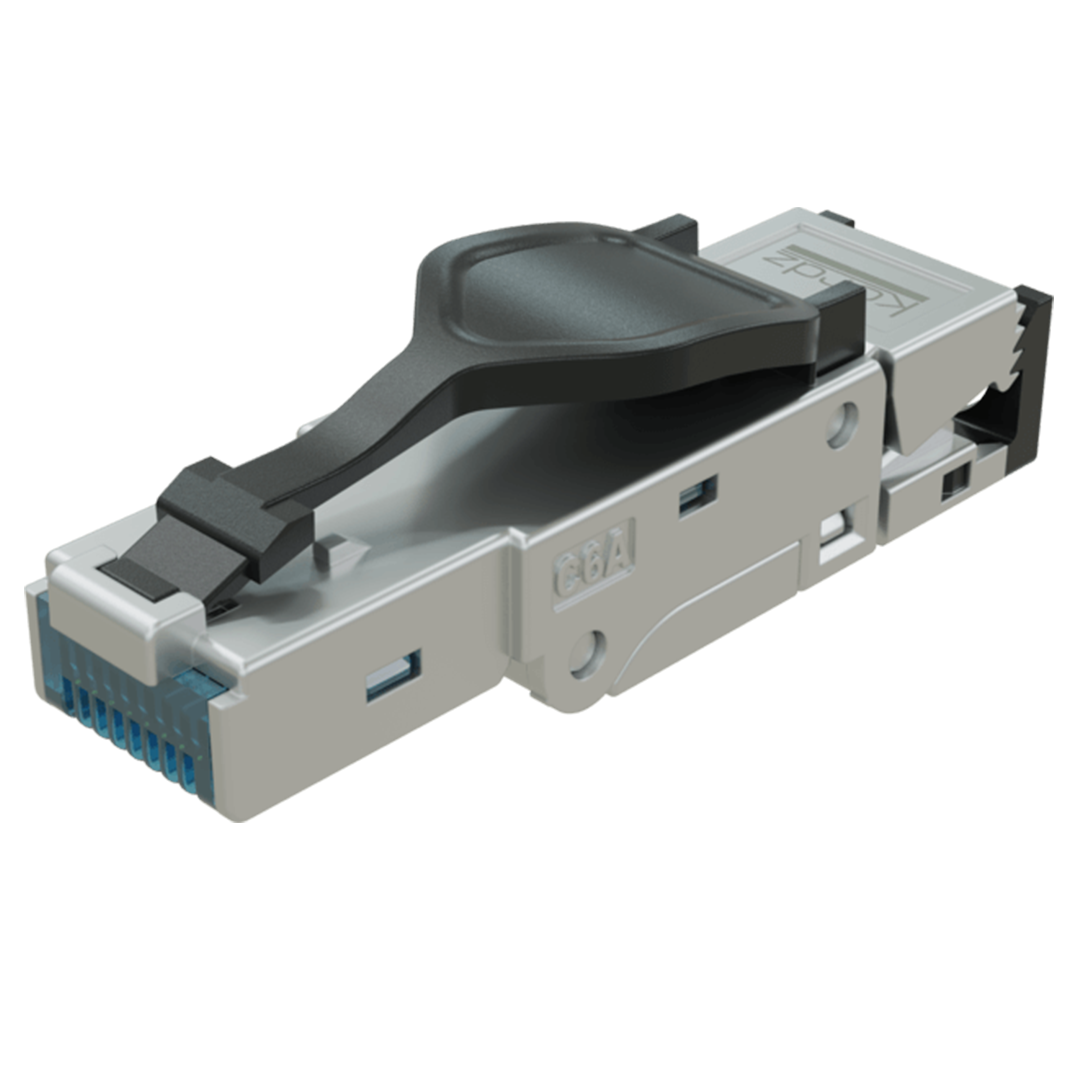

Connector Part No.: T3R45M-C6AS-MEPerformance Standard: ANSI/TIA 568.2-D Category 6ABuild Comforms to: IEC60603-7-4Keystone Body Material: Zinc-alloy Die-castFlammability Rating: UL 94 V-0Contact Type IDC (insulation-displacement contact)Contact Material: Phosphorus Bronze with 50µ” gold-platingRecommended Panel Cutout Dimensions: 14.8mm x 19.3mm ± 0.1mmRecommended Cable: Kordz ONE-CAT6A (Shielded Category 6A)Conductor diameter min: 26AWG | Ø5.5mmmax: 23AWG | Ø8.0mmMaximum Cable Diameter:8.5mm

Mechanical

Keystone Body Length: 37.70mm | 14.8inKeystone Body Width: 17.10mm | 6.7inKeystone Body Height: 23.64mm | 9.3inPanel Mating Height: 16.10mm | 6.3inPanel Mating Width: 14.50mm | 5.7in
