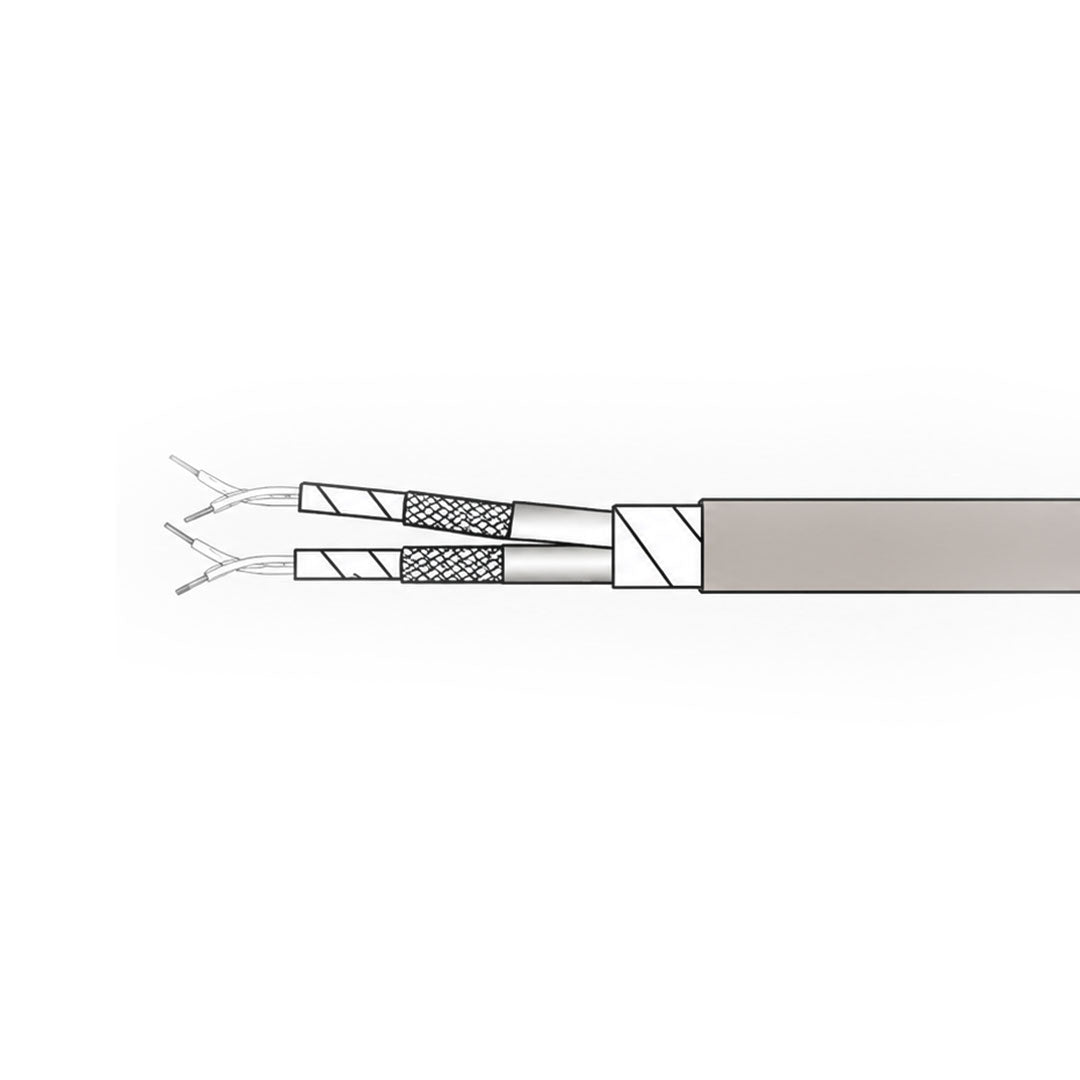

The RDMX02SF is a 2 pairs DMX with super flex jacket, 120 Ohm and W=12,70mm.

Data transmission RS485 protocol, light control (DMX).

Product Features:

• Conductor material: Bare copper
• Insulation material: Polyethylene red/nat + tape (alu/poly)
• Outer shield material: Tinned copper braid, coverage > 90% + drain wire
• Outer jacket material: SuperFlex PVC grey
• Overall diameter: 12.70 mm
• Operating temperature range: -20 / +70 Deg. Celsius
• Conductor DC resistance: < 56 Ohm/Km
• Shield DC resistance: < 19 Ohm/Km
• Insulation resistance: > 10000 Mohm*Km
• Capacit. Cond./Cond: .52 pF/m
• Impedance: 120 Ohm
• Inductance:< 0.6 mH/Km
• Test Voltage: 1000 V
