Technical Specifications

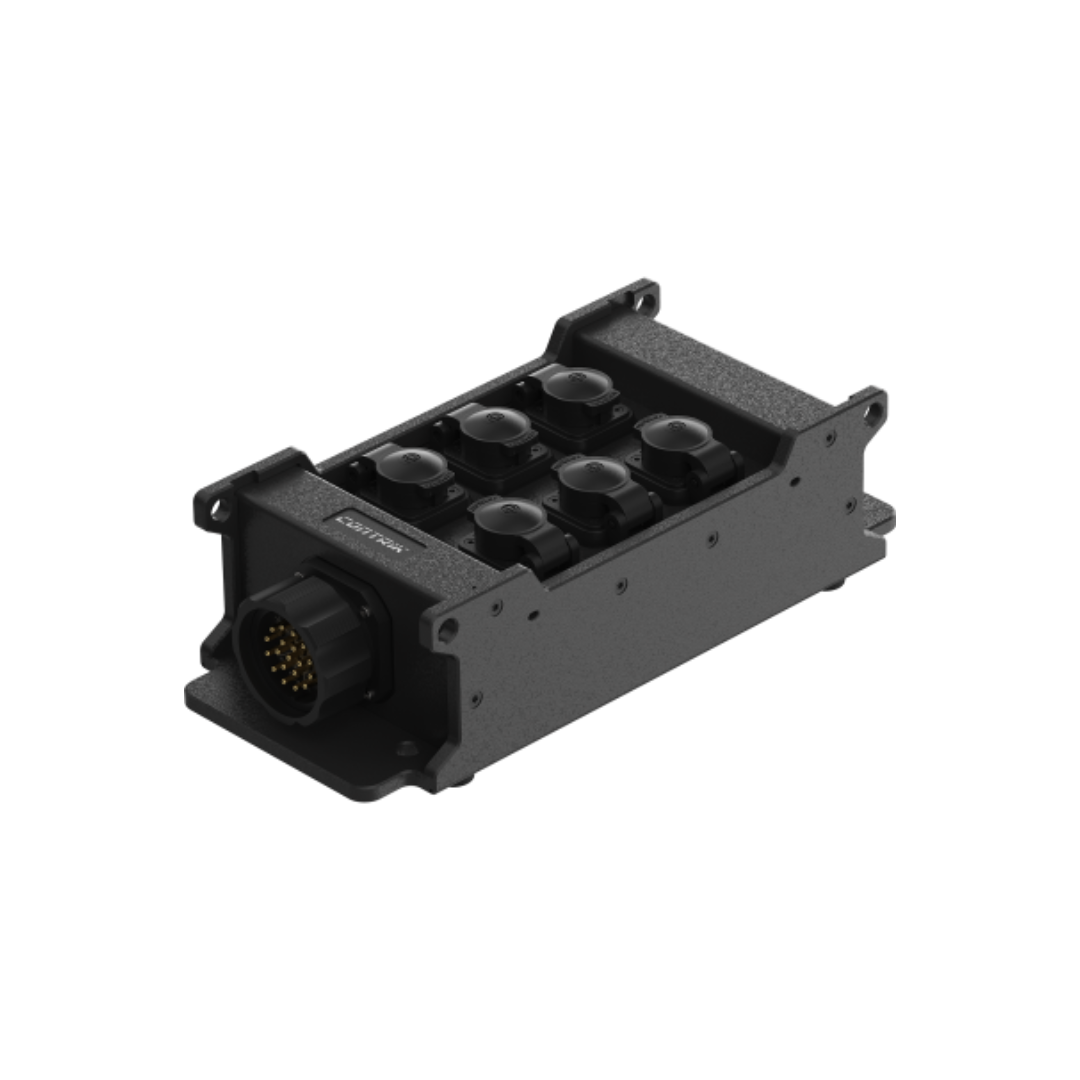

Description

Key Features:

  • Reduction of cabling volume and effort due to Socapex 419 compatible multipin Input / Daisy-chain.
  • High mechanical protection: Rugged Easylen® housing with high IK, full connector protection with housing elements.
  • Xtreme Outdoor protection: IP65 with Socapex 419 compatible in mated condition, sealing caps
  • Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.
  • Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
  • Versatile mounting options: mounting wholes for pegs and suspension, truss clamp

Applications:

  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios

Technical Specifications:

Product

  • Input device: 1x Socapex 419 compatible (6 channels)
  • Output device: 6x powerCON® TRUE1® TOP with self-closing caps

Electrical

  • Contact resistance / protection class Dielectric strength: Protection class II
  • Dielectric strength: 0,5 kV / mm
  • Rated voltage: 250V AC
  • Rated Current: 16A

Mechanical

  • Conductor cross section: 2,08 mm²
  • Mounting options: Truss clamp (M10), mounting wholes for pegging or suspension
  • Type of construction: Stackable
  • Dimensions: 150 x 95,25 x 330mm

Material

  • Housing: Easylen
  • Color: black

Environmental

  • Protection class: IP65 with Socapex 419 compatible connector in mated condition
  • Temperature range: -25 °C bis +40 °C
  • Flammability acc. to UL 94: V0
