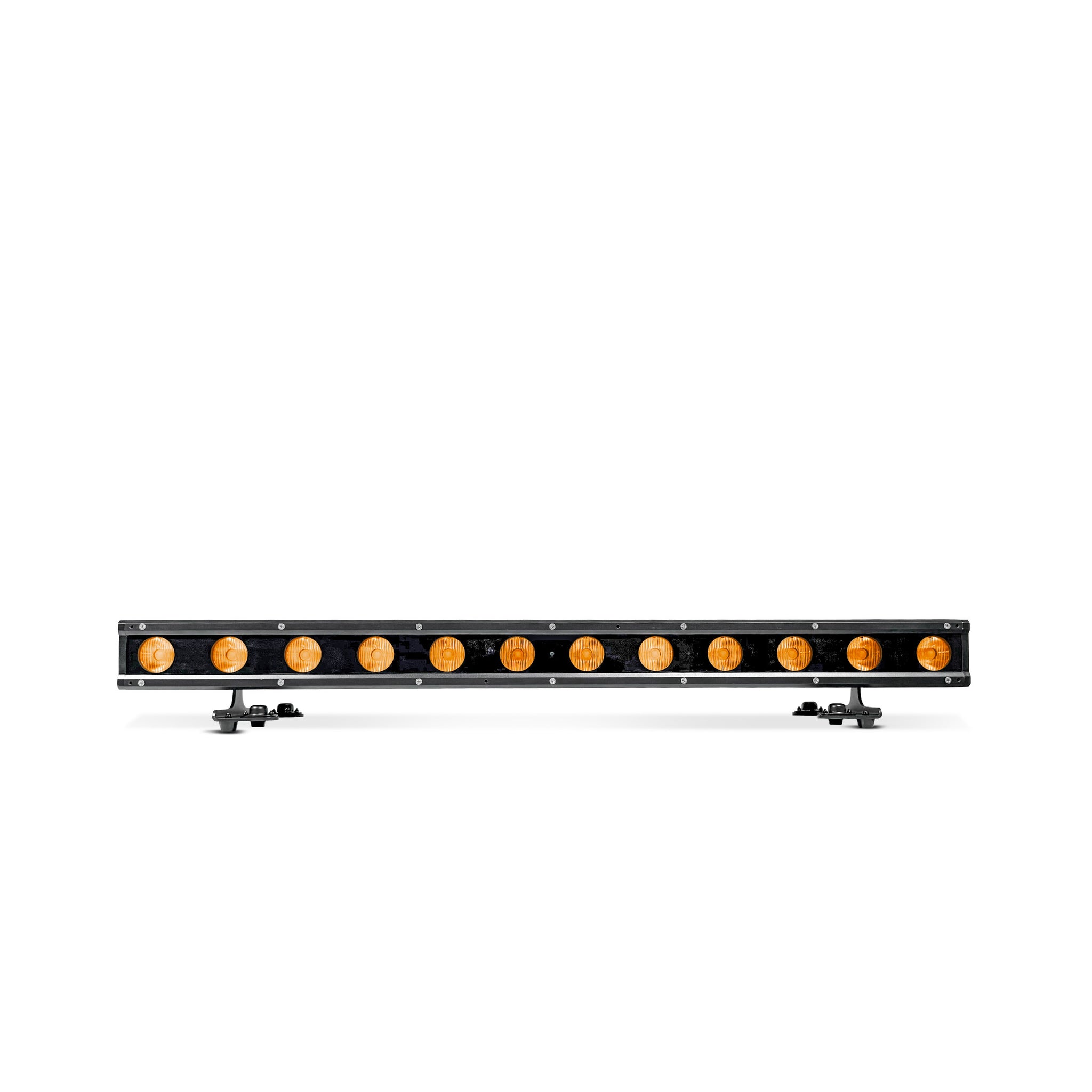

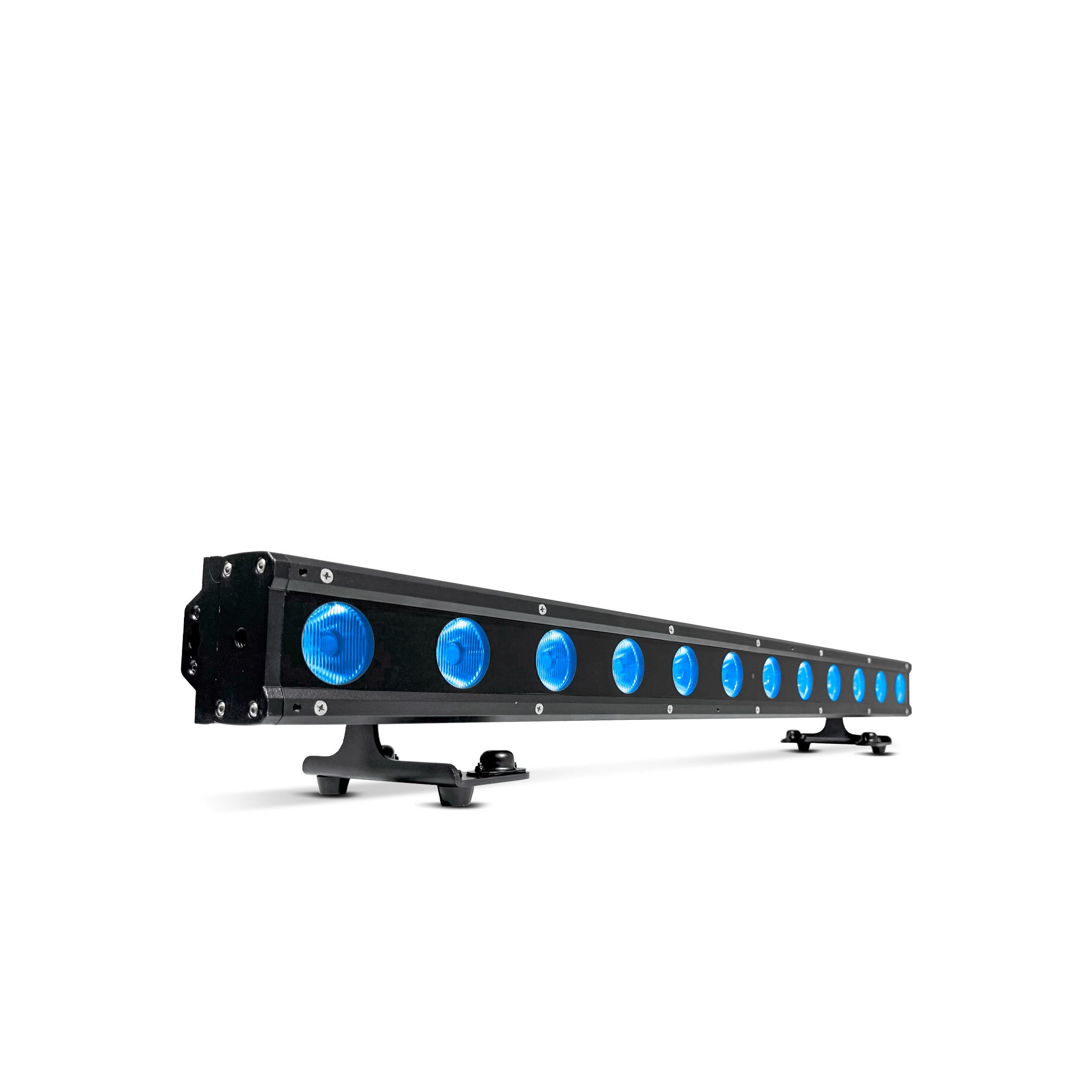

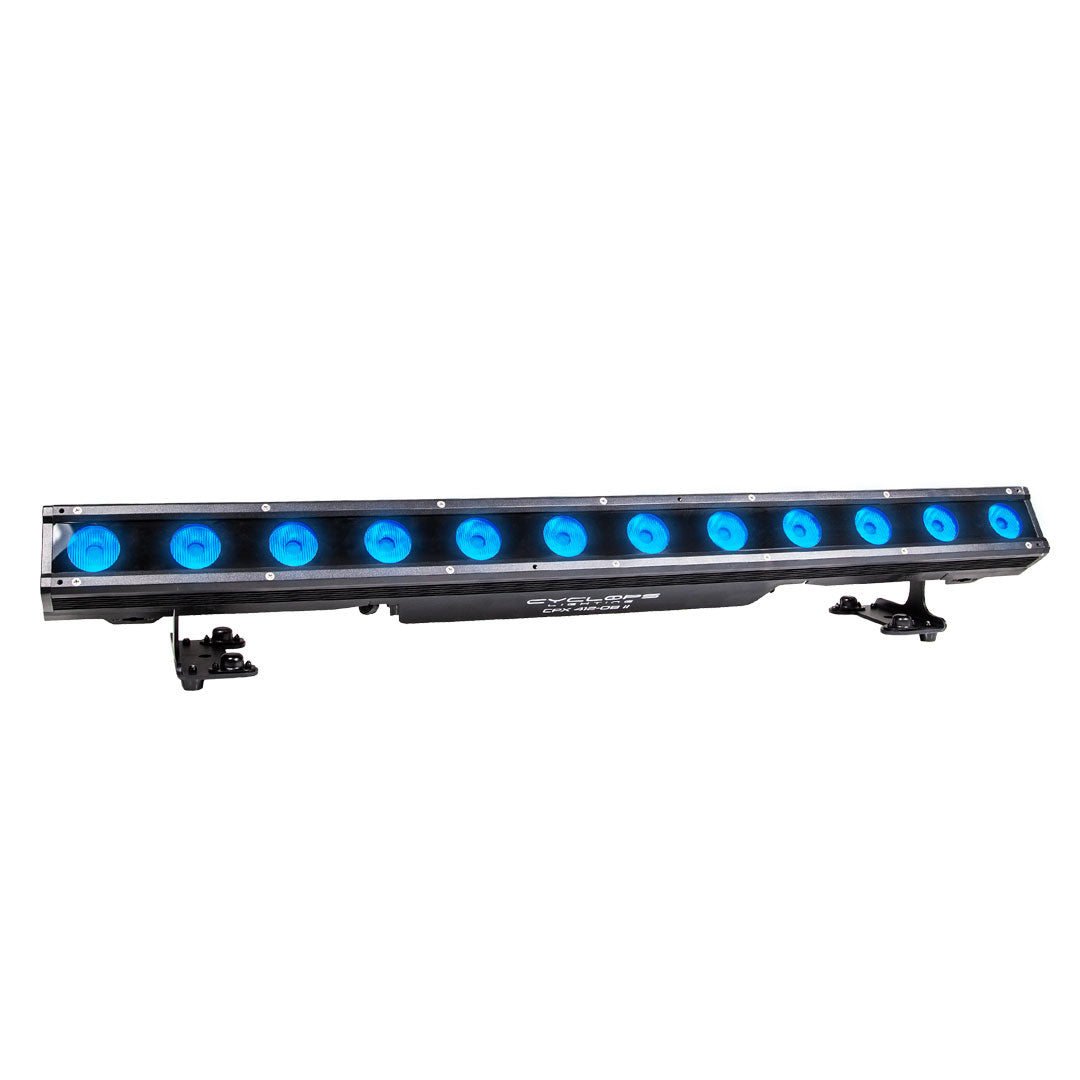

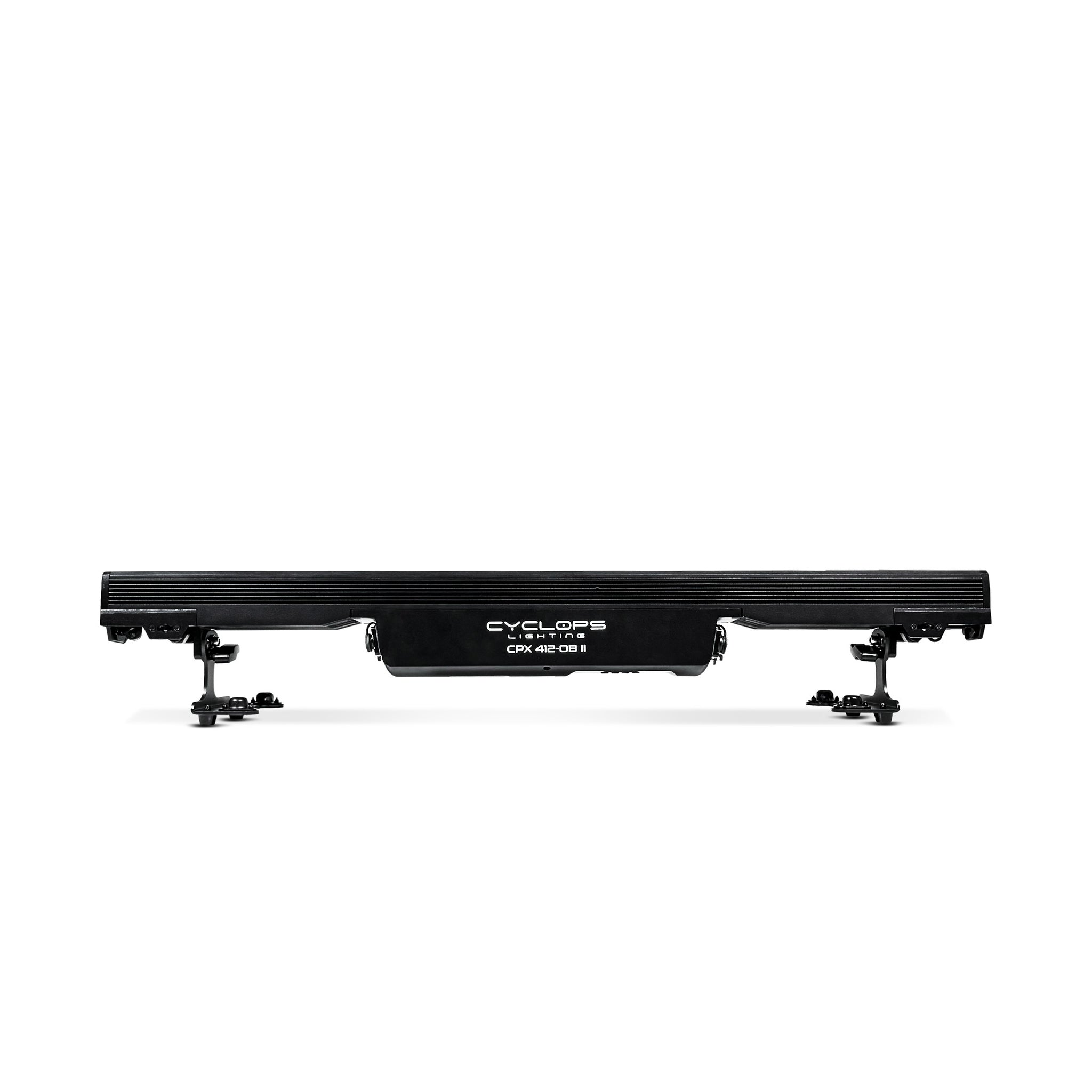

CPX 412OB-II - Outdoor RGBW LED Wash Bar

CPX 412OB-II - Outdoor RGBW LED Wash Bar

Name: CPX 412OB-II - Outdoor RGBW LED Wash Bar
Brand: Cyclops Lighting
SKU: CPX412OB-II
Price: 1976.11 AED
Availability: InStock

Dhs.1,976.11

Brand: Cyclops Lighting

Categories: LED Bars

SKU: CPX412OB-II

CPX 412OB-II is an outdoor pixel controlled RGBW LED wash bar. It is brighter and with a better color mixing from its precedent. With 12 high performance LEDs that can be controlled individually and fast lock seamless installation, this IP65 bar is also a great
pixel mapping show LED bar for any theatre and stage application in addition of outdoor
architectural application.

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

CPX 412OB-II - Outdoor RGBW LED Wash Bar

Dhs.1,976.11

Technical Specifications

Description

SOURCE

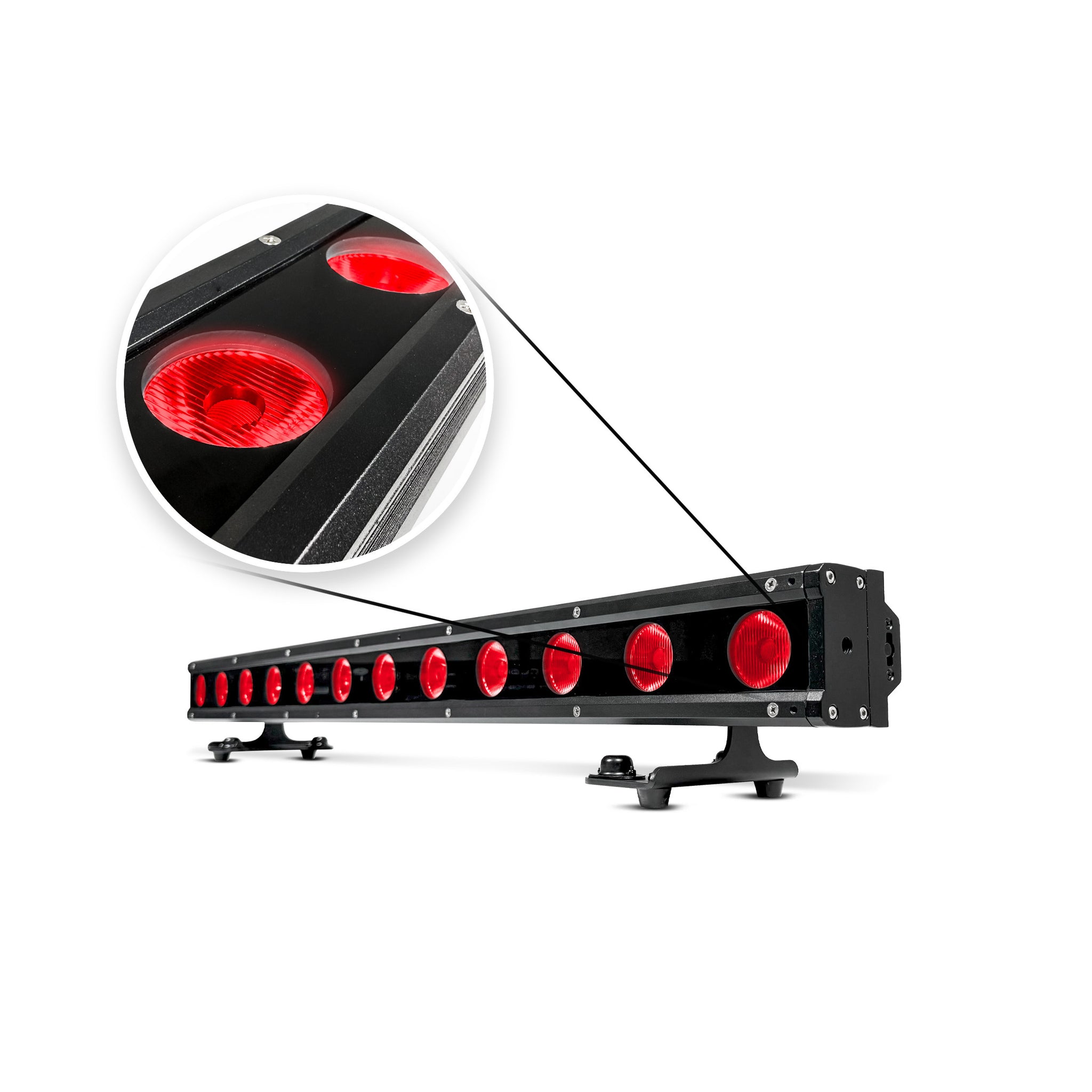

Light Source: 12 x 15 watts 4 in 1 RGBW LEDs
LED Life Expectancy: 50,000 h

OPTICAL SYSTEM

Beam angle: 45° x 15°
Light output: 10,000 Lm
Illuminance: 3,899 Lux @ 2m @ 45°

COLORS

Color Mixing: RGBW

DYNAMIC EFFECTS

Dimmer: Linear adjustment
Effects: Strobe and Fade effect
Macros: Built-in color and dynamic macros

CONTROL & PROGRAMMING

Control Channels: 3, 4, 5, 8, 10, 48, 51 CHs
Control Protocols: DMX, RDM

THERMAL MANAGEMENT

Operating Temperature: -20°C/45°C

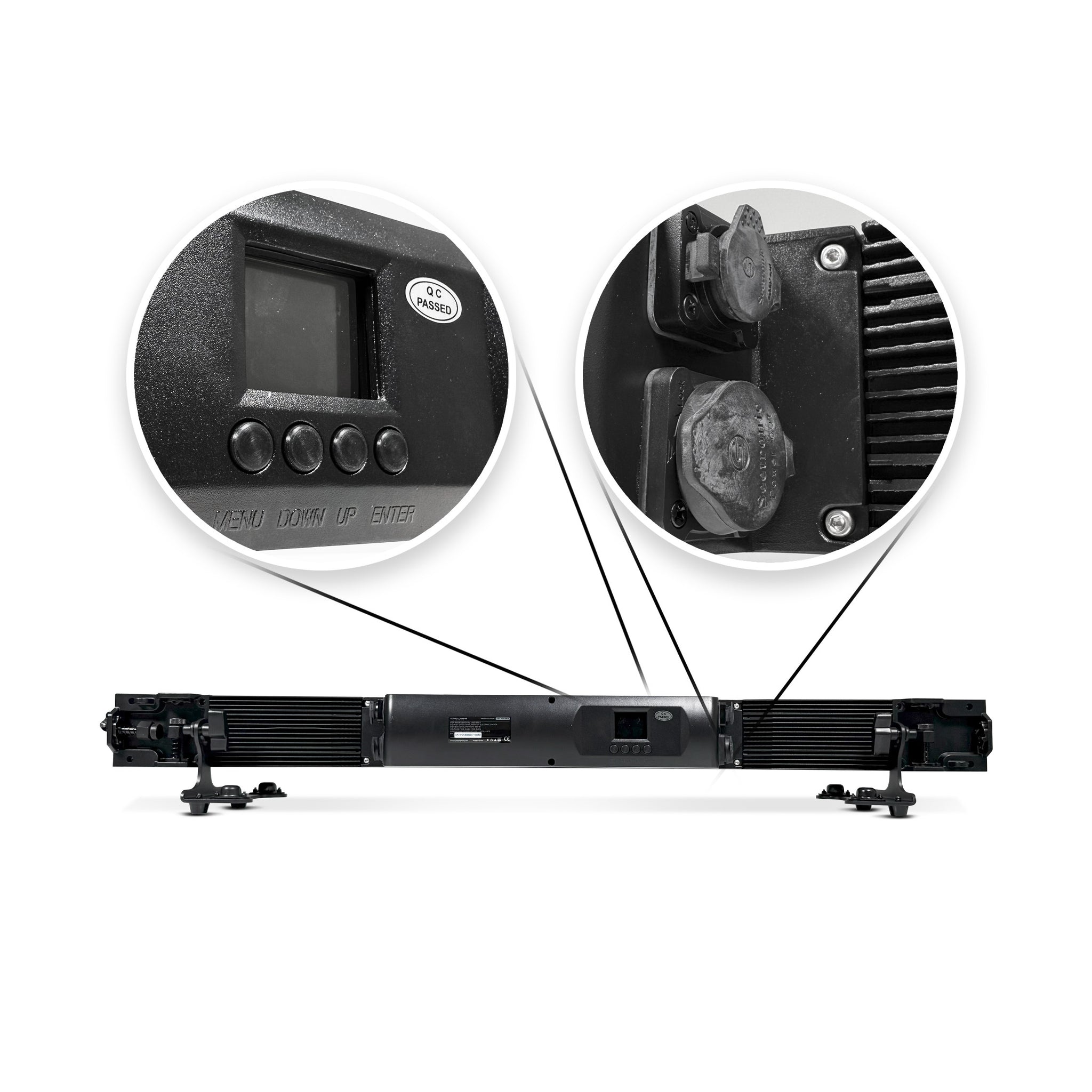

CONNECTIONS

Power Connections: IP power In/Out connectors
DMX Connections: IP DMX In/Out 3 pin connectors

ELECTRICAL

Input Voltage: 100-240V/50-60Hz
Power Consumption: 200W

PHYSICAL

Dimensions: 1017 x 140 x 215.3 mm
Net Weight: 9.1 Kg
Housing: Die cast and extruded aluminum
Housing Color: Black
IP Rating: IP65

Downloads

CPX-412OB-II-User-Manual.pdf
