Technical Specifications

Description

SOURCE

  • Light source: 300 watts white COB LED (cool white or warm white)
  • 1000-1800W tungsten equivalent
  • LED life expectancy: 50,000 Hrs
  • Color temperature: 3200 K
  • CRI: 97, R9:≥90
  • TLCI≥ 98

OPTICAL SYSTEM

  • Zoom range: 15° to 50° motorized
  • Light output: 3200K 8340lux @5m 8°

 CONTROL & PROGRAMMING

  • 5 Dimmer curves
  • Color: Warm white
  • Control protocols: Rotary, DMX, RDM
  • Control channels: 1, 2, 3, 4 CHs
  • Flicker free with selectable PWM

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

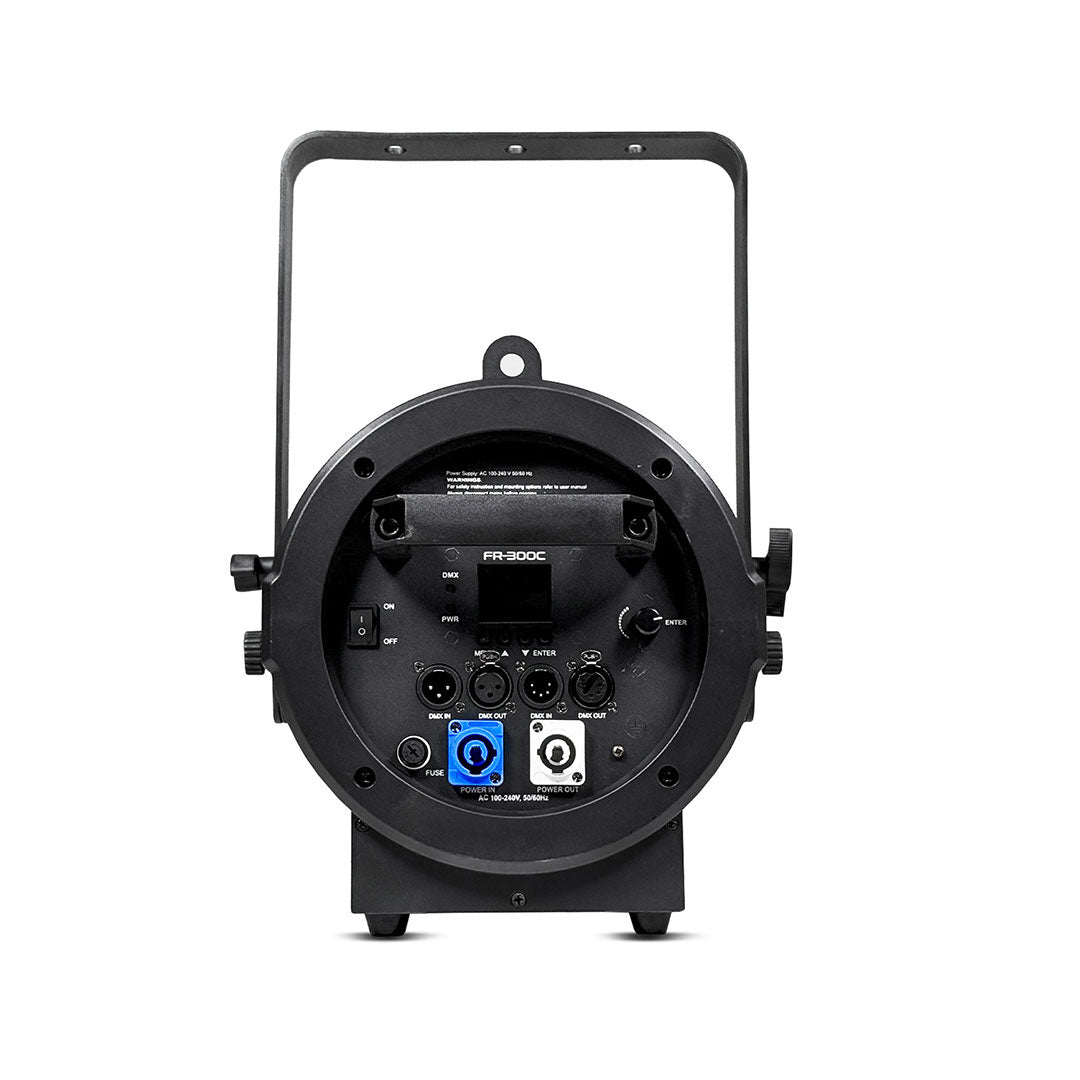

  CONNECTIONS

  • AC connection: PowerCON In/Out
  • DMX data in/out: 3 pinand 5 pinXLR In/Out male and female

PHYSICAL

  • Dimensions: 428 x 295 x 451mm

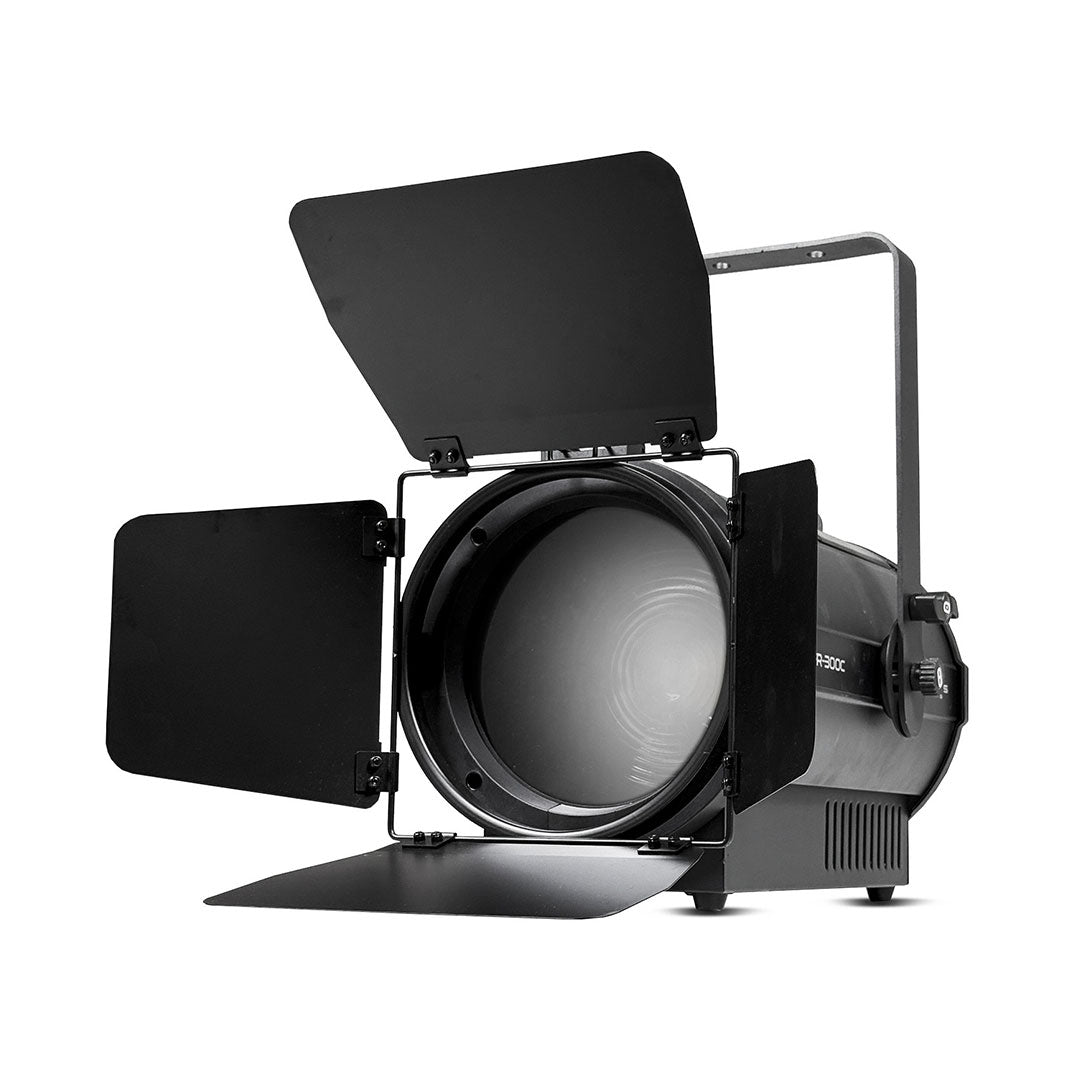

  • Net weight: 11 Kg (including barn door)
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
