Technical Specifications

Description

The kit includes:

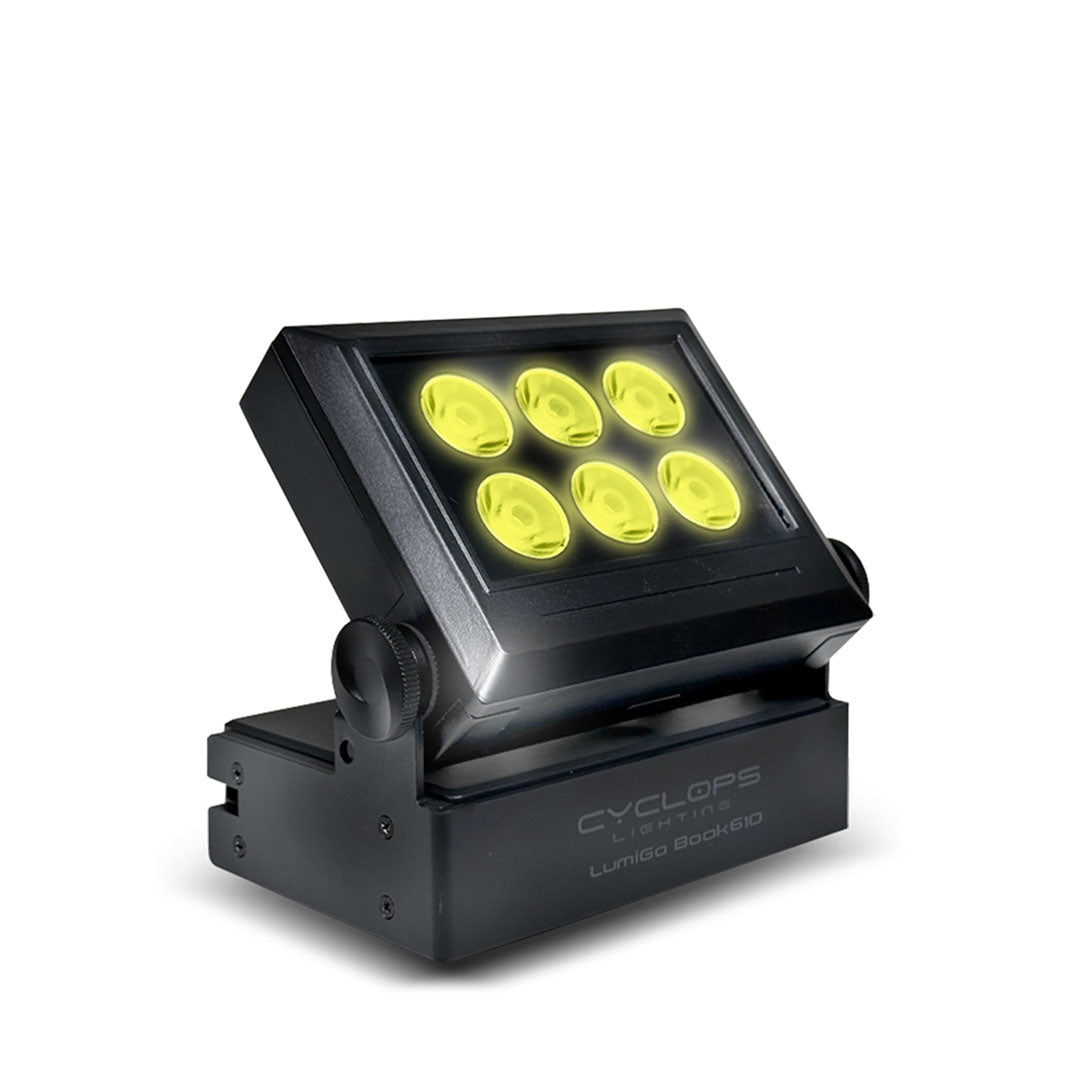

8 x LumiGo BOOK610 (LGWASH610)
8 x Magnetic Frost Filter 10°x60° (FF15-LGWASH610)
1 x  Flight Case (FC-LGWASH610)

Source

Light source:

  • 6x10W RGBW LED

Output:

  • Light output all LEDs on:1358 LM
  • Light output red:292 LM
  • Light output green:534 LM
  • Light output blue:94 LM
  • Light output white:625 LM

Illuminance:

  • Lux @ 2m:4712 LX
  • Lux @ 5m:754 LX
  • Lux @ 8m:295 LX
  • Lux @ 10m:189 LX

LED Life expectancy:

  • 50,000 hours

Optical System

  • Beam angle: 20°
  • Optional Frost filter: 15° (SKU: FF15-LGWASH610 – included in kit LGWASH610-KIT8)

Dynamic Effects

  • Dimmer: 0-100% linear adjustment
  • Four dimming curves
  • Color mixing: RGBW
  • Color temperature adjustments: 3000 to 10000K
  • Electronic Strobe: 0-20 Hz

Control & Programming

  • Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
  • Channel mode: 2, 3, 5, 8, 11, 15 channels
  • Display: LCD

Battery

  • Battery Life: Up to 19H
  • Multiple battery usage option: 16 options selection between 4H to 19H with 1 hour increments
  • Battery Boost /4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H
  • Battery charge time: 4.5H

Electrical

  • Input voltage Rating: DC 18V-20V
  • Maximum Power consumption: 53W
  • LED PWM Frequency: 600/1.2K/2.4K/4.8K/12K/18K (hz)

Physical

  • Material: Aluminum
  • IP Rating: 65
  • IK Rating: IK07
  • Operating Temperature: -20°~50°C
  • Humidity: 98%
  • Dimensions: 225 x 150 x 130.5 mm
  • Weight: 3.3 Kg
