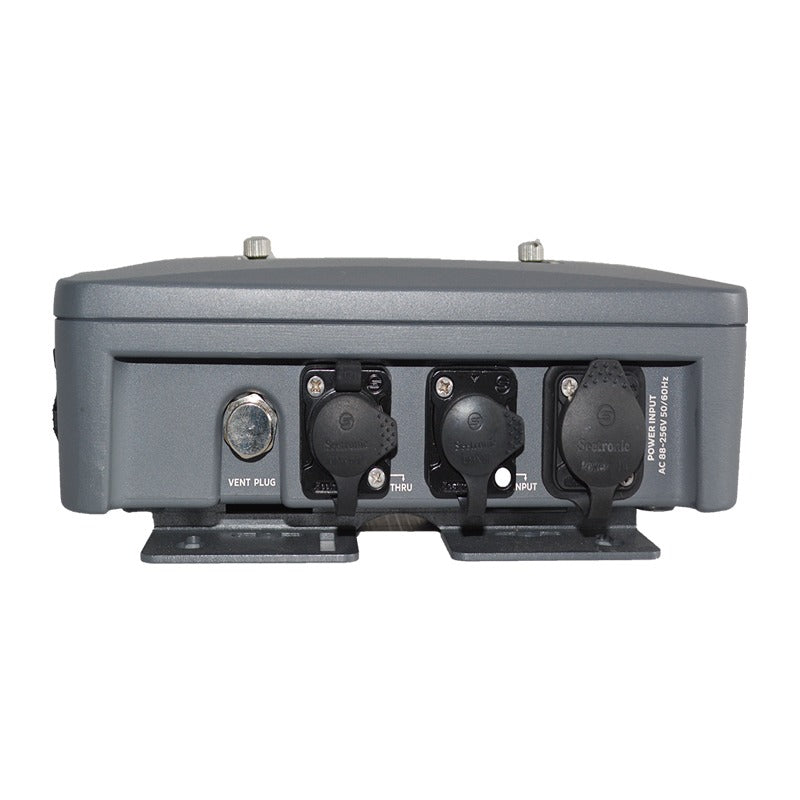

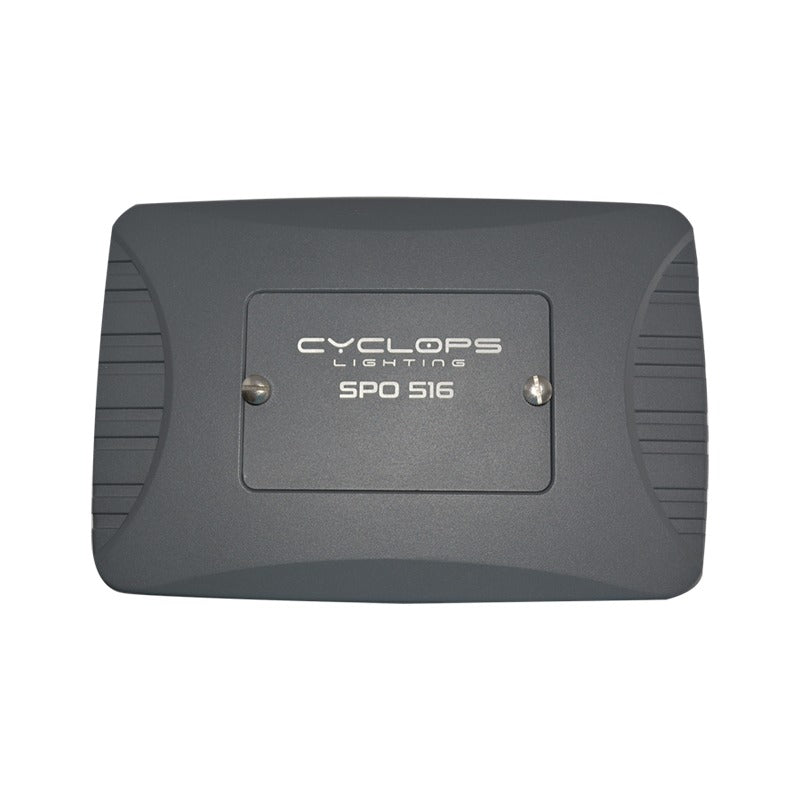

SPO 516 - 5 Pin Outdoor Weatherproof DMX Splitter

Name: SPO 516 - 5 Pin Outdoor Weatherproof DMX Splitter
Brand: Cyclops Lighting
SKU: SPO516
Price: 1301.84 AED
Availability: InStock

Dhs.1,301.84

Brand: Cyclops Lighting

Categories: DMX Splitters

SKU: SPO516

SPO 516 is a die-casted Aluminum outdoor DMX Splitter. It splits, boosts and distributes the DMX signal through 6 optically isolated outputs, preventing any signal distortions or disturbance. Each port is equipped with a waterproof cap. It is designed to be installed outdoor for a convenient data distribution structure for fixed installations and events.

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

SPO 516 - 5 Pin Outdoor Weatherproof DMX Splitter

Dhs.1,301.84

Technical Specifications

Description

Split and boost the DMX signal
Power and data optically isolated DMX ports
High voltage protection
High brightness Power and DMX Status LED indicators
Weatherproof and UV resistant
Waterproof cover on each port

DMX Pass-Thru
Termination on/off switch
Power and Data LED indicators

Data inputs: 1 x 5 pin XLR
Data thru: 1 x 5 pin XLR
Data outputs: 6 x 5 pin XLR
Power input: IP Power Connector

Input Voltage: AC 88-256V 50/60 Hz

Dimensions: 234 x 166 x 84 mm
Net Weight: 2.2 Kg
Color: Grey
