Technical Specifications

Description

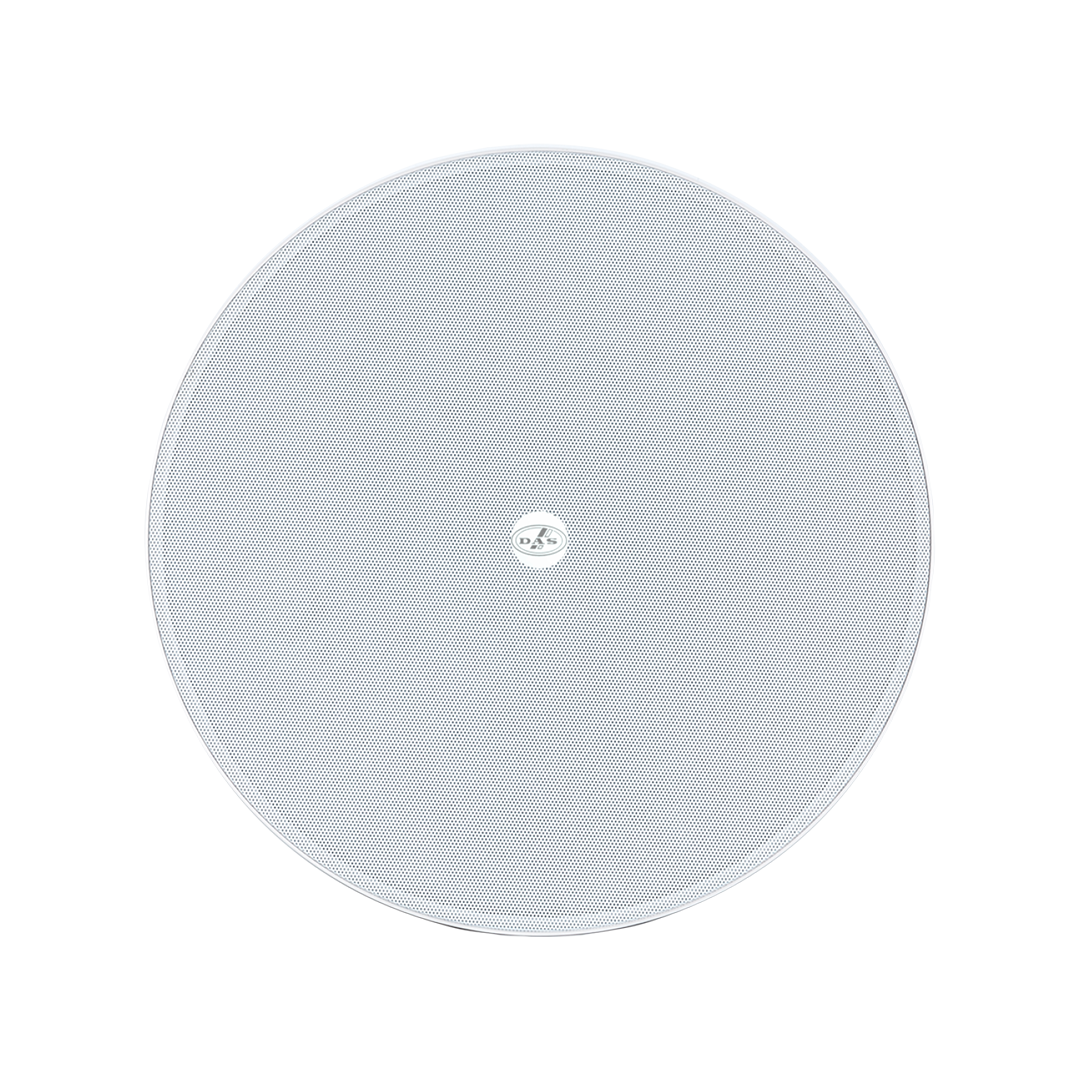

The DECO-6 is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

  • Frequency Range (-10 dB): 60 Hz – 20 kHz
  • Nominal Impedance: 8 ohms
  • Conical Coverage: 95º
  • RMS Power Handling: 40 W
  • Peak Power Handling: 160 W
  • On-axis Sensitivity (1 W / 1 m): 90 dB SPL
  • Maximum Peak SPL at 1 m: 112 dB
  • Recommended Amplifiers:
  • INTEGRAL-A402
  • INTEGRAL-A404
  • INTEGRAL-A1002
  • INTEGRAL-A1004
  • INTEGRAL-A1602
  • INTEGRAL-A1604
  • INTEGRAL-MA1004
  • INTEGRAL-MA1604
  • Recommended Processors:
  • INTEGRAL-M88
  • INTEGRAL-MA1604
  • INTEGRAL-MA1004
  • Audio Input Connector: Spring Terminals
  • Audio Output Connector: Spring Terminals
  • Enclosure Geometry: Round
  • Color: White
  • Cut-Out Diameter: 210 mm (8.3 in)
  • Dimensions ( H x W x D ):
  • 230 x 230 x 80 mm | 9.0 x 9.0 x 3.2 in
  • Net Weight:1.2 kg (2.6 lb)
  • Carton Dimensions ( H x W x D ): 270 x 250 x 390 mm | 10.6 x 9.8 x 15.4 inShipping Weight: 1.4 kg (3.0 lb)
