Technical Specifications

Description

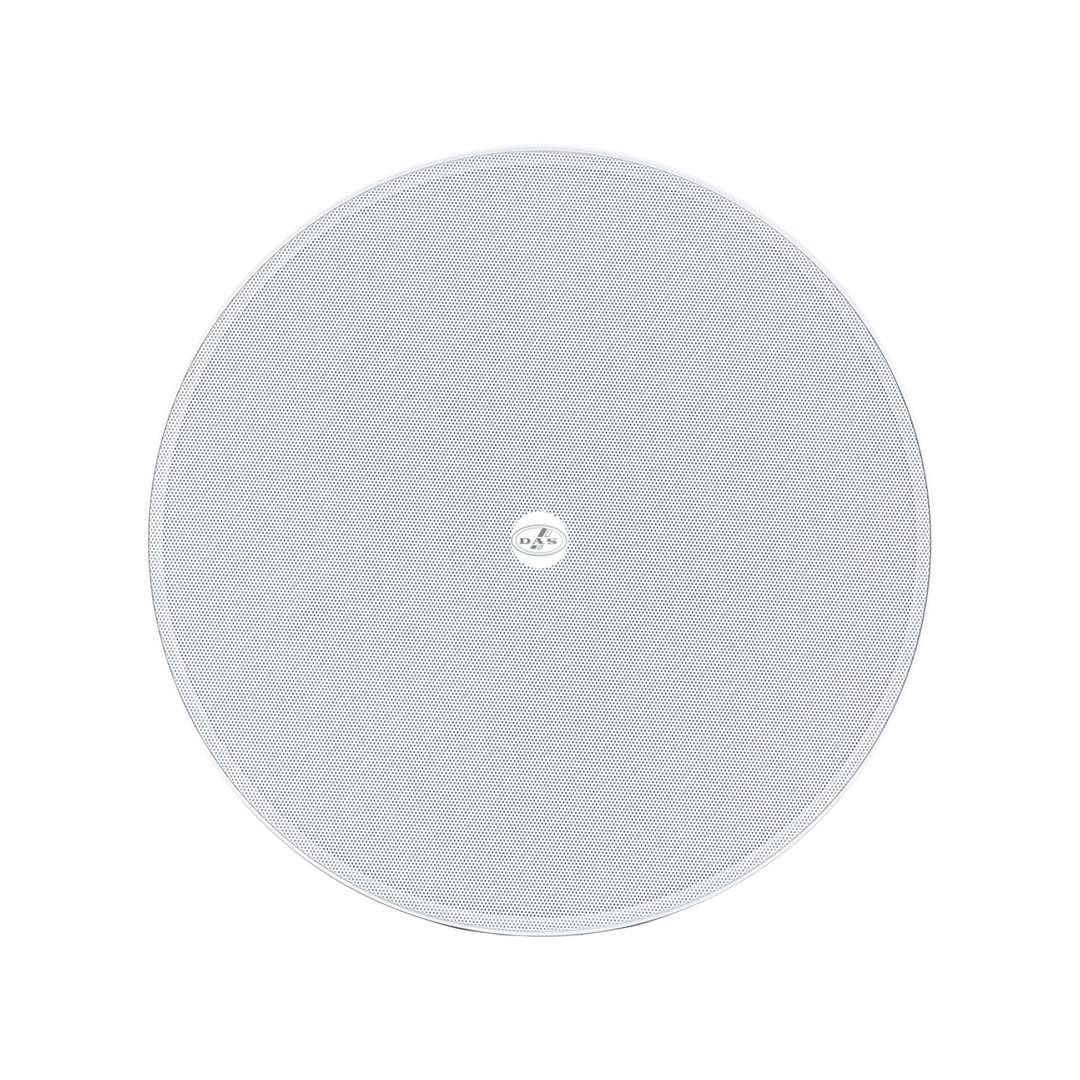

The DECO-8 is a wide-range passive two-way ceiling-mounted acoustic system featuring an 8” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

Performance

  • Frequency Range (-10 dB): 50 Hz – 20 kHz
  • Nominal Impedance: 8 ohms
  • Conical Coverage: 90º
  • RMS Power Handling: 60 W
  • Peak Power Handling: 240 W
  • On-axis Sensitivity (1 W / 1 m): 90 dB SPL
  • Maximum Peak SPL at 1 m: 114 dB

Recommended Electronics

  • Recommended Amplifiers:
  • INTEGRAL-A402
  • INTEGRAL-A404
  • INTEGRAL-A1002
  • INTEGRAL-A1004
  • INTEGRAL-A1602
  • INTEGRAL-A1604
  • INTEGRAL-MA1004
  • INTEGRAL-MA1604
  • Recommended Processors:
  • INTEGRAL-M88
  • INTEGRAL-MA1604
  • INTEGRAL-MA1004

Connectors

  • Audio Input Connector: Spring Terminals
  • Audio Output Connector: Spring Terminals
  • Enclosure Geometry: Round
  • Color: White
  • Cut-Out Diameter: 250 mm (9.9 in)
  • Dimensions ( H x W x D ):
  • 285 x 285 x 115 mm | 11.3 x 11.3 x 4.6 in
  • Net Weight:1.6 kg (3.5 lb)
  • Carton Dimensions ( H x W x D ):310 x 300 x 450 mm | 12.2 x 11.8 x 17.7 in
  • Shipping Weight:1.8 kg (4.0 lb)
