Remote control and monitoring are possible via ALMA™ software using IP technology,or alternatively, it can be managed using external controllers through OSC messages.Direct unit control is facilitated through a 1.54″ OLED display with control buttons forbasic parameters. These include input and output levels, preset recalls, mute, sourceselection, and link manager functions.

The device houses a complete signal processing matrix, offering gain, delay, routing,equalization, and limiters adjustment options. Its internal memory can store over 100global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers.

External control is further simplified through a General-Purpose Input / Output (GPIO)connector, providing an external 3V3 volt, GND signal, and 8 configurable pins viaALMA™software.

Key Features:

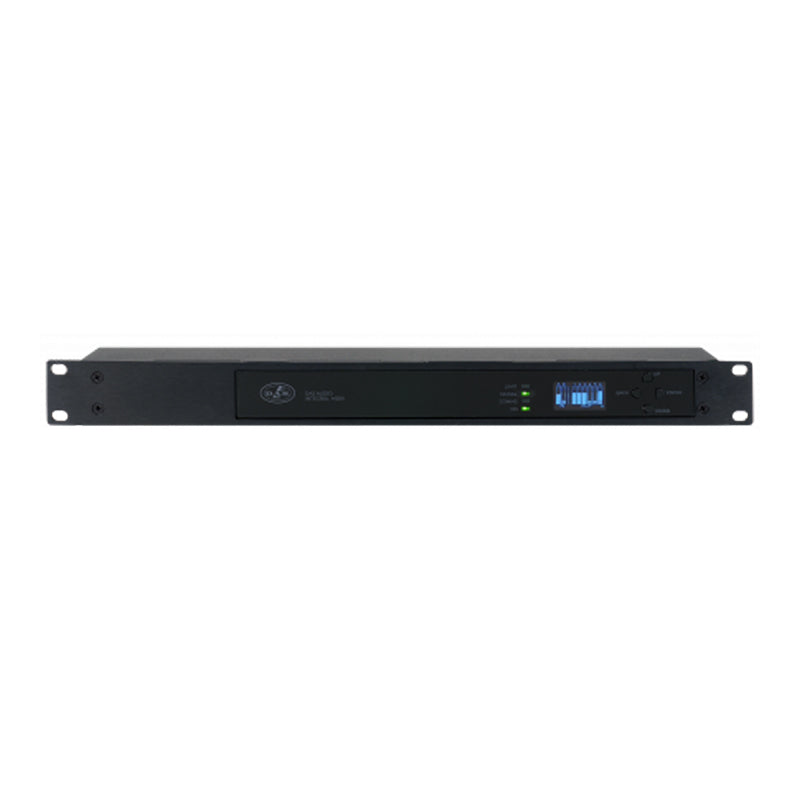

• 2 Input x 6 Output, 1U Rack-Mount advanced DSP
• Remote & Direct Control: 1.54″ OLED, ALMA™ software via IP.
• 100+ global presets: 200+ output channel presets.
• GPIO External Control with 8 configurable pins.
• 24 Bit @ 48 kHz Converters: 118 dBA Dynamic Range.
• Advanced EQ & Filters: Including up to 48 dB/oct settings.
• Maximum Input / Output level +21dBu

Applications:

• Retail Stores
• Bars, clubs and restaurants
• Fitness Centers, hotels, schools

Technical Specifications:

Electronics and Audio

• Frequency Response: 20 Hz-30 kHz (+0 -0.5 dB)
• Max Input Level: +22 dBu
• Max. Output Level: +22 dBu
• Controls: Power On/Off, Navigation Buttons
• Sampling Rate: 48 kHz
• Display: OLED 1.54″
• Cooling: Side-Right-to-Left
• LED Indicators: On, Comms, Signal, Limit

Power

• AC Input Connector: IEC 15A
• Power Supply: Universal Mains Switch Mode
• Operating Range: 90 – 250 VAC

DSP

• Analog Input Channels: 2
• Analog Output Channels: 6
• AD Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
• DA Converters: 24 Bit @ 48 kHz 118 dBA Dynamic Range
• Internal Precision: 32 Bit, 64 Bits Double Precission
• Latency: 1 ms
• Delay: 50ms per input / 135ms per output
• Equalizer: Bell, Lo/Hi-Shelving, Hos
• Crossover: Linkwitz-Riley, Butterworth, Bessel
• High and Low Pass Filters: Up to 48 dB/oct
• Limiters: RMS

Dimensions-Weight

• Dimensions ( H x W x D ): 44 x 483 x 210 mm | 1,7 x 19,0 x 8,3 in
• Net Weight: 2,5 kg ( 5,5 lb )

Shipping

• Carton Dimensions ( H x W x D ): 440 x 400 x 60 mm | 17,3 x 15,7 x 2,4 in
• Shipping Weight: 4,0 kg ( 8,8 lb )
