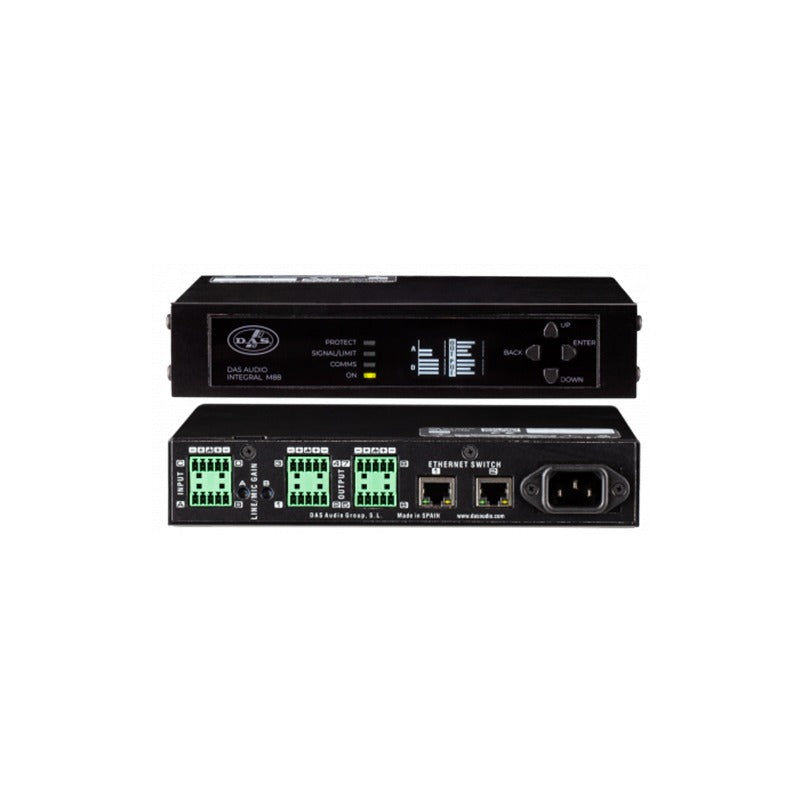

Priority capabilities, full matrix and routing options make this unit essential as the ”brain” of any type of installation. The internal memory resources allow to store more than 100 “global presets” and more than 200 “output channel presets” (speaker presets). A bank of output channel presets with specific processing parameters for all DAS Audio speakers is included allowing the users to configure each channel independently. For instance, it would be possible to recall for output 1 the preset of Q-23T, for output 2 the preset of Arco-4T, for output 3 the preset of Q-10 etc.

The unit includes an OLED display (1.54”) with control knobs for intuitive and easy navigation as well meters to monitor signal levels. Basic parameters can be accessible via front panel control knobs; input and output levels, global preset recall, output channel preset recall, mute, source selection, link manager functions, priority enabling etc.

Two of the analogue inputs can be switched to microphone with 12V Phantom power if needed.The unit also Integrates an Ethernet Switch for daisy-chain connections. No external switch is needed.WiFi and Bluetooth are available for direct wireless operation.

Features

• 8 CH Matrix with high-performance integrated DSP
• 4 independent analog inputs
• 2 inputs with selectable MIC/Line option and phantom
• 8 Analog output channels
• 4 x 4 CH DANTE digital audio
• ALMA management control and monitoring
• Priority assignment
• Input and output flexible routing

Applications

• Retail Stores
• Bars, clubs and restaurants
• Fitness Centers, hotels, schools
