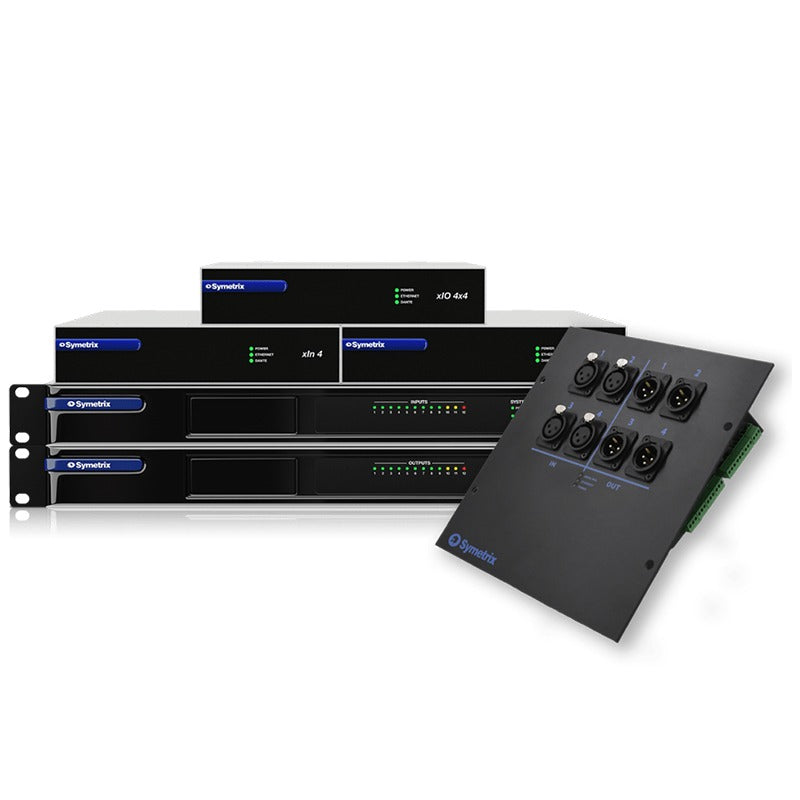

X10 Dante Audio Expanders

Expand Analog I/O Using Dante.For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.

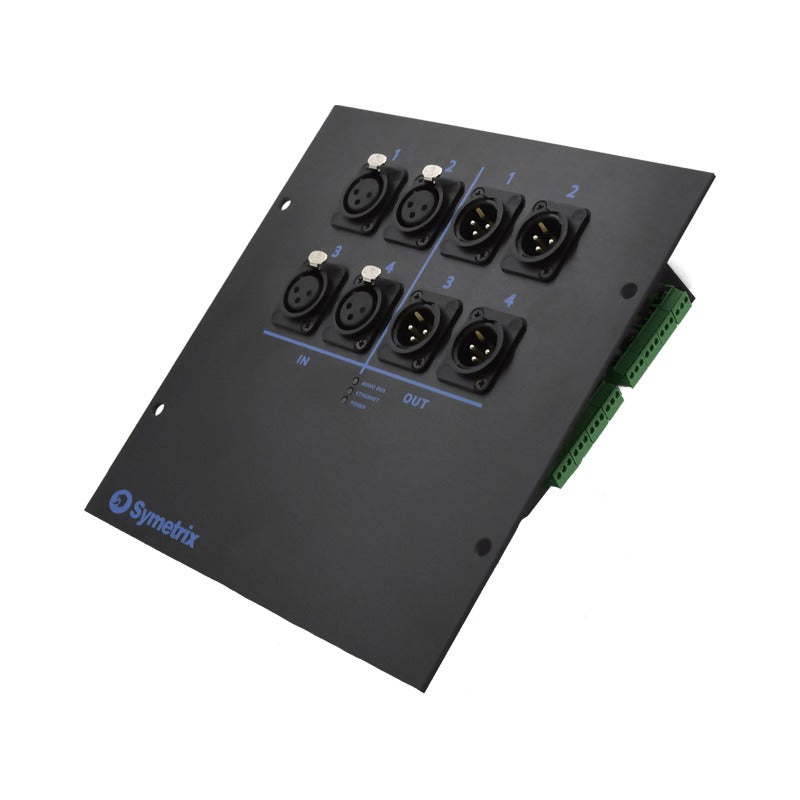

xIO Stage 4×4

  • Premium 4 IN x 4 OUT Dante digital snake.
  • Neutrik metal body DL series XLR connectors.
  • 14 gauge A1008 steel construction.
  • Easy Installation
  • Wall or floor mounted.
  • Easily mounts in 8″ x 8″ x 4″ NEMA Junction Box.

xIn 4 | xOut 4 | xIO 4×4

  • 1/2 Rack Form Factor.
  • PoE – injectors included.

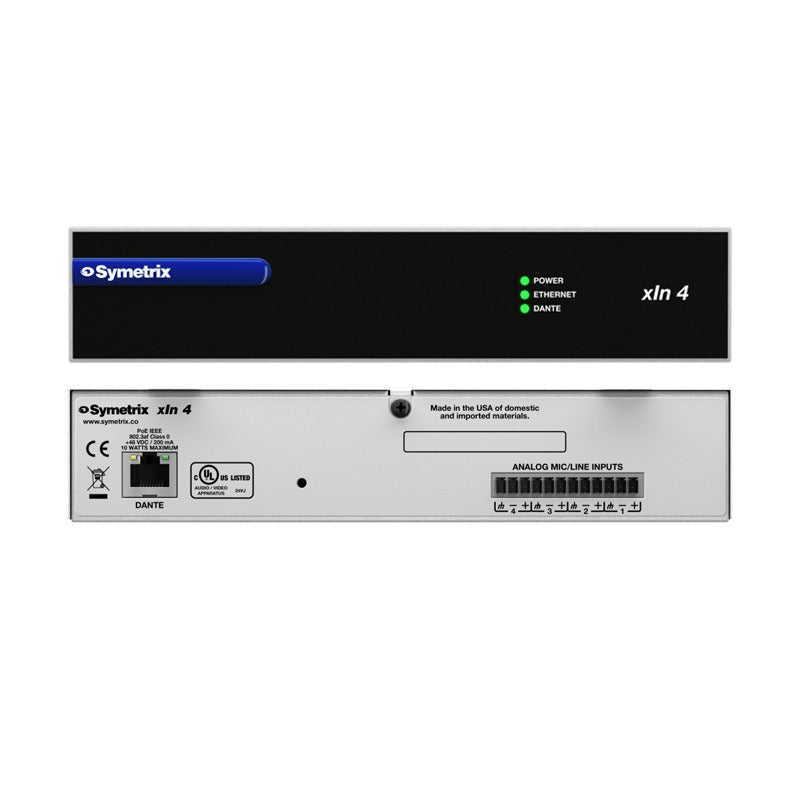

  • xIn 4– 4 analog mic/line inputs.

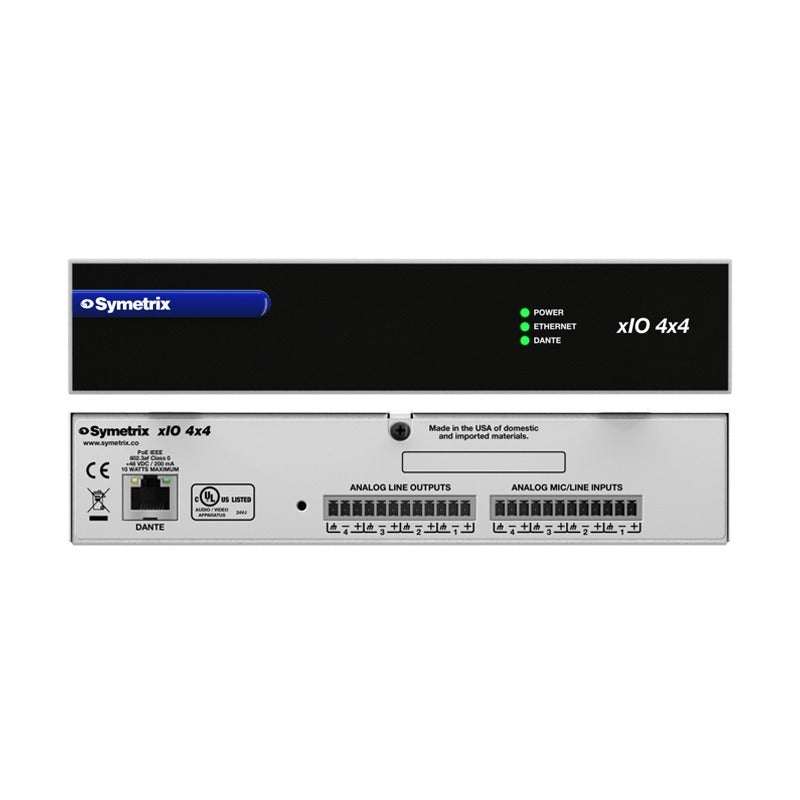

  • xIO 4×4– 4 analog mic/line inputs + 4 analog outputs.

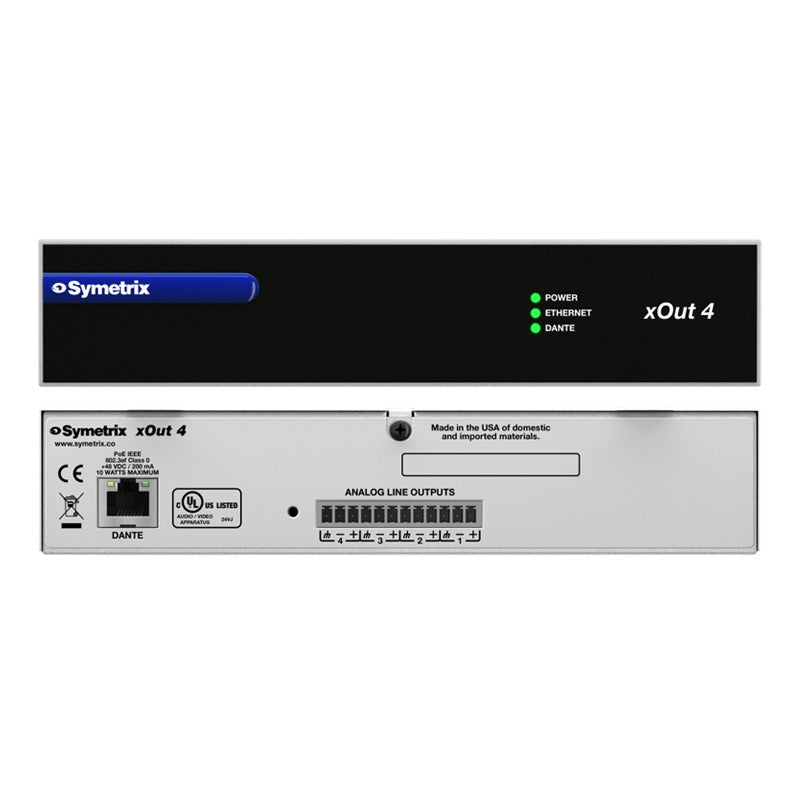

  • xOut 4– 4 analog outputs.
  • Optional rack and surface mounting kits sold separately.

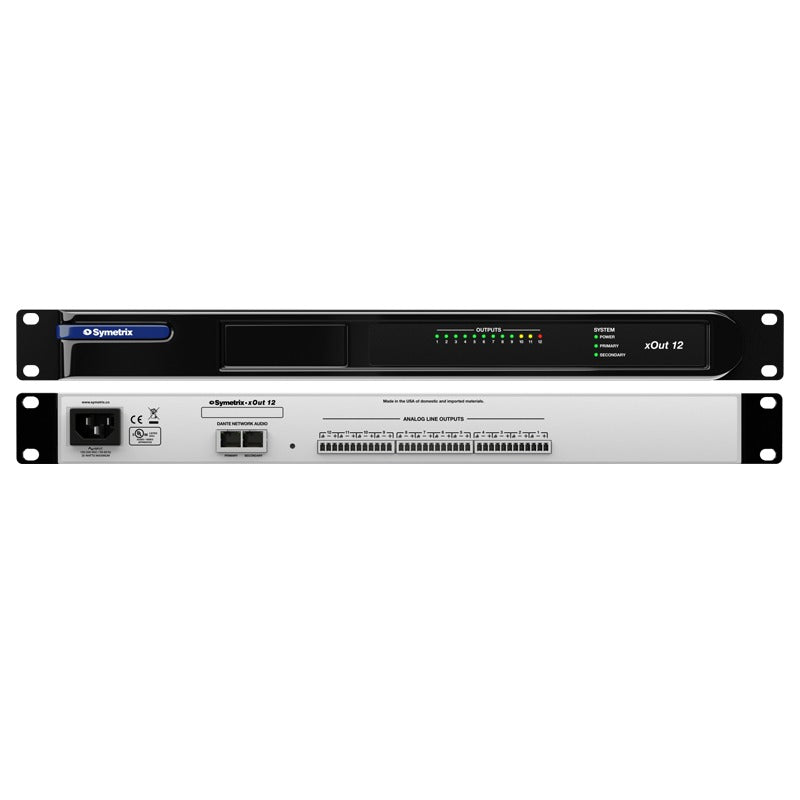

xIn 12 | xOut 12

  • Built-in network switches. Direct connections to Radius, Prism and Edge DSP’s.
  • Internal power supplies.
  • xIn 12– 12 analog mic/line inputs.
  • xOut 12– 12 analog mic/line outputs.
