Technical Specifications

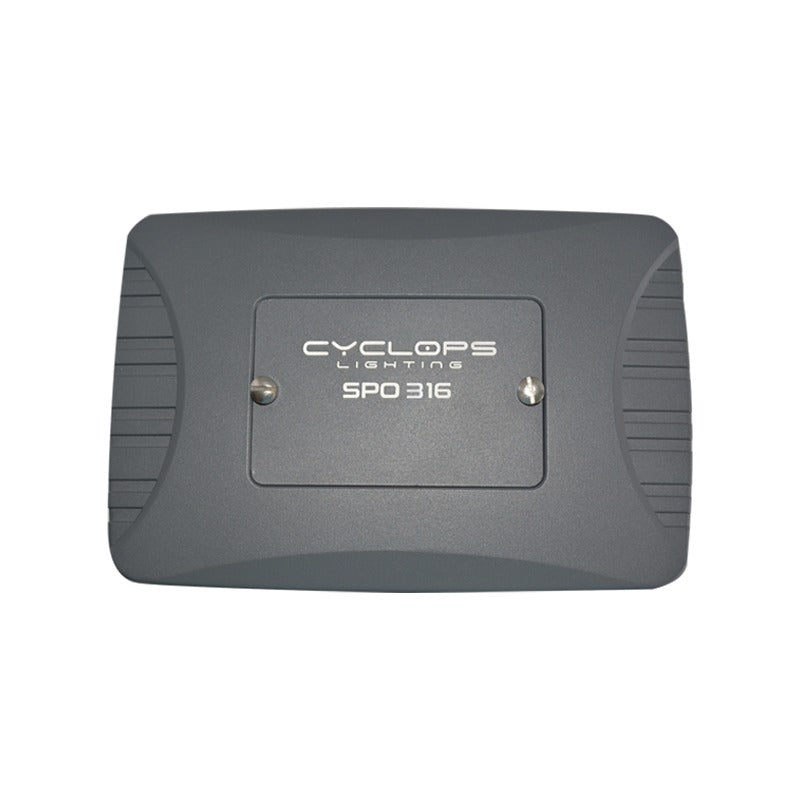

Description
  • Split and boost the DMX signal
  • Power and data optically isolated DMX ports
  • High voltage protection
  • High brightness Power and DMX Status LED indicators
  • Weatherproof and UV resistant
  • Waterproof cover on each port
  • DMX Pass-Thru
  • Termination on/off switch
  • Power and Data LED indicators

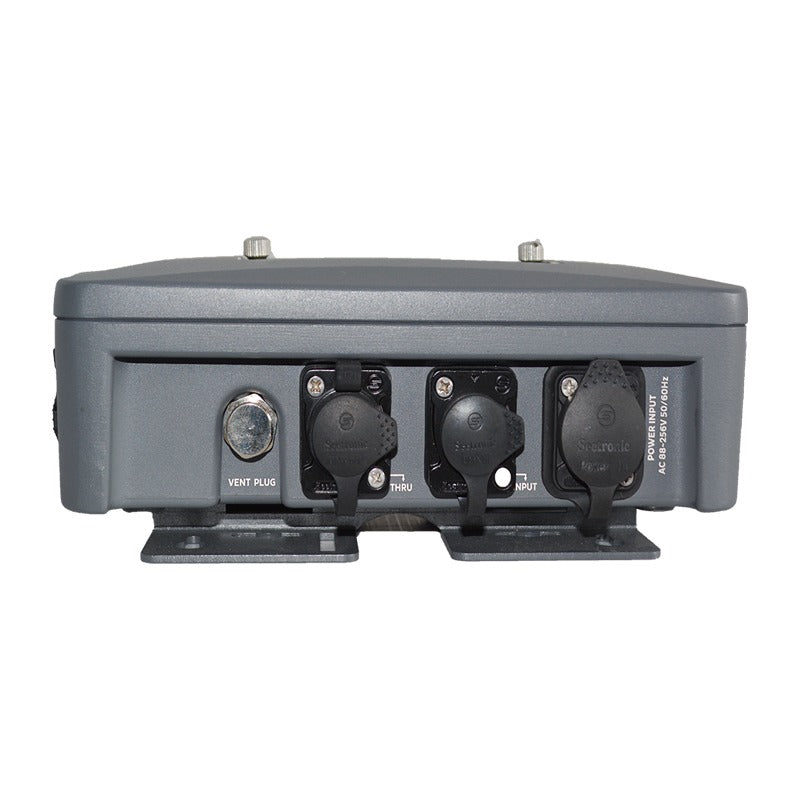

  • Data inputs: 1 x 3 pin XLR
  • Data thru: 1 x 3 pin XLR
  • Data outputs: 6 x 3 pin XLR
  • Power input: IP Power Connector
  • Input Voltage: AC 88-256V 50/60 Hz
  • Dimensions: 234 x 166 x 84 mm
  • Net Weight: 2.2 Kg
  • Color: Grey
